IV. System Installation (continued)
G. Source Container Connections
Source Containers will be installed to the machine to recover and recycle the agent
from the containers. The instructions presented in this section should be
accomplished only when ready to perform the Initial Start-Up procedure section-
V.B. of this document or when ready to begin System Operation as described in
section-V.D. of this document.
The Manual Inlet Valve port and Inlet Evacuation Valve port of the machine are ¼” x
45 SAE Male Flare fittings. High pressure rated refrigeration service hoses of the
appropriate length may be used to connect the AGENT source container to the machine.

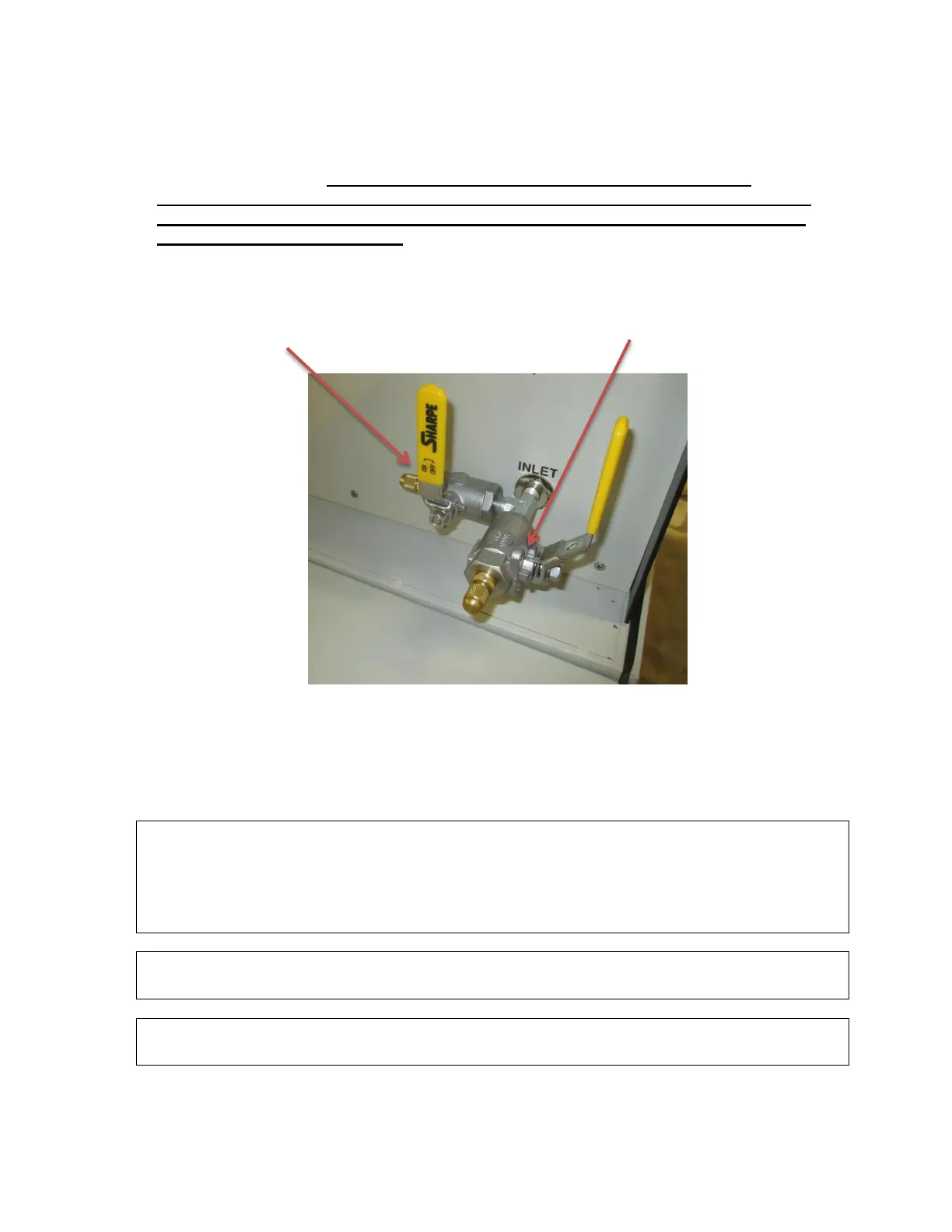

Inlet Evacuation Valve and Port Manual Inlet Valve and Port
The inlet valve plumbing to the source container must be leak tested before
operating the machine to guard against Agent loss. Leaks in the inlet connections will also
allow ambient air to enter the machine during the vapor recovery cycle.
The source container shall be fitted with a shut-off valve in the event that the source
container must be disconnected from the Inlet Valve of the machine before processing
has been completed.
WARNING! A method must be employed to restrain Agent source containers against
recoil when safety anti-recoil fittings are removed from the containers.
Uncontrolled discharge of pressurized containers will provide high
velocity container recoil resulting in Property Damage, Personal Injury or
Death.
WARNING! Do Not Connect Agent or Nitrogen in excess of 600 psig to the Inlet Port
of the machine. Damage to the Machine May Result.
CAUTION: Failure to leak test the plumbing connections could result in total loss of
Agent.
