IV. System Installation
The user is urged to carefully study the following installation procedures and fully
understand them BEFORE attempting installation of the recovery/recycling system. Refer

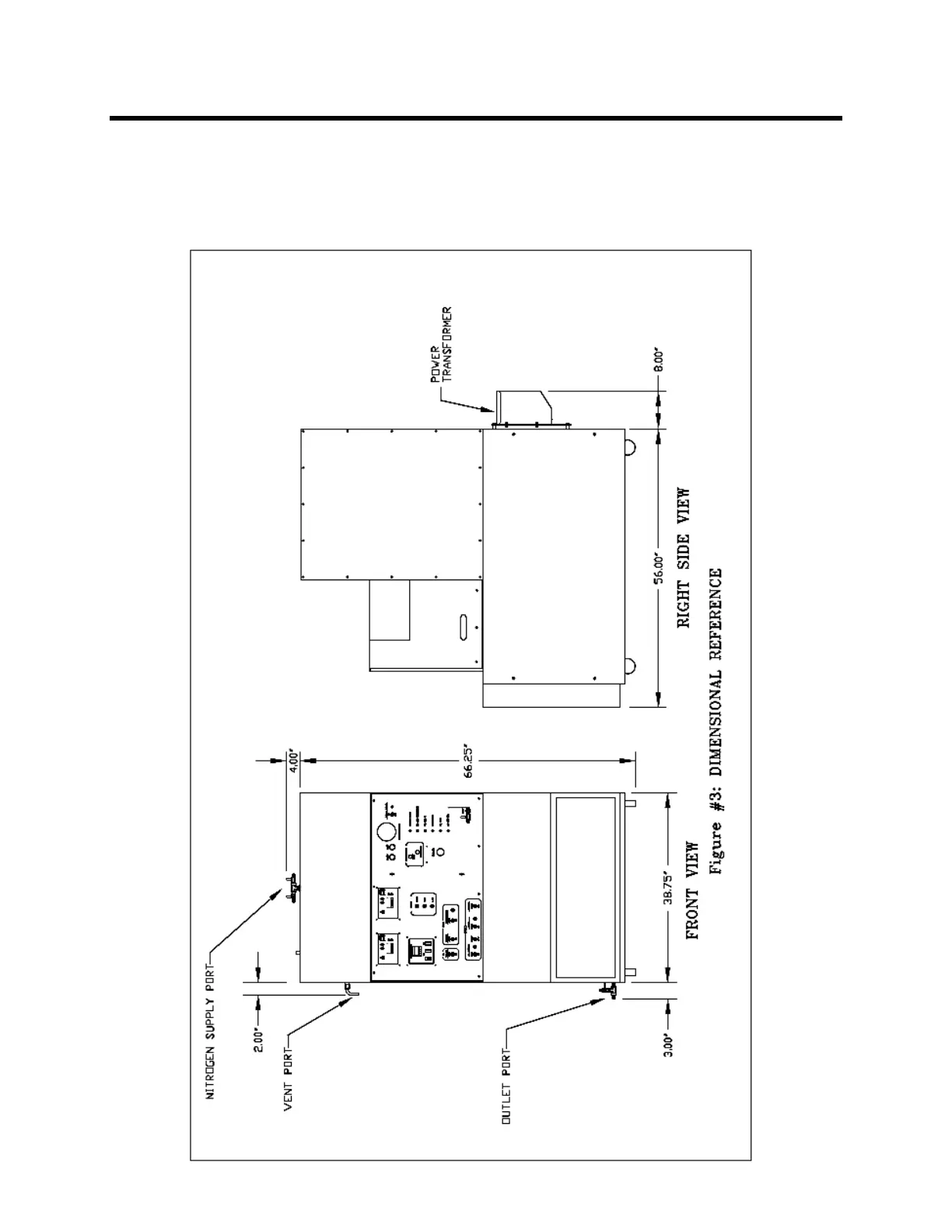

to figure-3 below for the physical dimensions of the machine. Clearance of 3-feet is
recommended on all sides of the machine.
Weight: 1000 US pounds (453.6 Kg)
