VII. System Maintenance Procedures (continued)
F. Compressor Oil Maintenance
The vapor compressor is a hermetically sealed reciprocating compressor that must
contain the proper oil charge for operation. The machine is equipped with a filter that will
capture entrained oil and return the oil back to the compressor housing so that the

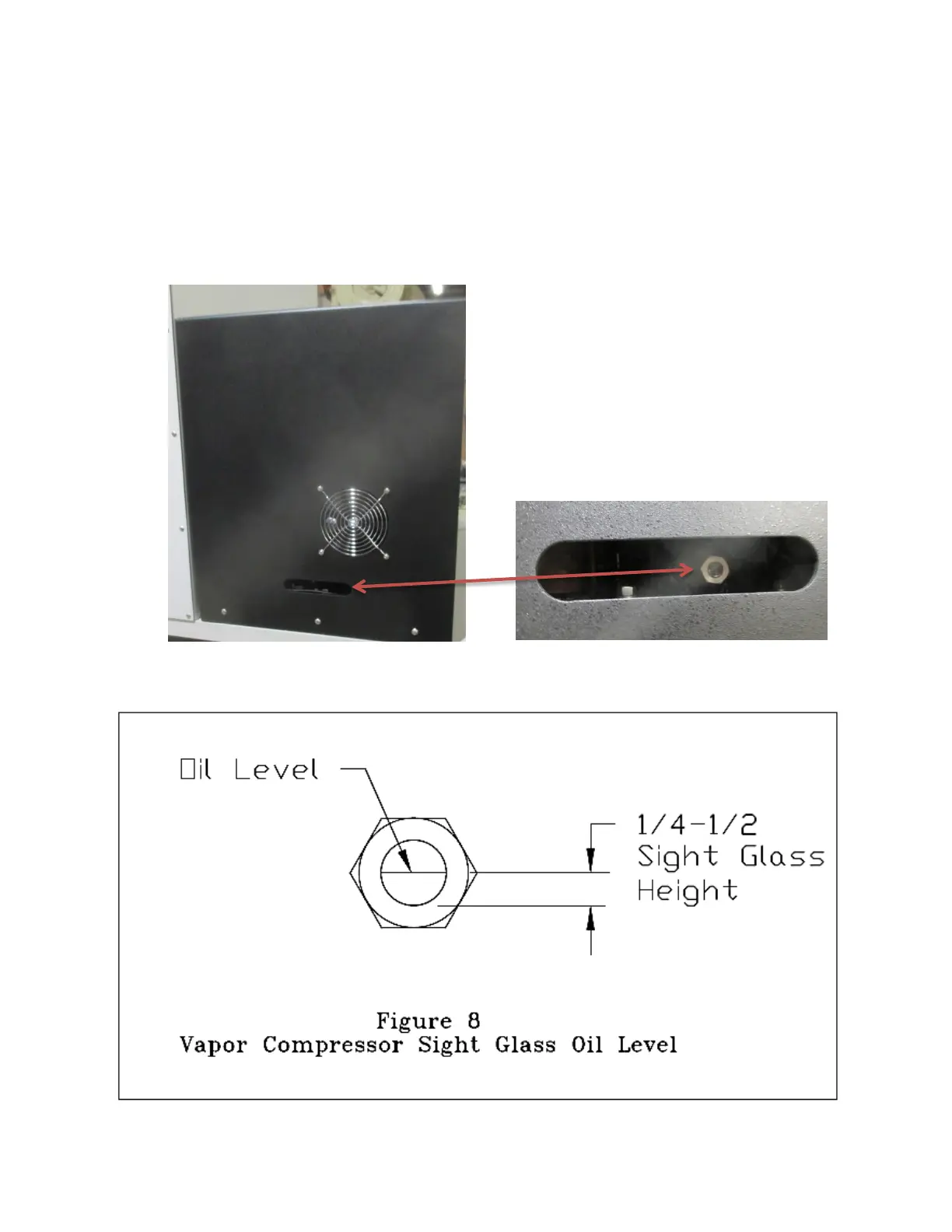

compressor will not lose excessive amounts of oil during operation. Figure-8 will depict the
correct oil fill level as viewed through the oil level sight glass on the compressor. The sight
glass may be viewed using an inspection light through the large slot on the bottom-left
side of the control panel black hood.
The oil level is correct when the sight glass is from 1/4 to 1/2 full.
