Neutronics H1301 - Process Temperature Controller Adjustment and Calibration

Model H1301 Recovery and Recycling System
Installation, Operation and Maintenance Manual
Revision-L September, 2019
Page 78 of 105
VII. System Maintenance Procedures (continued)
N. Process Temperature Controller Adjustment and Calibration
The temperature in the process tank is monitored by a system consisting of two main
components. The RTD Probe is the temperature-sensing device for the process tank. The
Process Temperature Controller displays the tank temperature, directly controls the
front panel System Ready Lamp via alarm #1 output, and communicates to the PLC via
alarm #2 output. The calibration of the system is critical for the correct operation of the

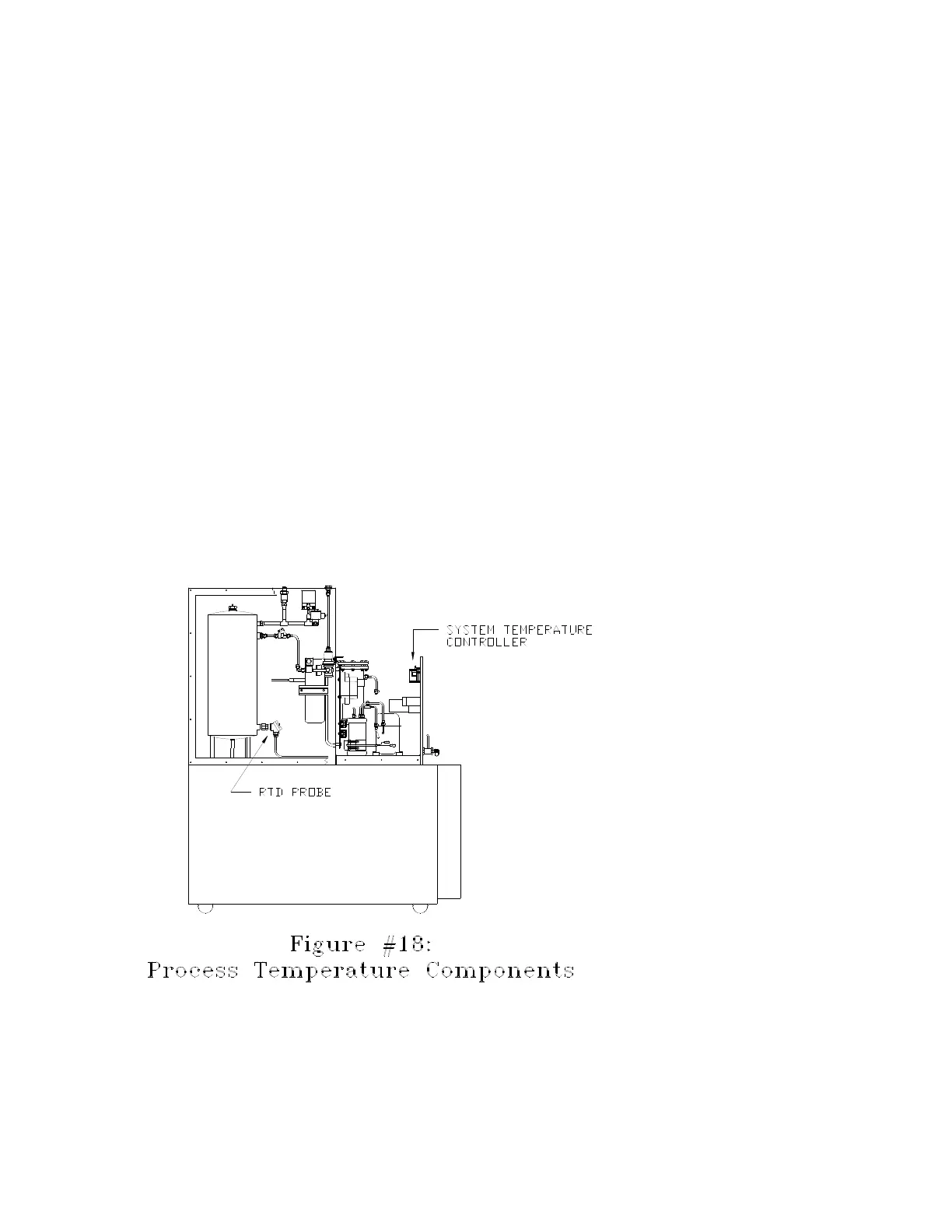

machine. Refer to figure-18 for the location of these components.
Resistance Temperature Detector (RTD) part number A1-16-4000-03-0
Specifications:
 Range: -200C to 500C
 Output: 100 +/- 0.1 ohms @32F, 0.217 ohms per F positive temperature coefficient
 Accuracy: +/-0.3 ohms (+/-1.4F)
Process Temperature Controller part number 7-06-1400-00-0
Specifications:
 Input Power: 104-130 VAC 50/60 Hz
 Two Adjustable Relay Contact Alarm Outputs
 -2.0 to 2.0 VDC Signal Output corresponding to –200F to 200F
 3-1/2 Digit LED Display
