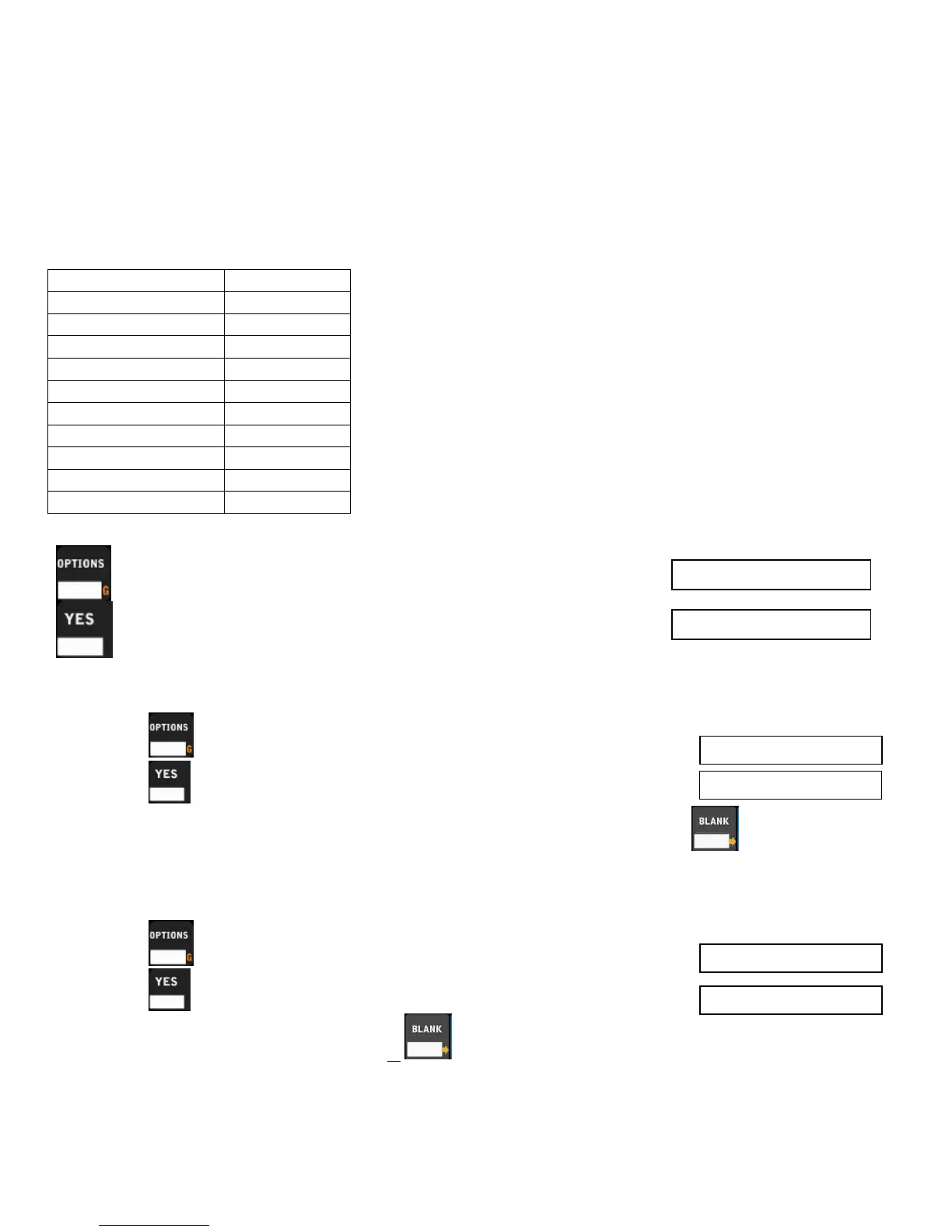

HORN SETTINGS
Each horn type can be changed from a selection of 9 different tones. The horn output volume can be changed as
well. This is done within the horn settings option. (Only available on select models)
NOTE: Horn settings may not affect scoreboards that are not in the outdoor x6xx series.
Tones can be described as:
Tone Setting Description
Tone = 0, or blank Mute
Tone = 1 Yelp
Tone = 2 Buzzer
Tone = 3 Car Horn
Tone = 4 Fog Horn
Tone = 5
156 Hz
Tone = 6
270 Hz
Tone = 7
285 Hz
Tone = 8
303 Hz
Tone = 9
385 Hz
Press OPTIONS until the MPCW-7 display reads
To enter the Horn Settings menu
Horn Volume
Adjusting the horn volume affects all 5 different horns. To adjust the horn volume:
1. Press if not already on the horn volume screen until the display shows
2. Press the MPCW-7 will display
3. Press the desired volume number key from 0 (muted) to 9 (max), or to disable the horn press
a. Volume is then set.
EOP Horn Tone
This setting will change the EOP (end of period) tone and main stop time tone. To change the tone:
1. Press until the display shows
2. Press the MPCW-7 will display
3. Press the desired horn tone key from 0 to 9; or to disable the EOP horn
Horn Settings >>
Volume: #
Volume: #
Volume: #
◄
EOP
Tone
: #
EOP Tone: #
◄
