Modem Web Interface
User Manual MDM3X00
Using the Point&Play Tool
The Point&Play tool helps you to point the antenna correctly. During the pointing procedure, the
Point&Play tool can produce various sounds, each having a specific meaning described below.

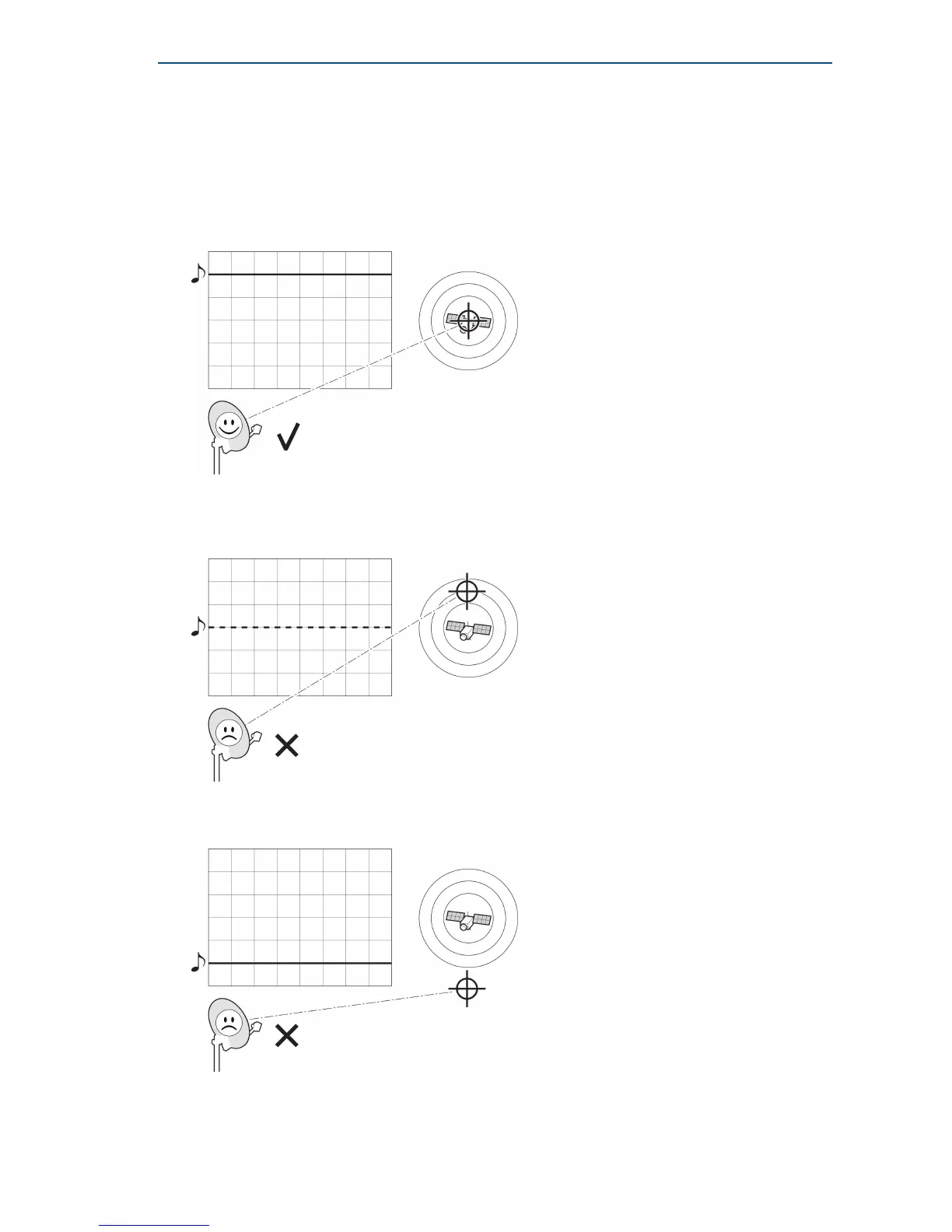

High uninterrupted tone (correct tone)
The antenna points to the correct satellite and is receiving the strongest signal. Some fine-pointing
might still be required to find the optimal position of the antenna (highest tone within the high
uninterrupted tone range).
Medium or high interrupted tone
The antenna points to the correct satellite but does not receive the strongest signal so far. The
pointing procedure must be continued until an uninterrupted high tone is perceived.
Low uninterrupted tone
The antenna points to a wrong satellite or is not pointing to a satellite.
