Newtec MDM3100 - 3 Modem Description; 3.1 Modem Front Panel

R3.1_v1.2
3/76
Modem Description
User Manual MDM3X00
3 Modem Description

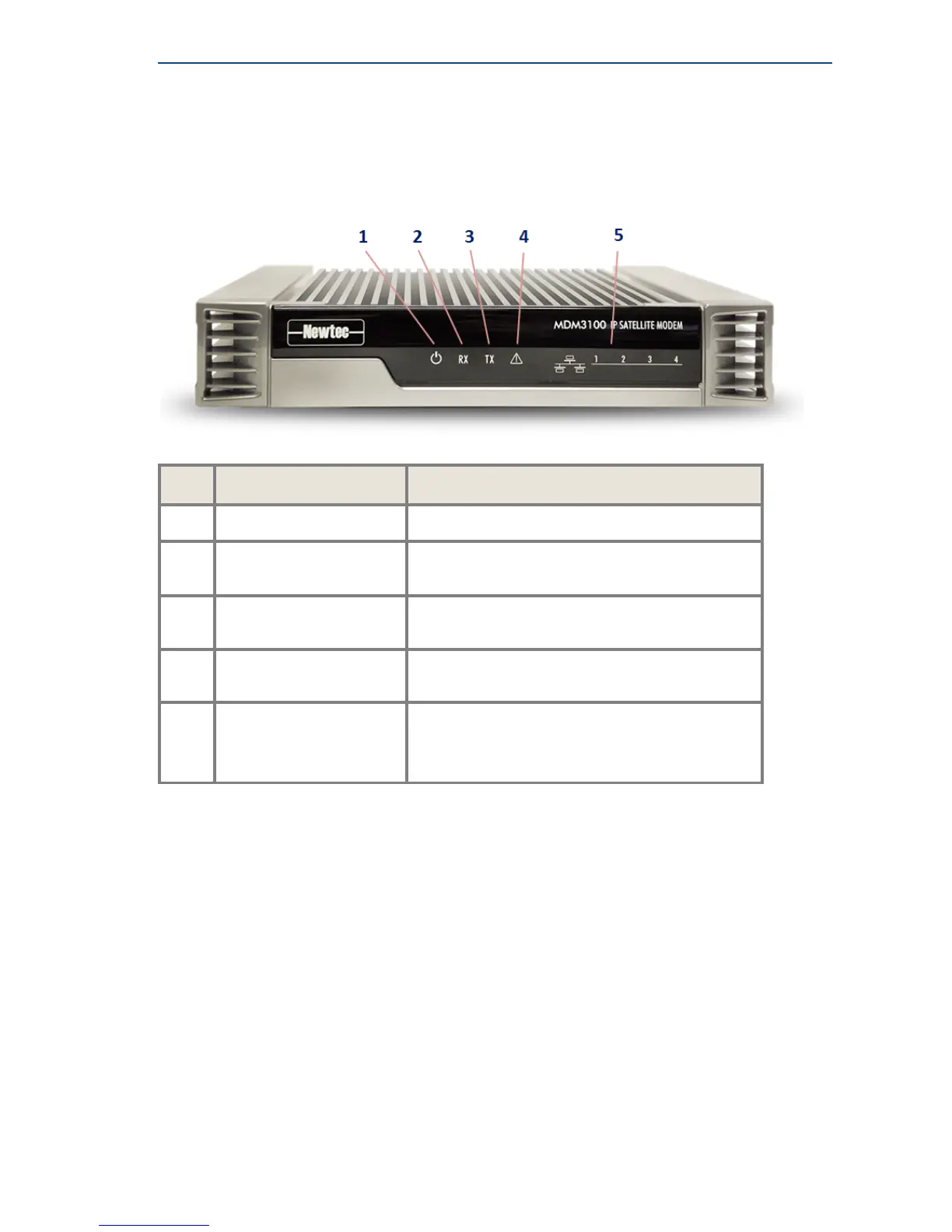

3.1 Modem Front Panel
Nr What Description
1
Power LED Blue continuous - when powered up.
2
RX indicator LED Blue continuous - forward satellite signaling
receiving.
3
TX indicator LED Blue blinking - traffic transmitting via the satellite
link.
4
Warning LED Yellow continuous - when the terminal is not
logged on to the satellite network.
5
LAN indicator LEDs • Blue continuous - Link layer status.
• Blue blinking - Ethernet frames are received or
transmitted.
