GEO S12 HARDWARE SETUP PROCEDURE Page 65/112

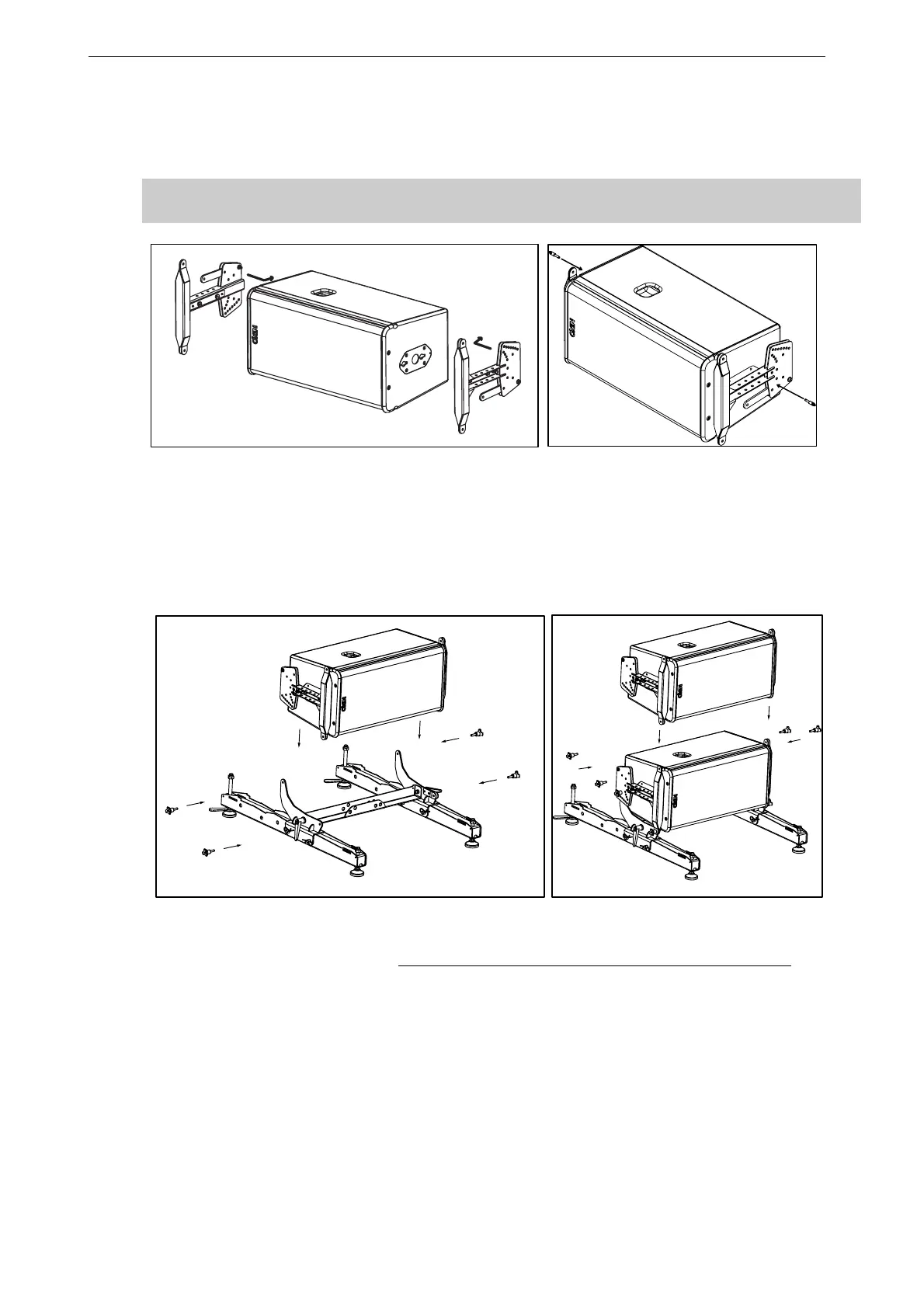

• Insert GEOS12-XBOW-V2 into connecting plates of both sides GEO S12s;
• Lock safety pins into GEO S12s connecting plate;
IMPORTANT
Ensure that safety pins are properly locked into GEO S12s connecting panels.
• Connect bottom GEO S12 to GEO S12 Ground stacking device with 4 8x20 quick release pins;
• Connect second Geo S12 with X-Bow front articulation holes and rear link bars and ensure quick
release pins are properly locked;
• Repeat above steps for subsequent GEO S12’s
• Once the assembly is completed, rotate rear or front GEO S12 ground stack device adjustable
legs to definitive tilt angle, ensuring that +/-10° is never exceeded on bottom GEO S12.
