Scene
4.1 SCENE MODE
GB
Press SCENE key to activate SCENE function (Fig. 1)
The SCENE key led will light up to indicate the activation of this
function, and the display changes as shown in (Fig. 2)
The graphic display indicates the scene (
hhiigghhlliigghhtteedd
) currently active
(Fig. 2) if an empty scene is selected, on the display appears
“
FFRREEEE
SSCCEENNEE
”.
THIS FUNCTION ALLOWS TO SEE ONE OF THE 48 SCENES
OF THE ACTIVE
PROGRAM
, CHANGE THE PARAMETERS AND EDITING.
Press one of the 1÷12 keys to select the scene.
Pushes it again, the scene puts on out his end value.
For scenes 13÷24/25÷36/37÷48 use the
PPAAGGEE
key
Note: Keep Master Dimmer Faders to the maximum (see par 6.11)
Function Keys see par 4.2

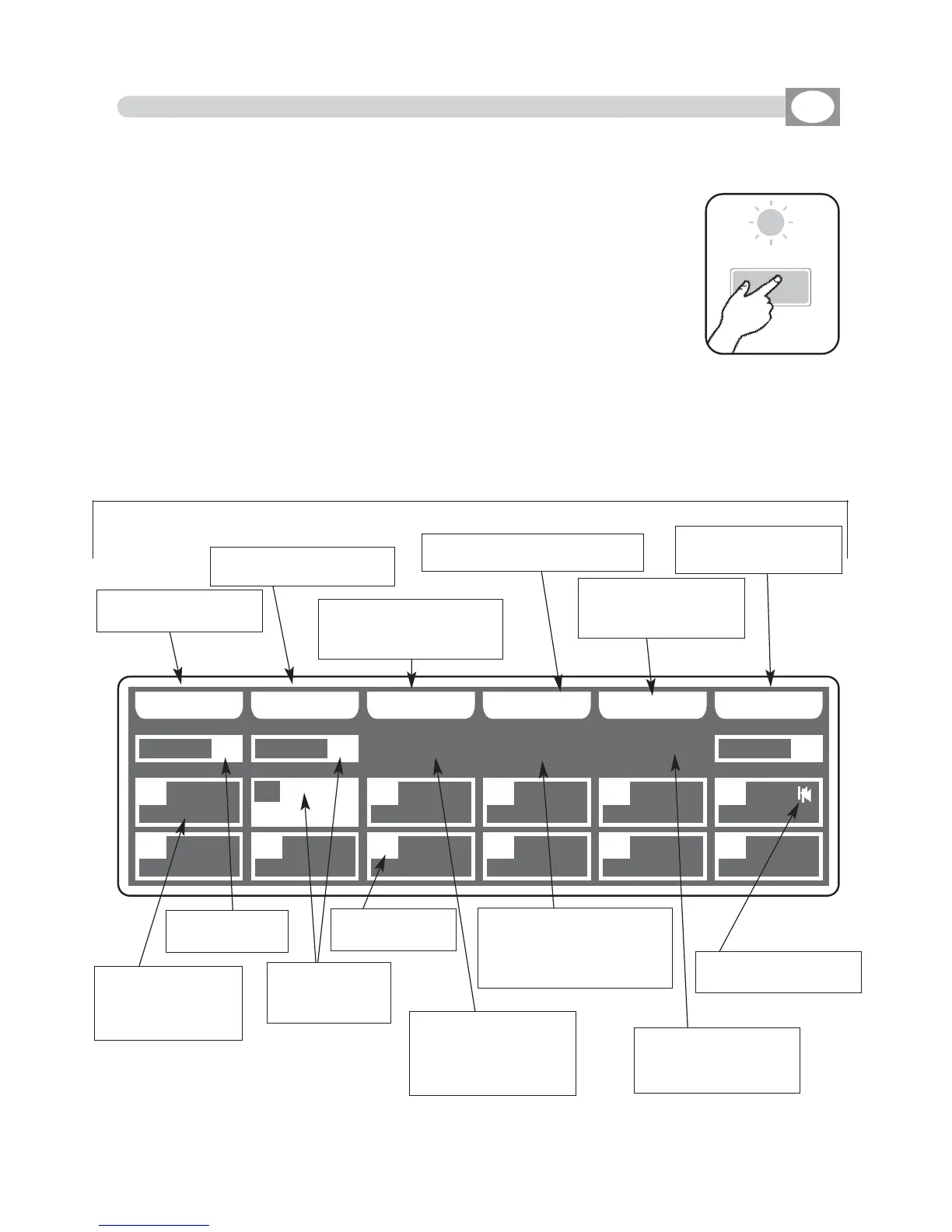

Fig. 1
Fig. 2
Key to copy the active
scene
Key to erase the active
scene
Key to modify the total
time of the active scene
Key to mark
the last scene of the program
Key to create or
modify the active
scene
visualize total time
and percent of
transition of the
scene
visualize the
active program
visualize the
active scene
with effect n°05
indicate the
scene number
indicates the total
time of the active
scene, in seconds
from 1 to 600
indicates the time to tran-
sition of the active scene
as percent of the total
time
indicates the time to
transition in seconds
from 0 to 600
indicates the last
scene of the program
Key for add an effect
to the active scene
