Plugs & Ports

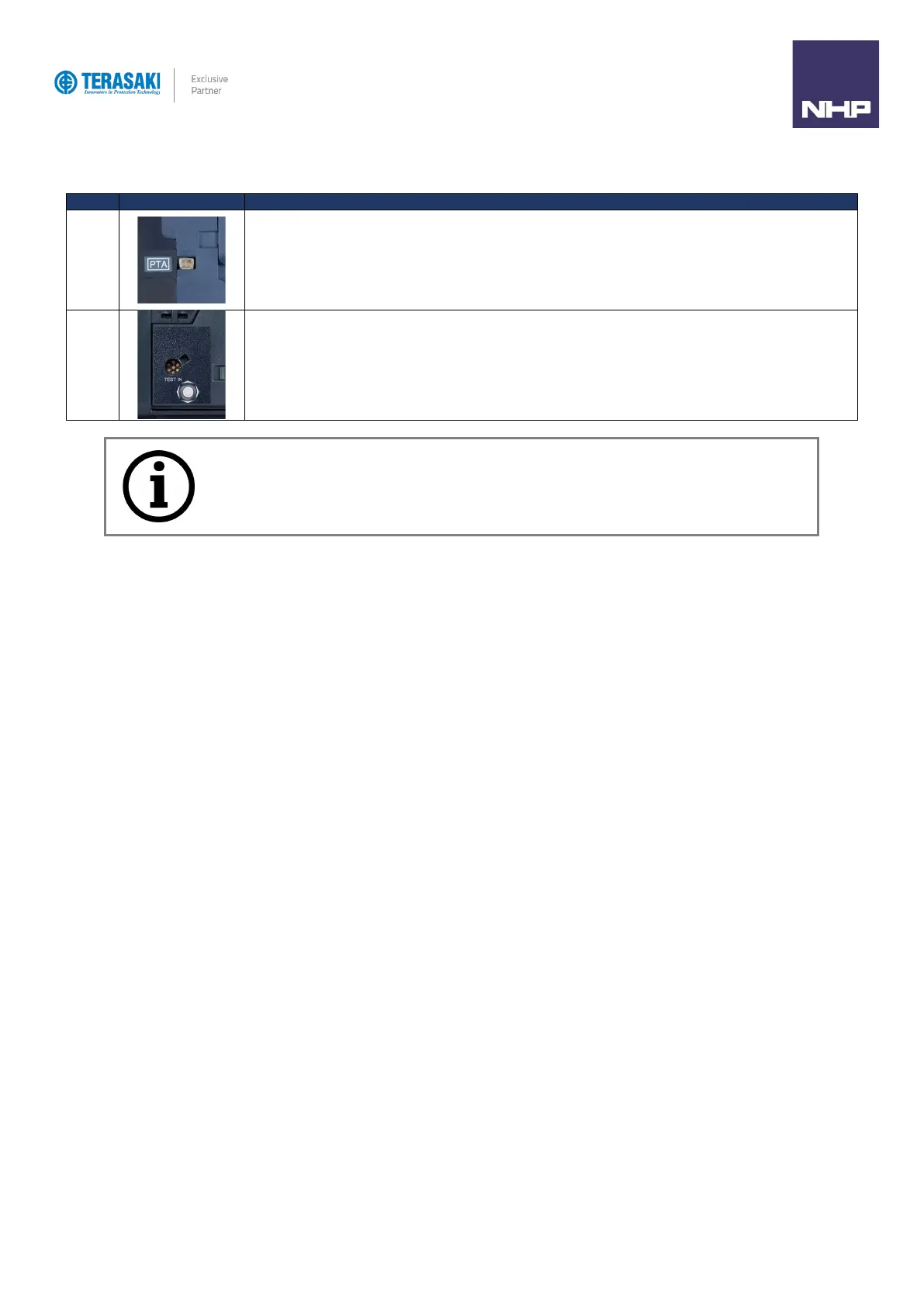

The P_BE circuit breaker is equipped with specific connectors for connecting interfacing devices and accessories.
Port
Description
PTA
Used to connect the PTA output contact to send the pre-trip alarm over a local signalling circuit.
Located on the outside left-hand side of the MCCB.
MIP
Maintenance Interface Port – for temporary connection to OCR testing, servicing, and maintenance tools.
Located to the right of the embedded display front cover.
Notice: Port images are representative only. Locations differ slightly for the various ampere frame sizes
