Installation
19
TemBreak PRO P_BE-UM-001-EN V1.3.0
Internal Accessory Mounting Locations
P160, P250 and P400/630 frame sizes have different internal mounting locations for auxiliary contacts, alarm contacts, shunts and, UVTs.
Left-side and right-side mounting locations are independent and accept unique combinations. For example, shunts and UVTs may only be mounted on the
right side, whereas auxiliary and alarm contacts may be mounted on either left or right side.
Refer to the following illustrations for each frame size listing the various possible internal accessories combinations.

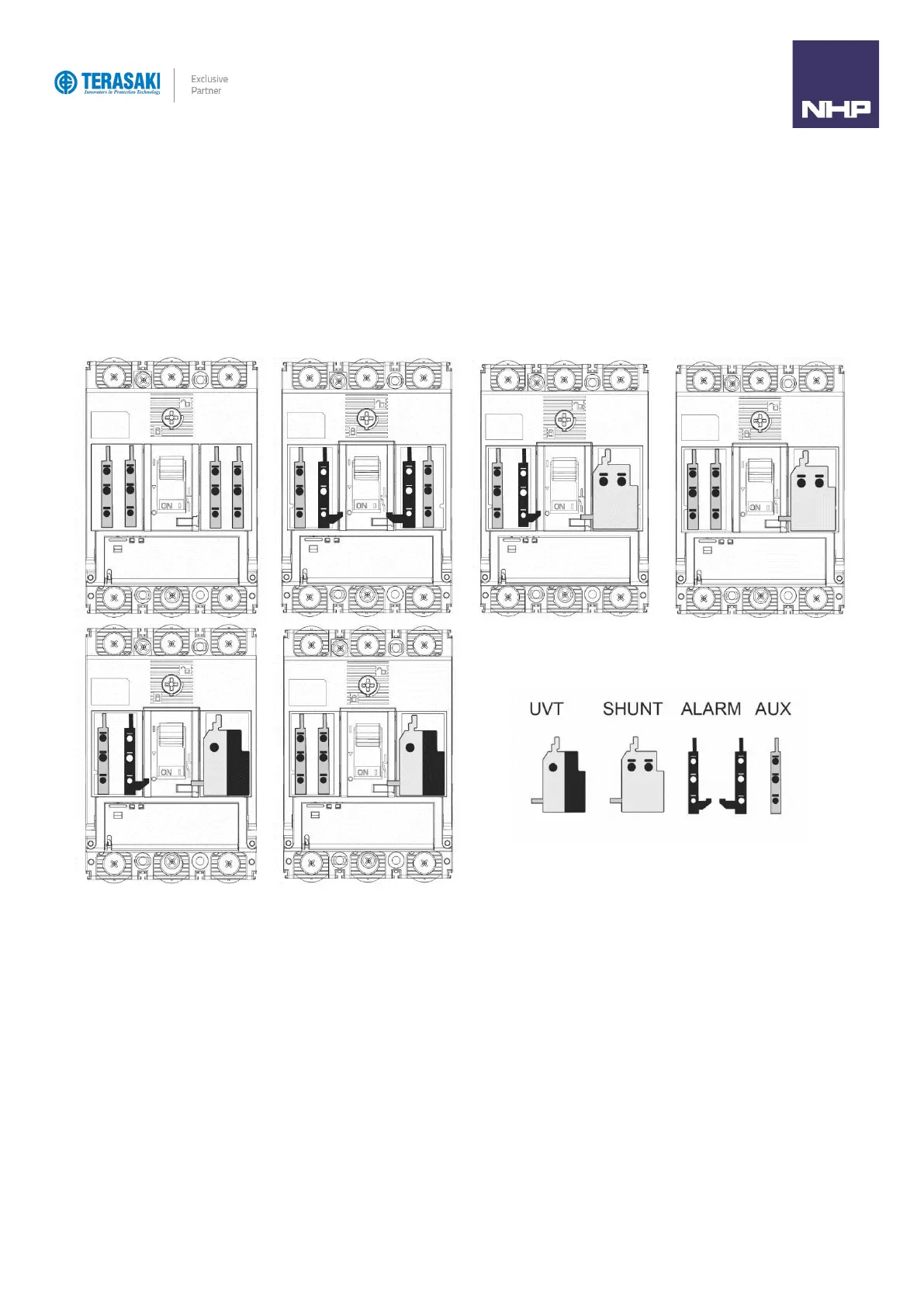

P160 internal accessories combination
