Alarm, Shunt & UVT Installation
The alarm, shunt and UVT have a trip bar that needs to interact with the MCCBs trip mechanism. As such they must be installed in a specific way. Refer to
the supplied Installation Instructions for the respective accessories for further detail.

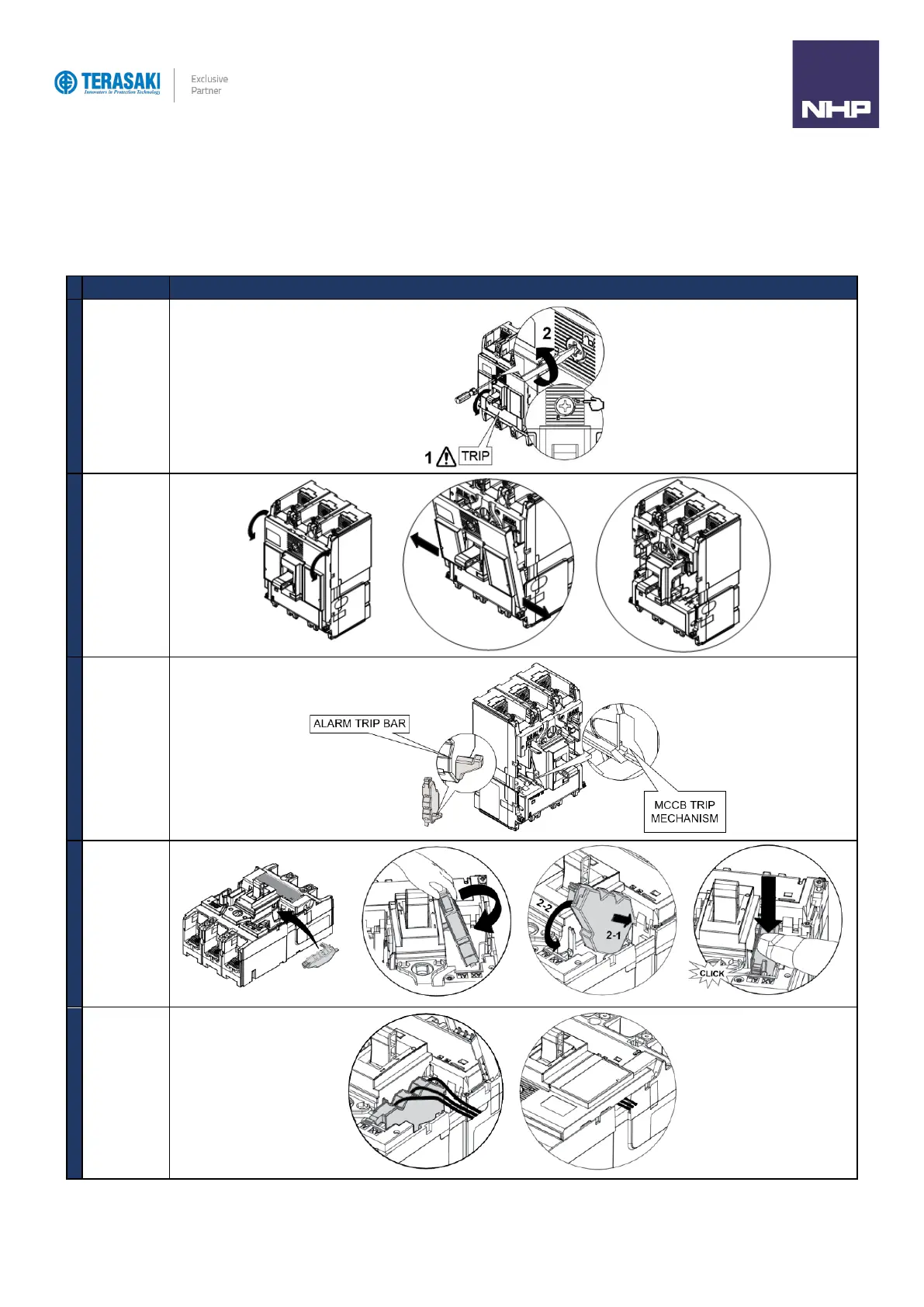

Standard Alarm & Auxiliary installation
Action
Note
1
Switch the Smart
MCCB to the
Tripped Position.
2
Open the front
cover of the
MCCB.
3
Locate the
alarm’s trip bar
into the MCCB
trip mechanism
slot.
4
The alarm will
need to be rolled
into place, follow
the images to
the right.
5
Run the wires
out the left-hand
side of the
MCCB, through
the allocated
groves.
