Trip Alarm
The trip alarm on the P_OCR indicates the status of the LTD protection, which if flashing indicates that an LTD trip is imminent.

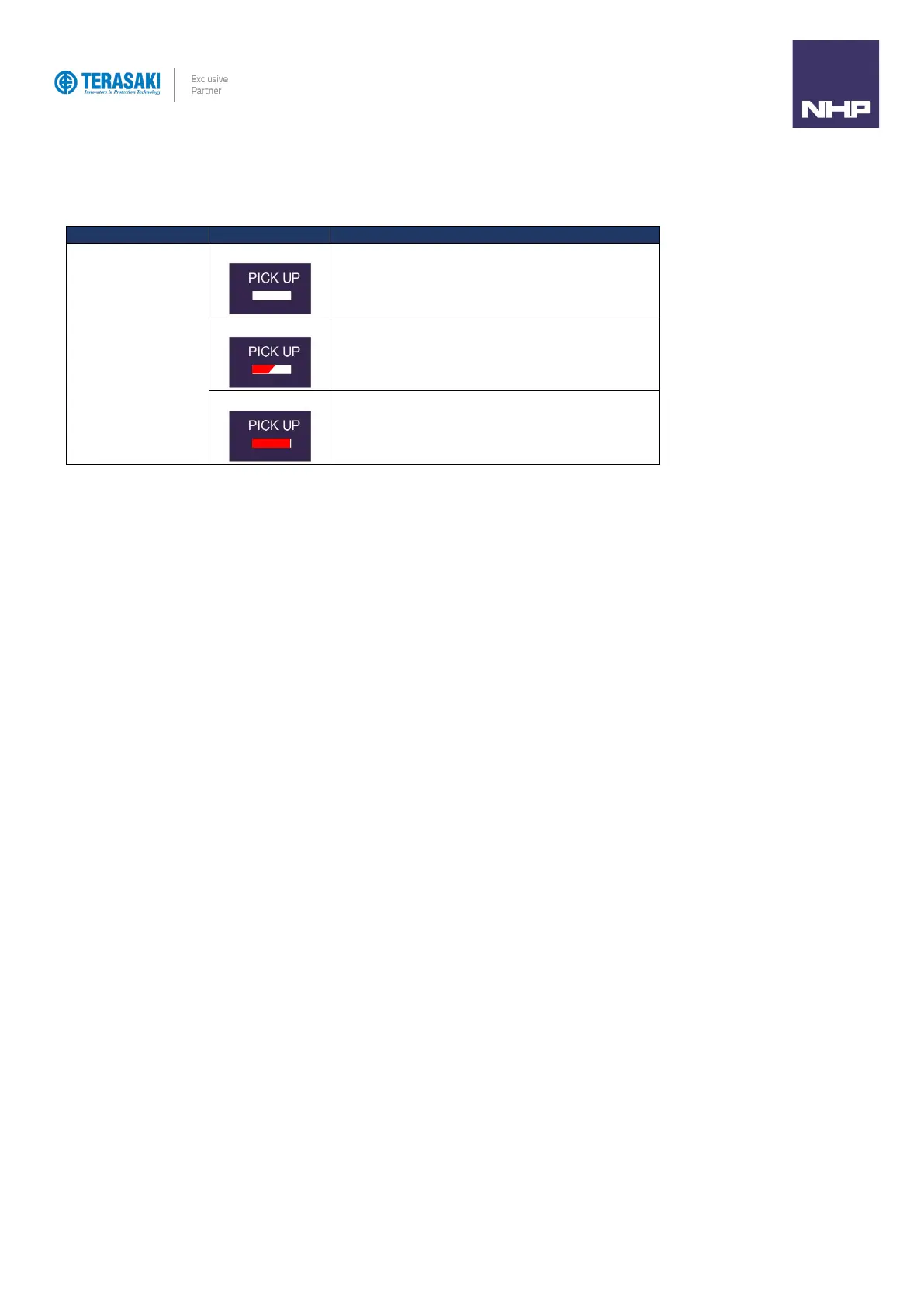

Alarm/Status type
LED Status
Description
LTD Pick-up Alarm
OFF
Current < 105% x Ir
RED Flashing
Current ≥ 105% x Ir
RED Solid
Current ≥ 112.5% x Ir
