Protection Settings
35
TemBreak PRO P_BE-UM-001-EN V1.3.0

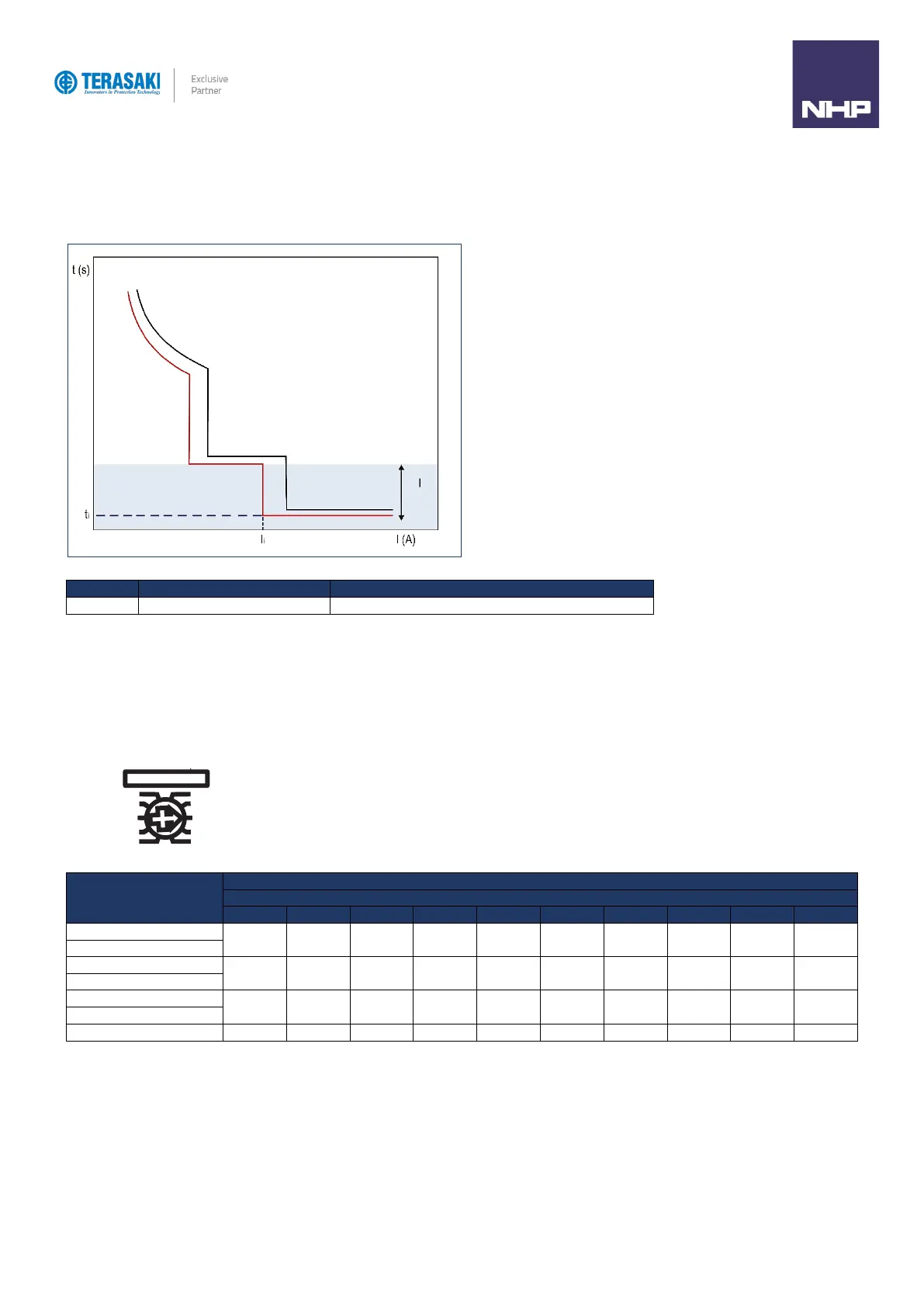

Instantaneous Protection (INST)
Instantaneous protection is designed to protect against high current short circuits. This protection is independent of time and is set as a multiple of the rated
current I
n
.
Adjusting I
i
(Current)
The l
i
trip threshold tolerance for instantaneous protection is ±15%.
The instantaneous protection has no adjustable time delay.
The non-trip time is 10 ms with a maximum cut-out time is 50 ms.
The l
i
trip threshold can be adjusted from the I
i
dial, which is represented as a multiple of I
n
.
