NHP TemBreak PRO P - INST Protection Only Setting

Commissioning
45
TemBreak PRO P_BE-UM-001-EN V1.3.0
INST Protection Only Setting
The P_BE OCR can be configured for INST protection only by disabling LTD (and STD) protection modes as follows: Refer to Protection Settings –
Instantaneous Protection (INST) section for further detail on setting I
i
.
Action

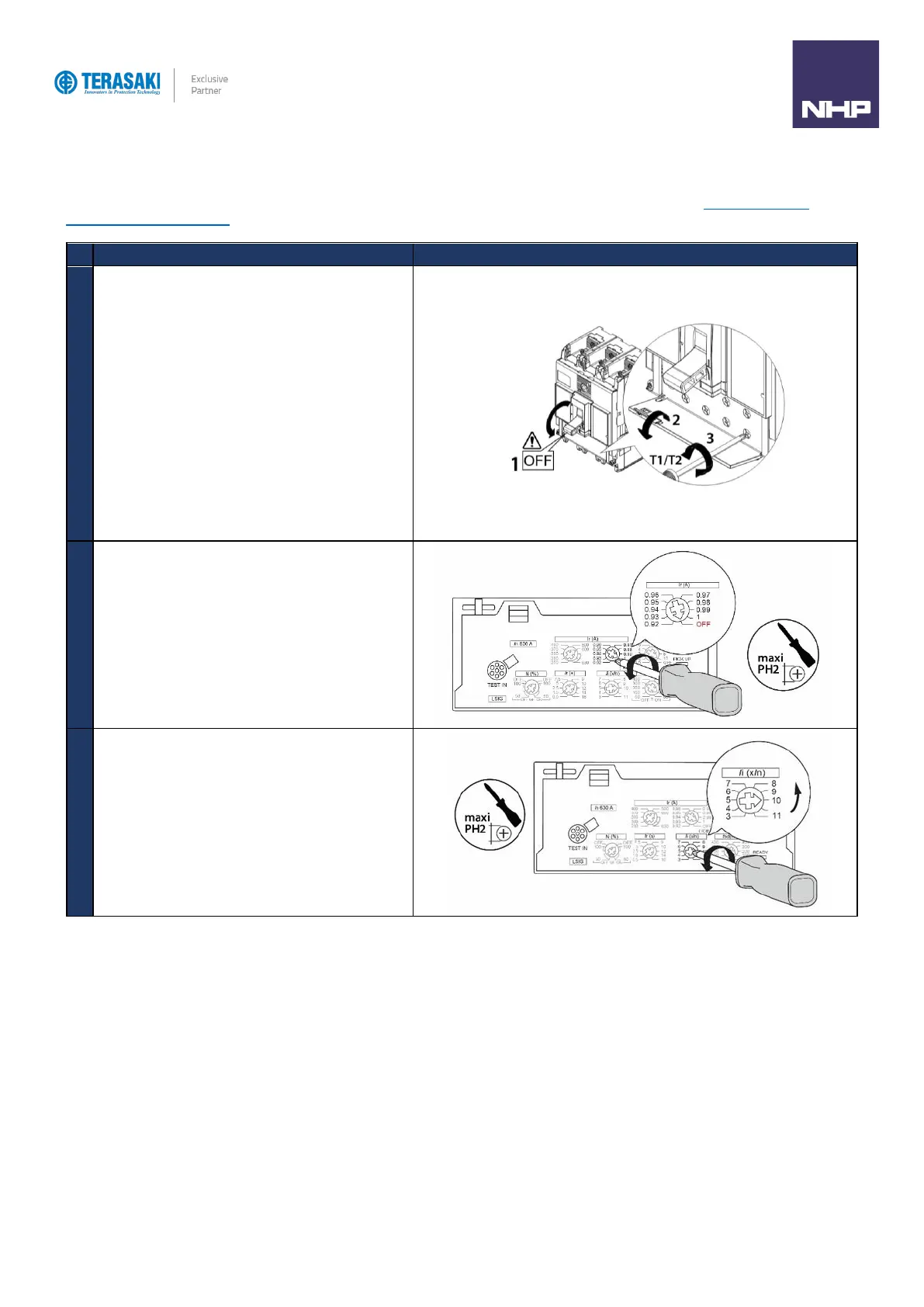

Note / Illustration
1
Turn the MCCB to the OFF Position
Open the transparent flap to access l
r
adjustment dials
2
Using a PH1, PH2 or PZ2 size screwdriver, rotate the I
r2
adjustment dial to the OFF position.
3
Rotate the Ii adjustment dial to the required multiple of In.
