Commissioning
44
TemBreak PRO P_BE-UM-001-EN V1.3.0
INST Protection Adjustments (I
i
)
The INST protection is configured by the I
i
adjustment rotary dial, which is performed as follows. Refer to Protection Settings – Instantaneous Protection
(INST) section for further detail on setting I
i
.

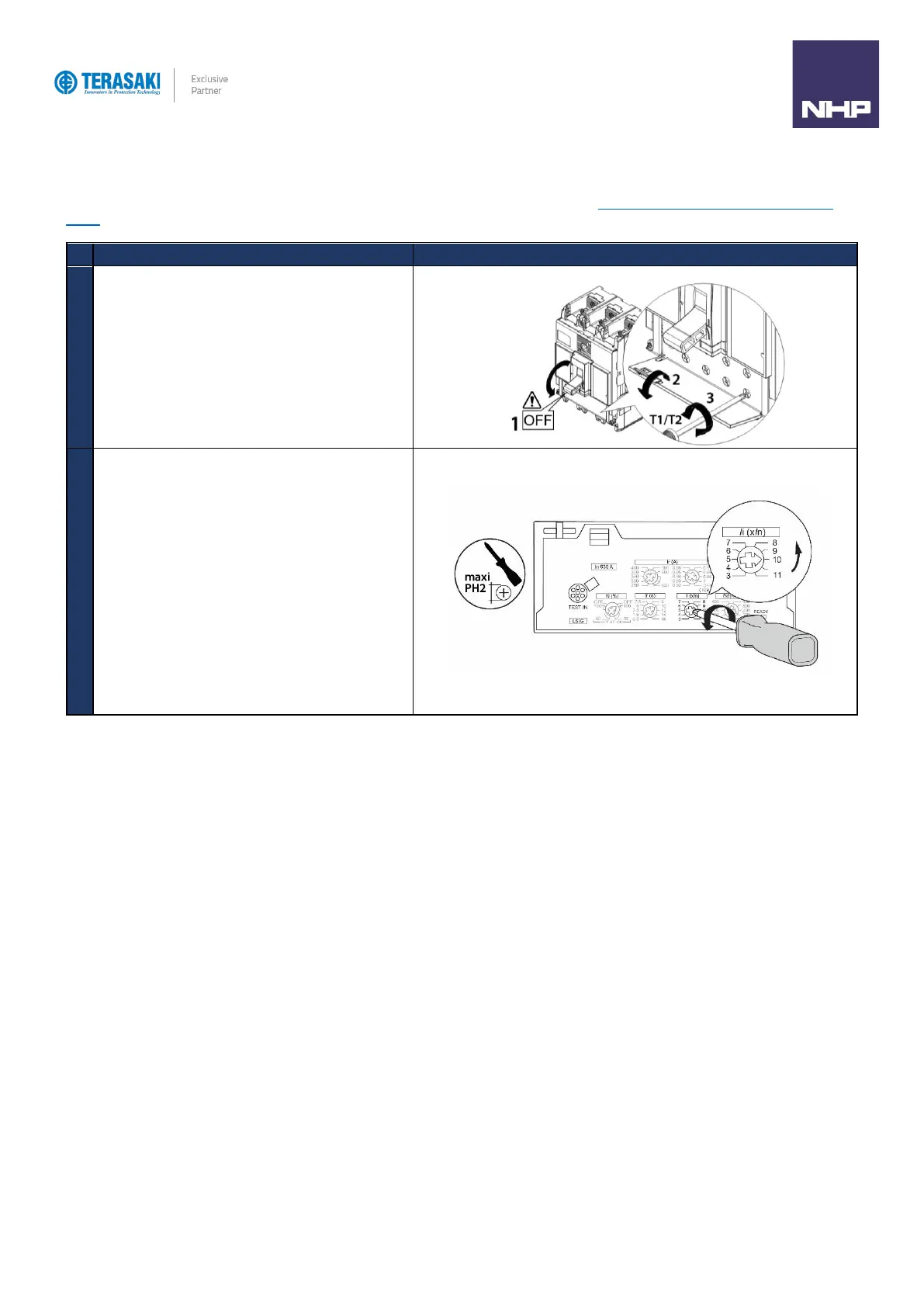

Action
Note / Illustration
1
Turn the MCCB to the OFF Position
Open the transparent flap to access li adjustment dials
2
Using a PH1, PH2 or PZ2 size screwdriver, rotate the I
i
adjustment dial to the required multiple of I
n
.
