NHP TemBreak PRO P - Annex B - Trip Curves

54
TemBreak PRO P_BE-UM-001-EN V1.3.0
Annex B – Trip Curves

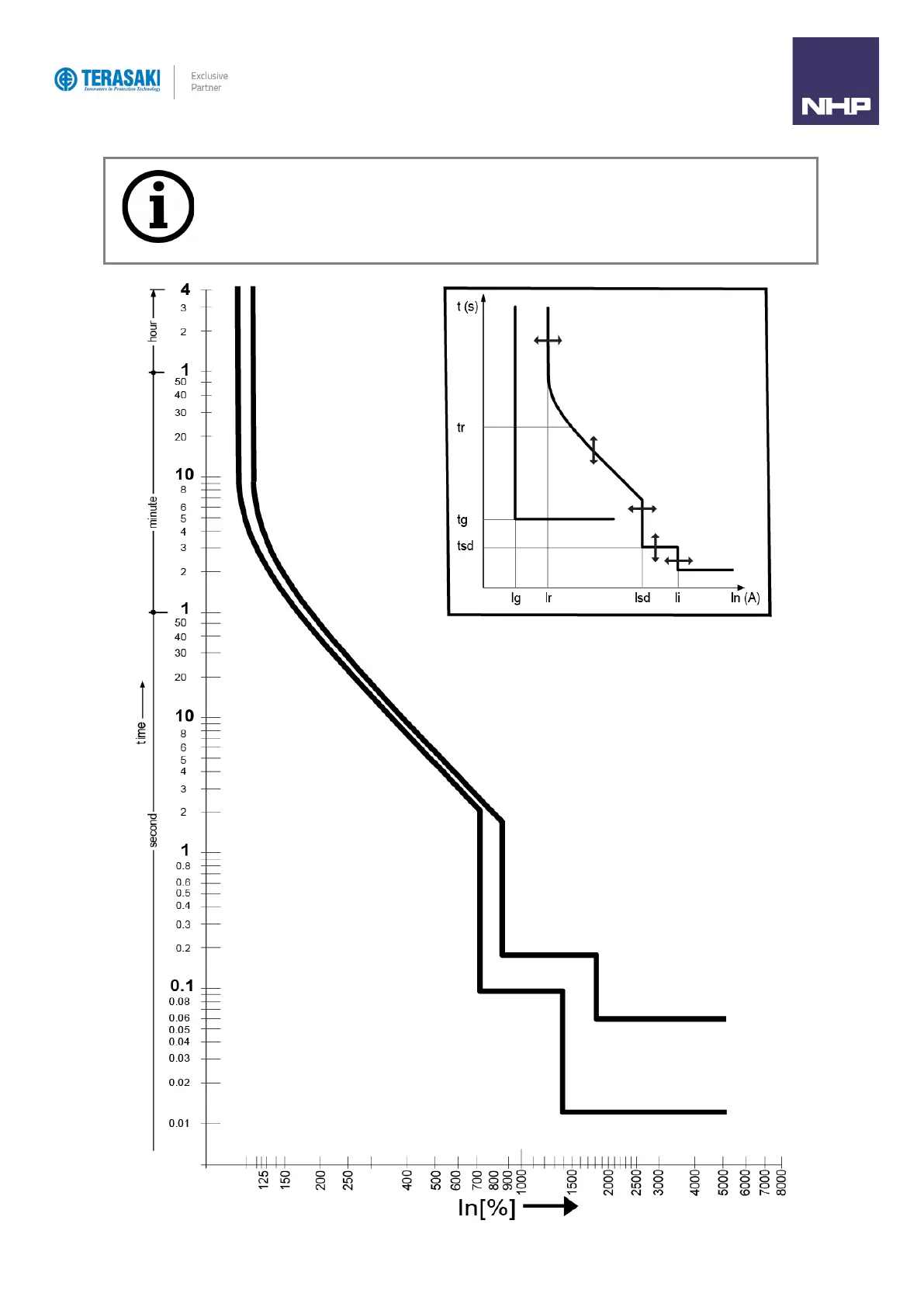

Notice: The below trip curve is representative only. The P_BE OCR features fully configurable protection
settings with fine adjustment to pick-up current and time delay for the various respective trip curves, which can
change depending on the application. To aide in selectivity studies, a trip curve based on the actual settings
used can be generated using the software package TemCurve. Contact NHP for details on TemCurve and
Selectivity.
