NHP TemBreak PRO P - Shunt & UVT Installation

Installation
Alarm, Shunt & UVT Installation
23
TemBreak PRO P_BE-UM-001-EN V1.3.0

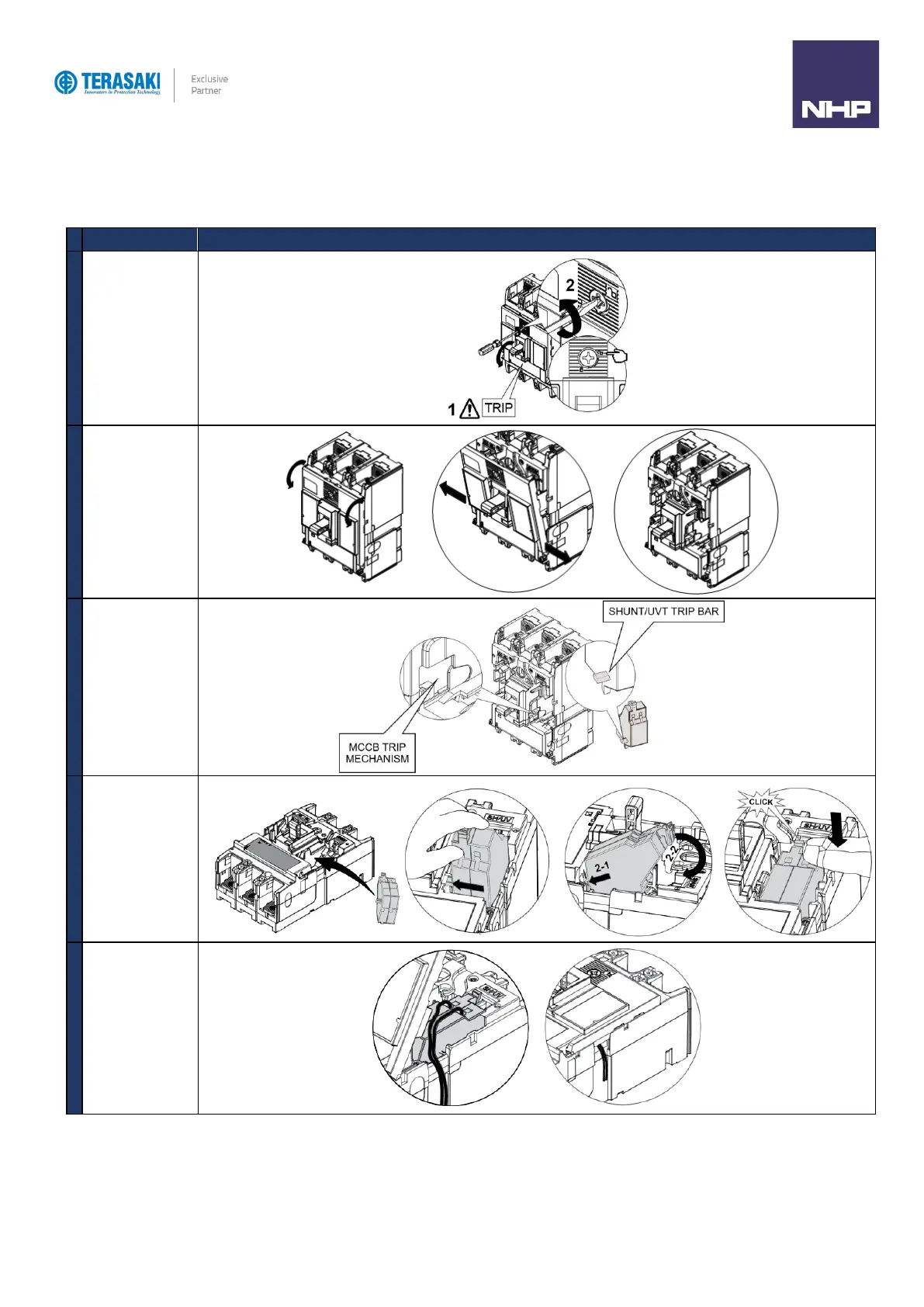

Shunt & UVT installation
Action
Note
1
Switch the Smart
MCCB to the Tripped
Position.
2
Open the front cover of
the MCCB.
3
Locate the shunt or
UVT’s trip bar into the
MCCB trip mechanism
slot.
4
The shunt or UVT will
need to be rolled into
place, follow the
images to the right.
5
Run the wires out the
right-hand side of the
MCCB, through the
allocated groves.
