General
Pipe installation must be carried out in accordance with
current norms and directives. F1245 can operate with a
return temperature of up to 58 °C and an outgoing
temperature from the heat pump of 70 (65 °C with only
the compressor).
F1245 is not equipped with external shut off valves; these
must be installed to facilitate any future servicing.
NOTE
The pipe system needs to be flushed out before
the heat pump is connected so that debris can-
not damage component parts.
Symbol key
MeaningSymbol
Venting valve
Shut-off valve
Non-return valve
Shunt / shuttle valve
Safety valve
Trim valve
Temperature sensor
Level vessel
Pressure gauge
P
Circulation pump
Particle filter
Auxiliary relay
Fan
Compressor
Heat exchanger

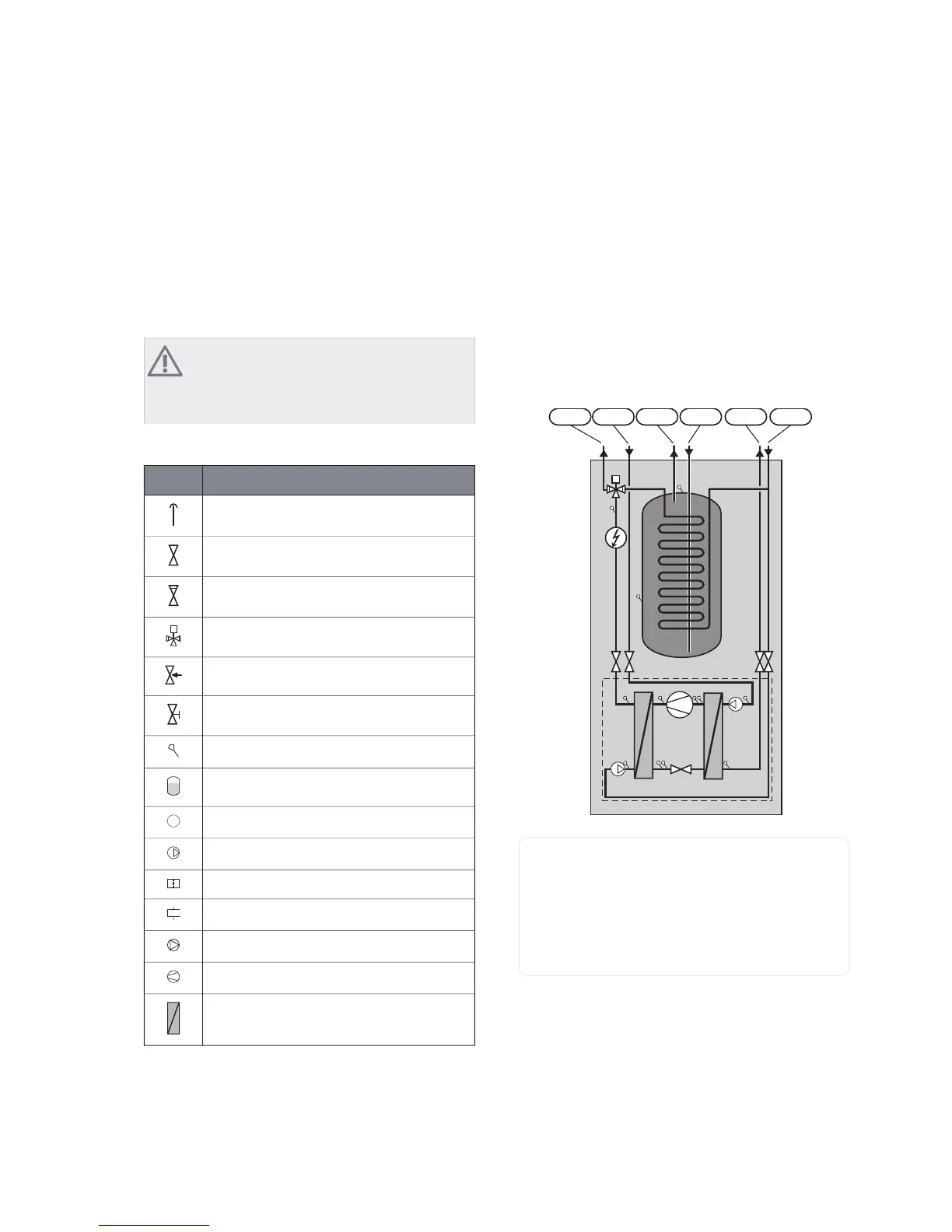

System diagram
F1245 consists of a heat pump, water heater, electrical
module, circulation pumps and a control system. F1245
is connected to the brine and heating medium circuits.
In the heat pump evaporator, the brine (water mixed with
anti-freeze, glycol or ethanol) releases its energy to the
refrigerant, which is vaporised in order to be compressed
in the compressor. The refrigerant, of which the temper-
ature has now been raised, is passed to the condenser
where it gives off its energy to the heating medium circuit
and, if necessary, to the water heater. If there is a greater
need for heating/hot water than the compressor can
provide there is an integrated immersion heater.
;/ ;/ ;/;/ ;/ ;/
Connection, heating medium flowXL 1
Connection, heating medium returnXL 2
Connection, cold waterXL 3
Connection, hot waterXL 4
Connection, brine inXL 6
Connection, brine outXL 7
NIBE™ F1245Chapter 4 | Pipe connections12
