Nibe F1245 Installer Manual

Removing parts of the insula-
tion

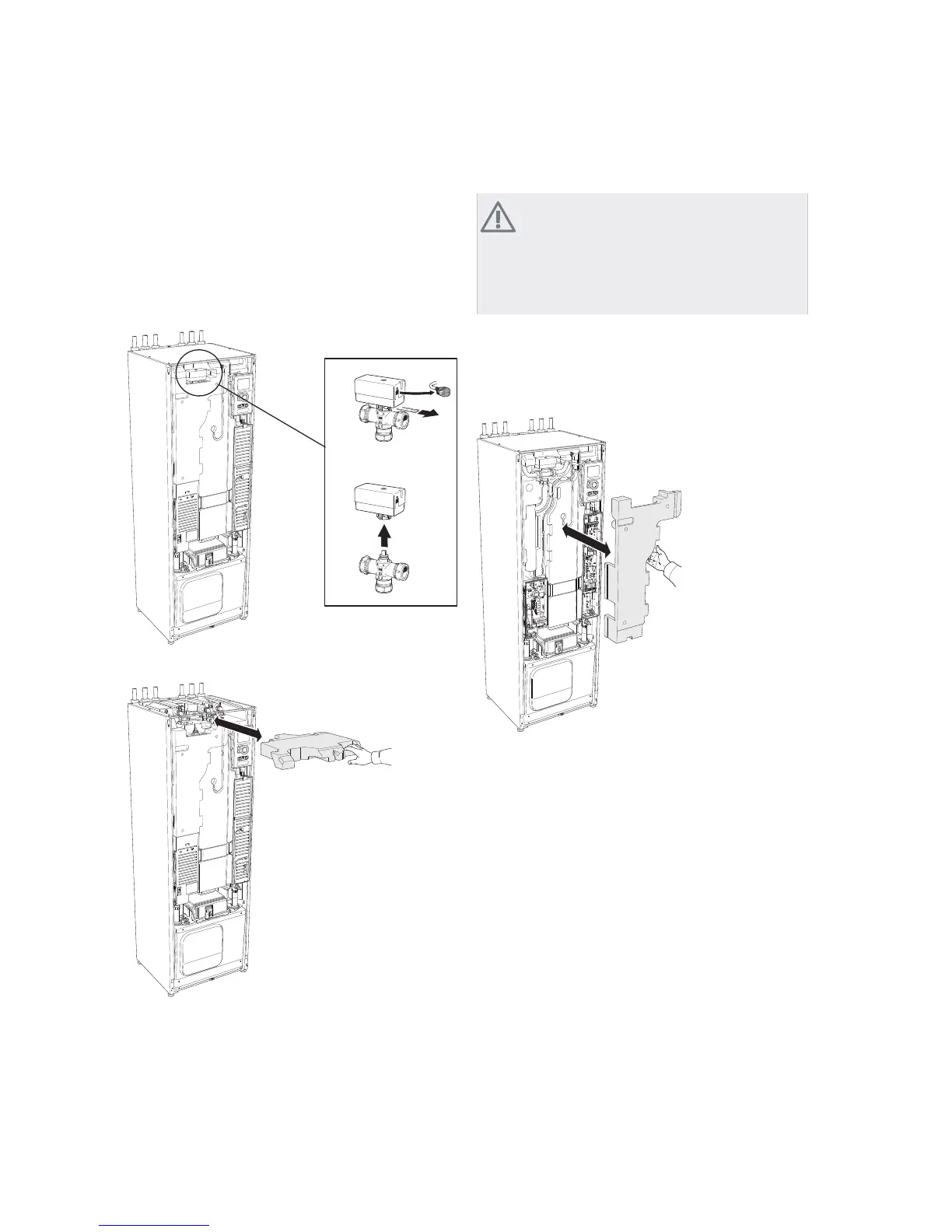

Parts of the insulation can be removed to facilitate the
installation.
Insulation, top
1.
Disconnect the cable from the motor and remove
the motor from the shuttle valve as illustrated.
LEK
LEK
A
B
LEK
2.
Grip the handle and pull straight out as illustrated.
LEK
Insulation, immersion heater
NOTE
Electrical installation and service must be carried
out under the supervision of a qualified electri-
cian. Electrical installation and wiring must be
carried out in accordance with the stipulations
in force.
1.
Remove the cover of the junction box according to
the description on page 18.
2.
Grip the handle and pull the insulation carefully to-
wards you as illustrated.
L
EK
7Chapter 2 | Delivery and handlingNIBE™ F1245

Nibe F1245 Specifications

General

Refrigerant	R410A
Control System	NIBE SMO 40
Dimensions (HxWxD)	1800 x 600 x 620 mm
Energy Efficiency Class Heating 35°C	A++
Energy Efficiency Class Heating 55°C	A++
Heating Capacity	5-12 kW
COP Heating	4.5
Integrated Hot Water Tank	180 liters
Power Input Heating	1.0 - 3.0 kW
