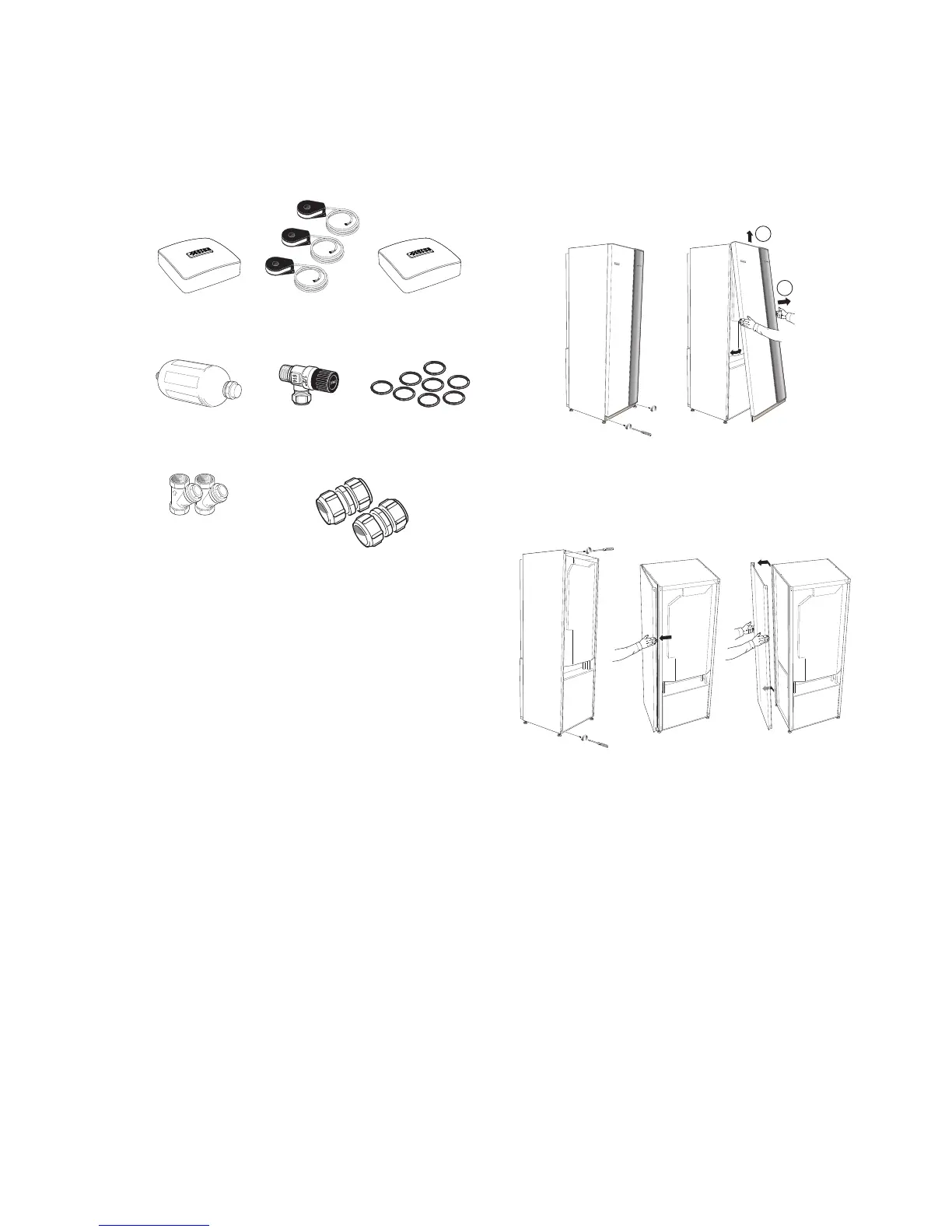

Supplied components
LEK
LEK
LEK
Room sensorCurrent sensor
(not 1-phase)
Outside sensor
LEK
LEK
O-ringsSafety valve
(0.3 MPa) (3 bar)
Level vessel
Conex connectorsParticle filter
5-10 kW
2 x (ø28 x G25)
2 x (ø22 x G20)
12 kW
4 x (ø28 x G25)
Location
The kit of supplied items is placed in packaging on top
of the heat pump.
Removing the covers
Front cover
1
2
LEK
LEK
1.
Remove the screws from the lower edge of the front
cover.
2.
Lift the cover out at the bottom edge and up.
Side covers
LEK
LEK
LEK
The side covers can be removed to facilitate the installa-
tion.
1.
Remove the screws from the upper and lower edges.
2.
Twist the cover slightly outward.
3.
Move the cover backwards and slightly to the side.
4.
Pull the cover to one side.
5.
Pull the cover forwards.
NIBE™ F1245Chapter 2 | Delivery and handling6
