Nibe F1245 Installer Manual

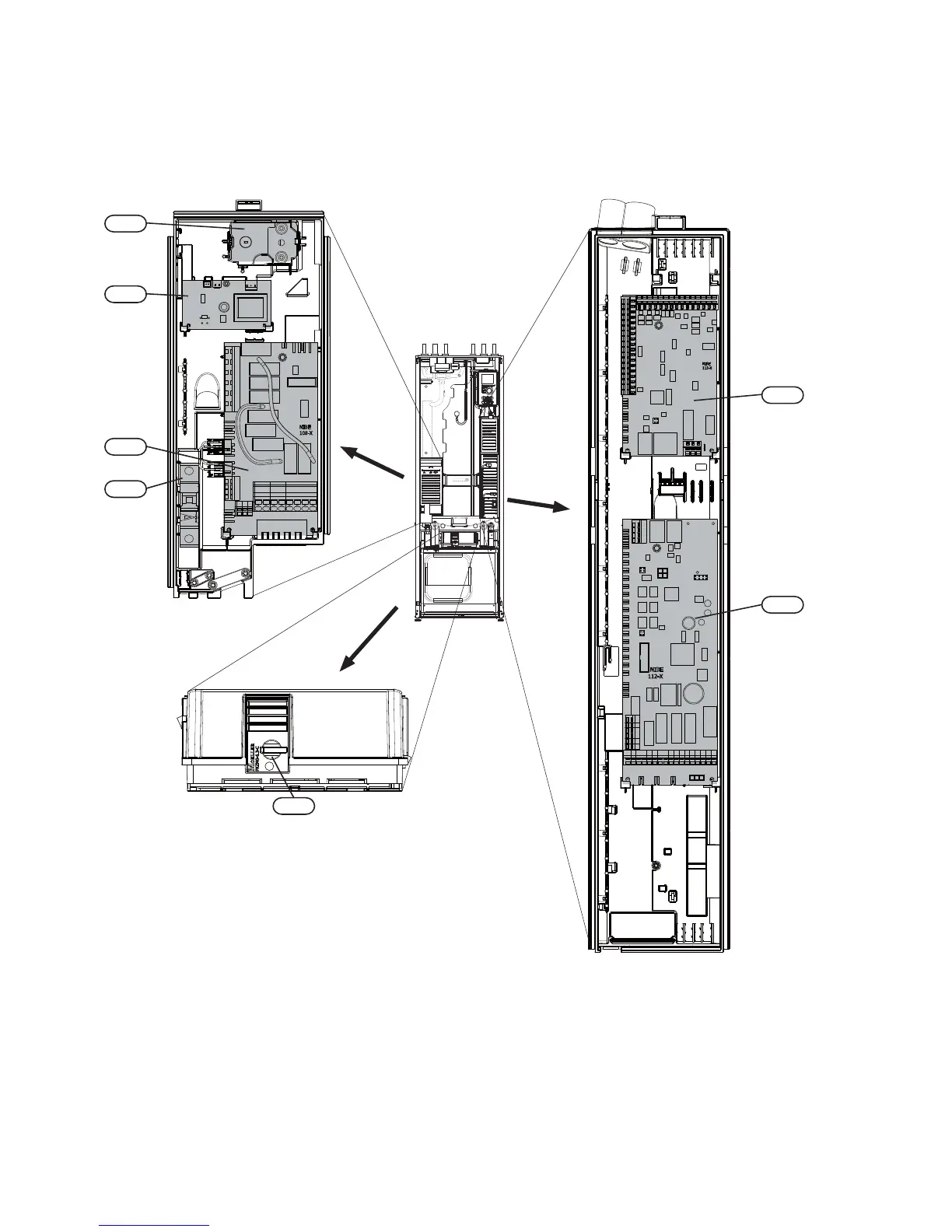

Electrical cabinets
)'
$$
$$
)$
)%
$$
$$
Electrical components
Immersion heater cardAA 1
Base cardAA 2
Input circuit boardAA 3
Sacrificial anode card*AA 8
Miniature circuit-breakerFA 1
Motor cut-out**FB 1
Temperature limiter/Emergency mode thermostatFD 1
* Only heat pump with enamelled vessel.
** 1x230 V, 3x230 V 6-10 kW has auxiliary switch for
motor cut-out.
Designations in component locations according to
standard IEC 81346-1 and 81346-2.
9Chapter 3 | The heat pump designNIBE™ F1245

Nibe F1245 Specifications

General

Refrigerant	R410A
Control System	NIBE SMO 40
Dimensions (HxWxD)	1800 x 600 x 620 mm
Energy Efficiency Class Heating 35°C	A++
Energy Efficiency Class Heating 55°C	A++
Heating Capacity	5-12 kW
COP Heating	4.5
Integrated Hot Water Tank	180 liters
Power Input Heating	1.0 - 3.0 kW
