Transport

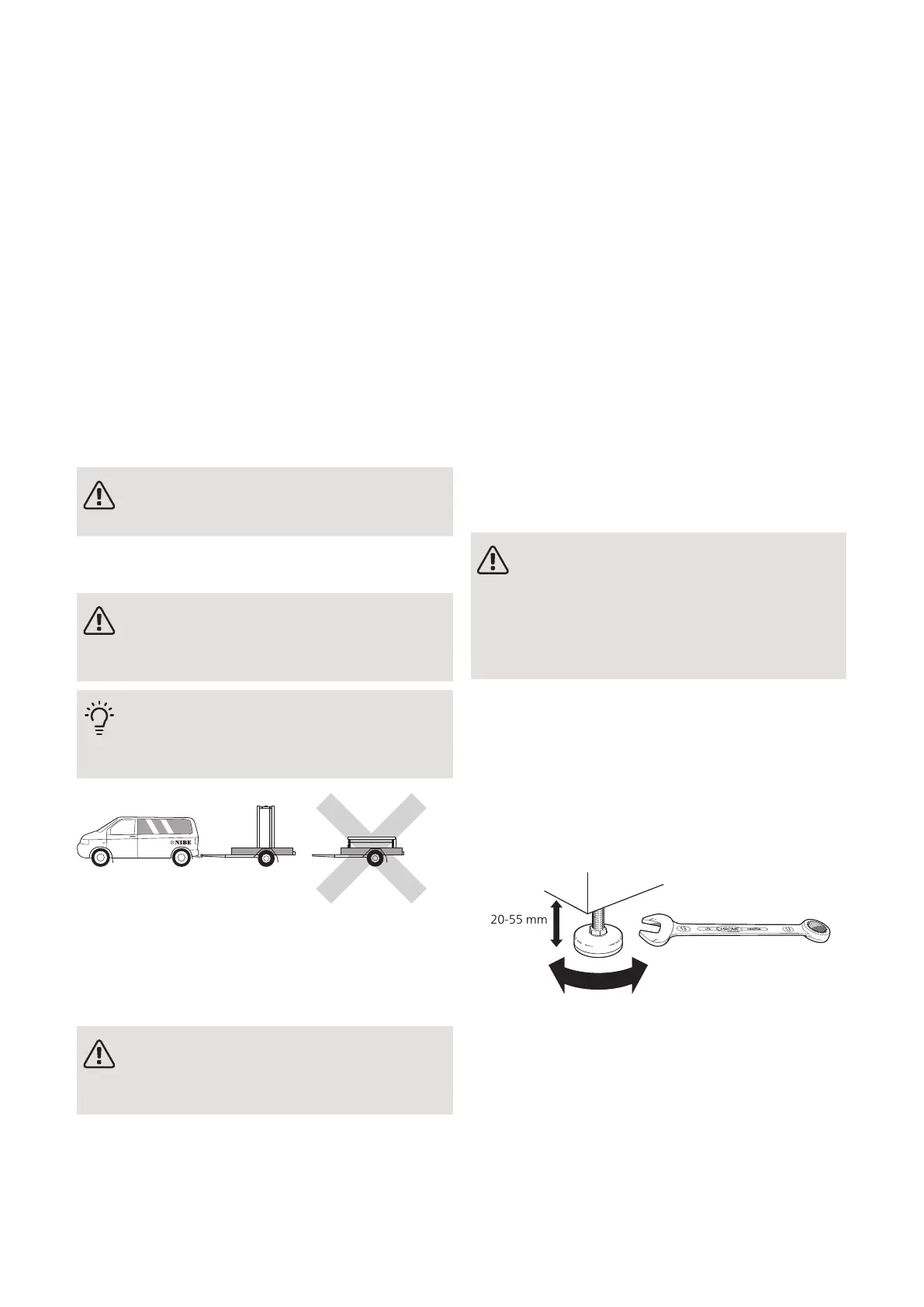

F1345 has to be transported and stored vertically in a
dry place. While being moved into a building, the heat
pump may be carefully tilted backwards 45°.
Ensure that F1345 has not been damaged during trans-
port.
NOTE
The heat pump is top heavy.
If the cooling modules are pulled out and transported
upright, F1345 can be transported on its back.
NOTE
Ensure that the heat pump cannot fall over
during transport.
TIP
The side panels can be removed for easier in-
stallation in the building.
R
0
+2
0
-2
1
R
0
HM flow 49 (50) °C
Hot water
51 °C
+2
0
-2
1
R
0
HM flow
49 (50) °C
Hot water
51 °C
R
0
R
0
+2
0
-2
1
R
0
HM flow 49 (50) °C
Hot water
51 °C
+2
0
-2
1
R
0
HM flow
49 (50) °C
Hot water
51 °C
R
0
LIFT FROM THE STREET TO THE SET UP
LOCATION
If the base allows, the simplest thing is to use a pallet
truck to move the F1345 to the set up location.
NOTE
The centre of gravity is offset to one side (see
print on the packaging).
F1345 must be lifted on the heaviest side and can be
moved on a sack truck. Two people are required to lift
F1345.
LIFT FROM THE PALLET TO FINAL
POSITIONING
Before lifting, remove the packaging and the load anchor
to the pallet as well as front and side panels.
Before lifting, the heat pump must be separated by
pulling the cooling modules out from the cabinet. See
the service chapter in the operating manual for instruc-
tions about the separation.
Carry the heat pump by the upper cooling module's slide
rails, use gloves.
NOTE
The heat pump must not be moved when only
the lower cooling module has been pulled out.
If the heat pump is not secured in position the
upper cooling module must always be removed
before the lower one can be pulled out.
SCRAPPING
For scrapping, remove the product in reverse order.
Assembly
• Place F1345 on a solid foundation indoors that can
take the heat pump's weight. Use the product's ad-
justable feet to obtain a horizontal and stable set-up.
30 - 50 mm
30 - 50 mm
15 - 40 mm
20-55 mm
• Because water comes from F1345, the area where
the heating pump is located must be equipped with
floor drainage.
• Install with its back to an outside wall, ideally in a room
where noise does not matter, in order to eliminate
noise problems. If this is not possible, avoid placing
it against a wall behind a bedroom or other room
where noise may be a problem.
NIBE F1345Chapter 2 | Delivery and handling8
2 Delivery and handling
