NOTE
The relevant distribution box must be marked
with a warning about external voltage.

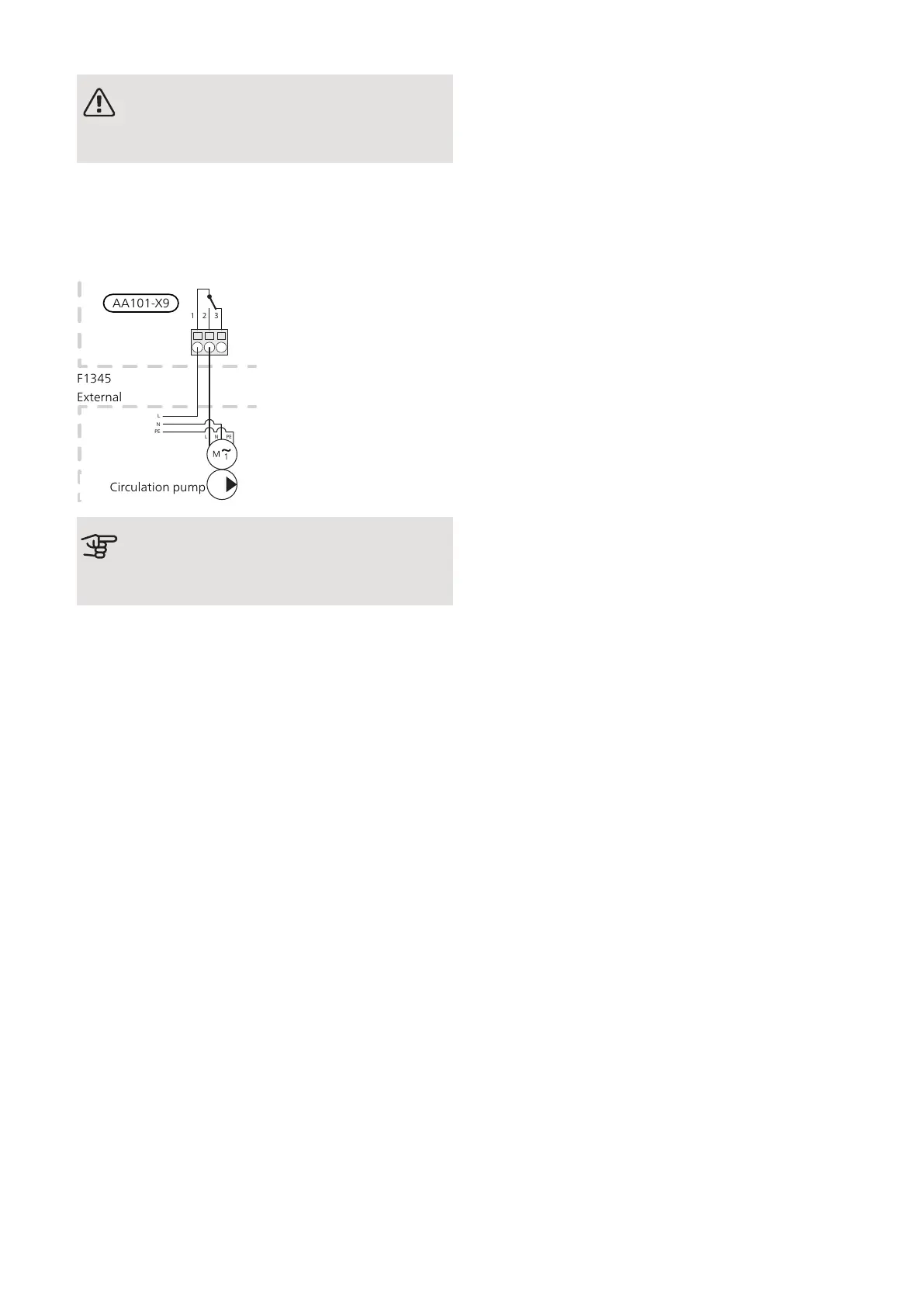

External circulation pump, ground water pump or hot
water circulation pump is connected to the common
alarm relay as illustrated below. If the pump has to work
in the event of alarm, the cable is moved from position
2 to position 3.
Circulation pump
AA101-X9
F1345
External
Caution
For relay position operation, see section “Relay
output for emergency mode”, see page 30.
Connecting
accessories
Instructions for connecting accessories are in the install-
ation instructions provided for the respective accessory.
See information at nibe.eu for the list of the accessories
that can be used with F1345.
NIBE F1345Chapter 5 | Electrical connections34
