Nibe F1345 Series User Manual

PIPE CONNECTIONS
Connection, heating medium flowXL1
Connection, heating medium returnXL2
Connection, brine inXL6
Connection, brine outXL7
HVAC COMPONENTS
Cooling moduleEP14
Cooling moduleEP15
SENSORS ETC.
Outdoor temperature sensor
1
BT1
1
Not illustrated
ELECTRICAL COMPONENTS
Base cardAA2
Input circuit boardAA3
Terminal block, sensorAA3-X6
Terminal block -EP14 -BP8AA3-X20
Terminal block -EP15 -BP8AA3-X21
Terminal block, flow meter -EP14 -BF1AA3-X22
Terminal block, flow meter -EP15 -BF1AA3-X23
Display unitAA4
USB outlet (no function)AA4-XF3
Service outlet (No function)AA4-XF4
Motor moduleAA11
Communication boardAA23
Base card 2AA26
Relay board for baseAA27
Interface boardAA101
Terminal block, incoming electrical supplyAA101-X1
Terminal block, supply -EP14AA101-X2
Terminal block, operating voltage out -X4AA101-X3
Terminal block, operating voltage in (tariff
option)
AA101-X4
Terminal block, supply, external accessor-
ies.
AA101-X5
Terminal block -QN10 and -GP16AA101-X6
Emergency mode relayAA101-X8
Alarm relay, AUX relayAA101-X9
Communication, PWM, power supplyAA101-X10
Miniature circuit-breakerFC1
EMC-filterRF3
Connector, electrical supply to compressor,
cooling module -EP14
XF1
Connector, compressor heater -EP14XF3
Connector, brine pump, cooling module
-EP14 (only 24 and 30 kW)
XF4
Connector, heating medium pump, cooling
module -EP14
XF5
Connector, compressor heater -EP15XF6
Connector, brine pump, cooling module
-EP15 (only 24 and 30 kW)
XF7
Connector, heating medium pump, cooling
module -EP15
XF8
Communication motor module -EP15XF9
Communication motor module -EP14XF10
Pumps, compressor heater -EP14XF11
Communication motor module -EP14XF13
MISCELLANEOUS
Rating platePZ1
Type plate, cooling sectionPZ2
Serial number platePZ3
Cable gland, incoming electricityUB1
Cable gland, powerUB2
Cable gland, signalUB3
Designations according to standard EN 81346-2.

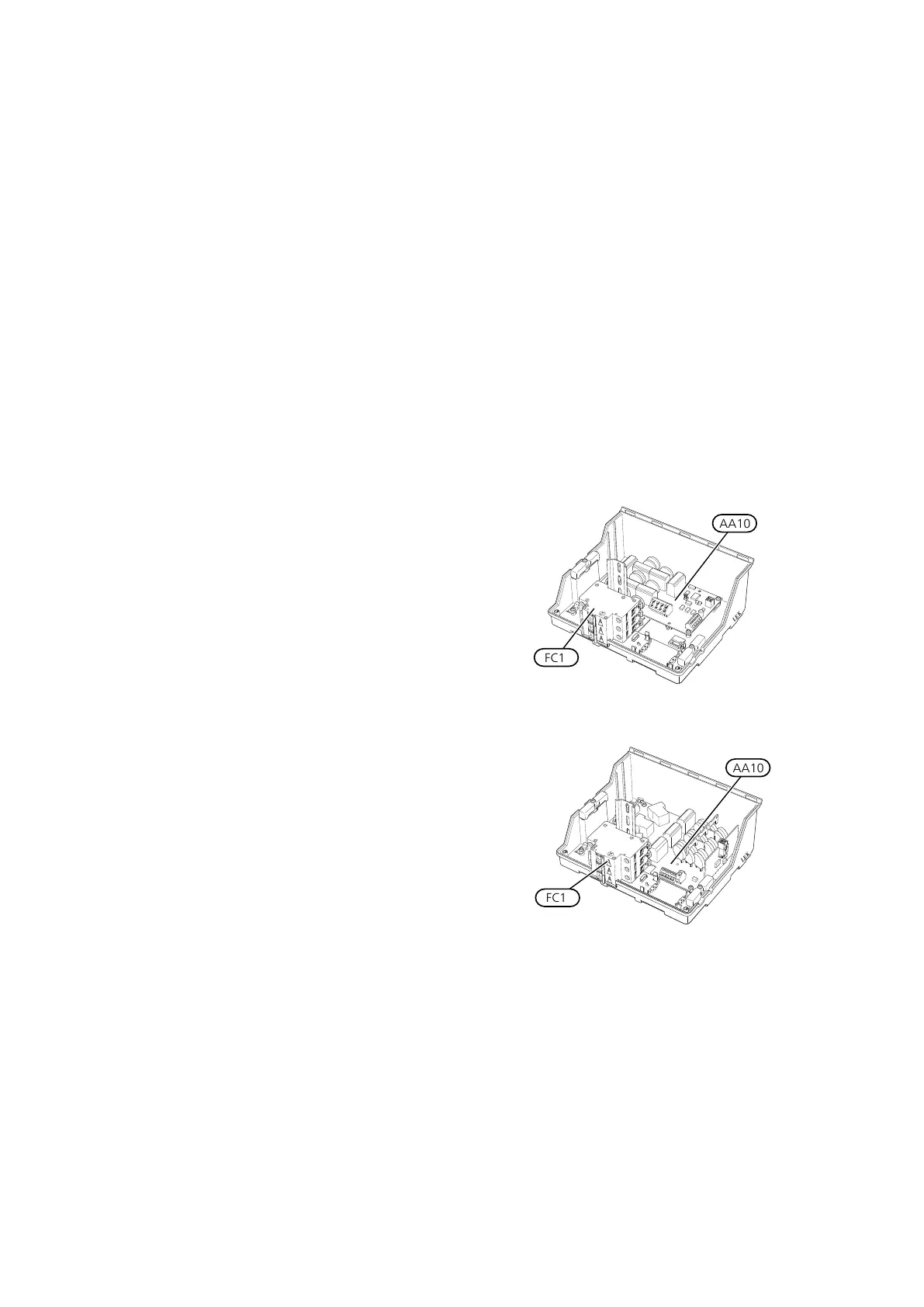

Motor module (AA11)
F1345 24 KW
LEK
LEK
LEK
FC1
AA10
F1345 30, 40 and 60 kW
LEK
LEK
LEK
FC1
AA10
ELECTRICAL COMPONENTS
Soft-start cardAA10
Miniature circuit-breakerFC1
13Chapter 3 | The heat pump designNIBE F1345

Nibe F1345 Series Specifications

General

Refrigerant	R410A
Control System	NIBE SMO 40
Max Flow Temperature	65°C
Cooling Capacity	Not explicitly stated in general specifications. Depends on the specific model and installation conditions.
COP	4.5
Electrical Connection	400V 3N~
EER (Cooling)	Not explicitly stated in general specifications. Depends on the specific model and installation conditions.
Number of Compressors	1 or 2 (depending on model)
