General
All electrical equipment, except the outdoor sensors,
room sensors and the current sensors are ready connec-
ted at the factory.
For 40 and 60 kW, the brine pump is enclosed (does not
apply to all countries, see list of enclosed items) and
must be installed outside the heat pump.
• Disconnect the heat pump before insulation testing
the house wiring.
• If the building is equipped with an earth-fault breaker,
each F1345 should be equipped with a separate one.
• If a miniature circuit breaker is used this should have
at least motor characteristic “C”. See page 46 for fuse
size.
• Electrical wiring diagram for the heat pump, see page
53.
• Communication and sensor cables to external connec-
tions must not be laid close to high current cables.
• The minimum area of communication and sensor
cables to external connections must be 0.5 mm² up
to 50 m, for example EKKX or LiYY or equivalent.
• When cable routing in F1345, cable grommets (e.g.
UB2, power cables and UB3, signal cables, marked in
image) must be used. Secure the cables in the grooves
in the panel using cable ties (see image).
LEK
LEK
NOTE
The switch (SF1) must not be moved to "" or
" " until the boiler has been filled with water.
Components in the product could be damaged.
NOTE
Electrical installation and service must be car-
ried out under the supervision of a qualified
electrician. Cut the current with the circuit
breaker before carrying out any servicing.
Electrical installation and wiring must be carried
out in accordance with the stipulations in force.
NOTE
Check the connections, main voltage and phase
voltage before the machine is started, to pre-
vent damage to the heat pump electronics.
NOTE
Refer to the outline diagram of your system
for positioning of the temperature sensor.
LEK
LEK
FC1
FC1
UB2
UB3
EP15
EP14

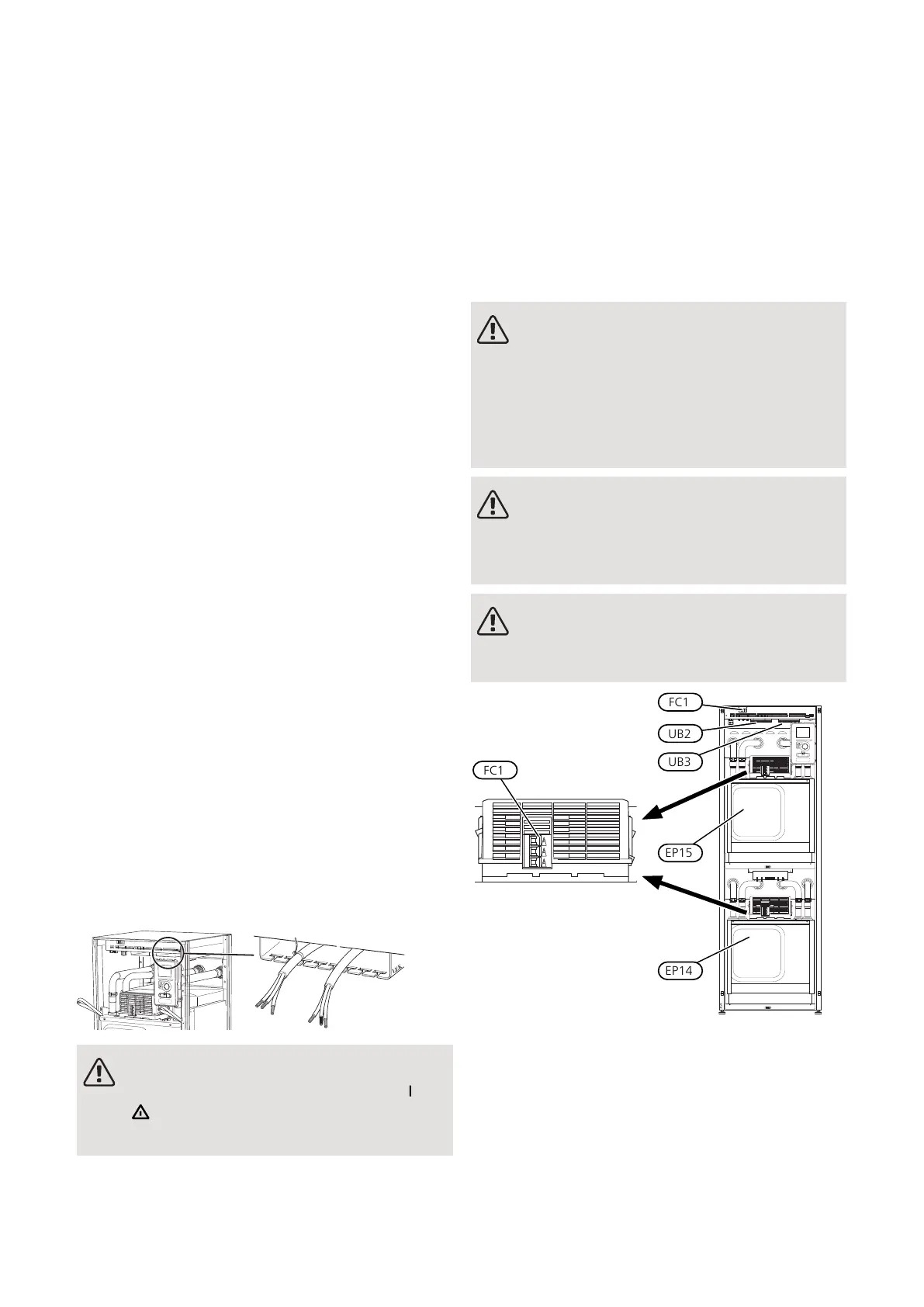

MINIATURE CIRCUIT-BREAKER
The heat pump operating circuit and some of its internal
components are internally fused by a miniature circuit
breaker (FC1).
Miniature circuit-breakers (EP14-FC1) and (EP15-FC1)
cut the power to the relevant compressor if the current
is too high.
23Chapter 5 | Electrical connectionsNIBE F1345
5 Electrical connections

Nibe F1345 Series Specifications

General

Refrigerant	R410A
Control System	NIBE SMO 40
Max Flow Temperature	65°C
Cooling Capacity	Not explicitly stated in general specifications. Depends on the specific model and installation conditions.
COP	4.5
Electrical Connection	400V 3N~
EER (Cooling)	Not explicitly stated in general specifications. Depends on the specific model and installation conditions.
Number of Compressors	1 or 2 (depending on model)
