Nibe F1345 Series User Manual

F1345 24/30 KW DOCKED WITH ELECTRIC ADDITIONAL HEAT AND HOT WATER HEATER
(FLOATING CONDENSING)
-EB100-BT1
P
-BP6
-CM3
-QM
21
-FL3
-QM33
-EB100
-QM53 -HQ13
-RM11
-HQ12
-RM10
-FL10
-FL11
-EP15
-EP14
-RM13
-FL13
-FL12
-FL2
-CM1
-EB100-QN10
-CP5
-EB100
-BT7
-EB100
-BT6
-EB1
-EB1
-FL10
-QM42
-QM43
-RN11
-RM21
-EB100-BT71
-EB100-BT25
-GP10
-CP4
-QM57
-HQ15 -QM56
-RM12 -QM55
-HQ14 -QM54
-QM52
-QM51
-QM50
-XL28
-QM34
-EP12
-XL27

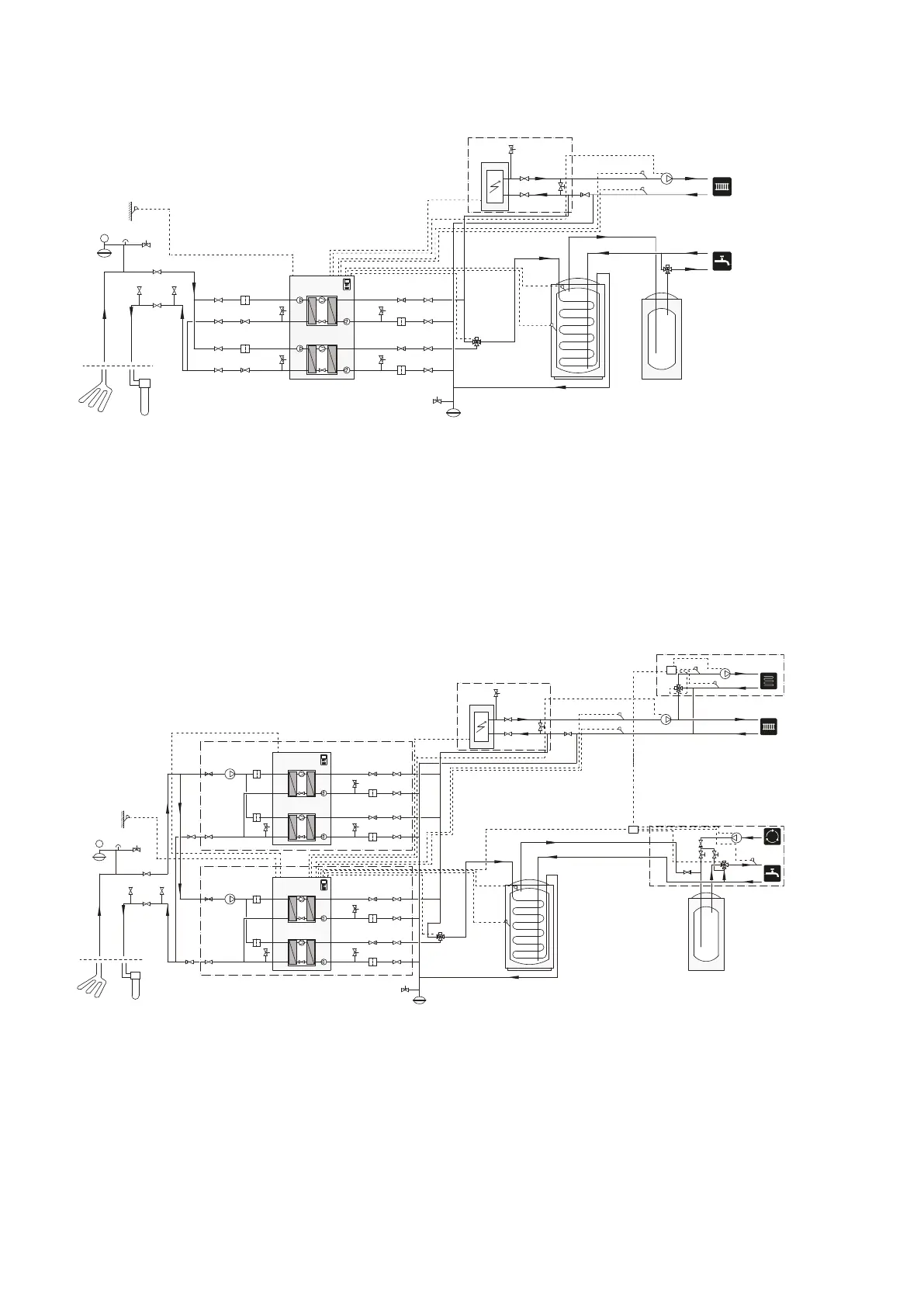

The heat pump (EB100) prioritises charging of hot water with a cooling module (EP14) via a reversing valve (EB100-
QN10). When the water heater/accumulator tank (CP5) is fully charged, (EB100-QN10) switches to the heating
circuit. When there is a demand for heat, cooling module (EP15) starts first. On greater demand, cooling module
(EP14) also starts for heating operation.
Additional heat (EB1) is connected automatically, when the energy requirement exceeds the heat pump capacity.
TWO F1345 40/60 KW DOCKED WITH ELECTRIC ADDITIONAL HEAT AND WATER HEATER
(FLOATING CONDENSING)


-EB100-QN10
-FL3
-BT6
-GP10
-EB100-BT25
-QM43
-EB100-BT71
-EB
1
-EB1
-QM42
-FL10
-RM21
-XL28
-XL27
P
-EB100-BT1
-CM3
-BP6
-QM21
-QM33
-QM34
-EP12
-BT7
-EB101
-EB101
-CP5
-EB100
-EB100
-EB100
-EP21
-AA5
-BT2
-QN25
-GP20
-BT3
-RN11
-EP15
-EP14
-FL2
-CM1
-QM50
-RM12 -QM55
-FL10
-FL12
-QM54
-QM57
-HQ14
-HQ15
-FL13
-QM53
-HQ13
-HQ12
-RM13
-QM56
-EP15
-EP14
-QM50
-RM12 -QM55
-FL10
-FL12
-QM54
-QM57
-HQ14
-HQ15
-FL13
-QM53
-RM13
-RM10
-RM10
-QM56
-GP11
-BT70
-QZ-AA5
-QZ1
-RM23
-RN20
-RM24
-RN21
-FQ1
-CP4
-GP16
-HQ13
-HQ12
-GP16
POOL1
The heat pump (EB100) prioritises charging of hot water with a cooling module (EP14) via a reversing valve (EB100-
QN10). When the water heater/accumulator tank (CP5) is fully charged, (EB100-QN10) switches to the heating
circuit. When there is a demand for heat, cooling module (EP15) starts in heat pump (EB101) first. In the event
of a large demand, cooling module (EP14) also starts in (EB101) for heating operation.
Additional heat (EB1) is connected automatically, when the energy requirement exceeds the heat pump capacity.
NIBE F1345Chapter 4 | Pipe connections22

Nibe F1345 Series Specifications

General

Refrigerant	R410A
Control System	NIBE SMO 40
Max Flow Temperature	65°C
Cooling Capacity	Not explicitly stated in general specifications. Depends on the specific model and installation conditions.
COP	4.5
Electrical Connection	400V 3N~
EER (Cooling)	Not explicitly stated in general specifications. Depends on the specific model and installation conditions.
Number of Compressors	1 or 2 (depending on model)
