Nibe F2040 Technical Manual

Electrical connection

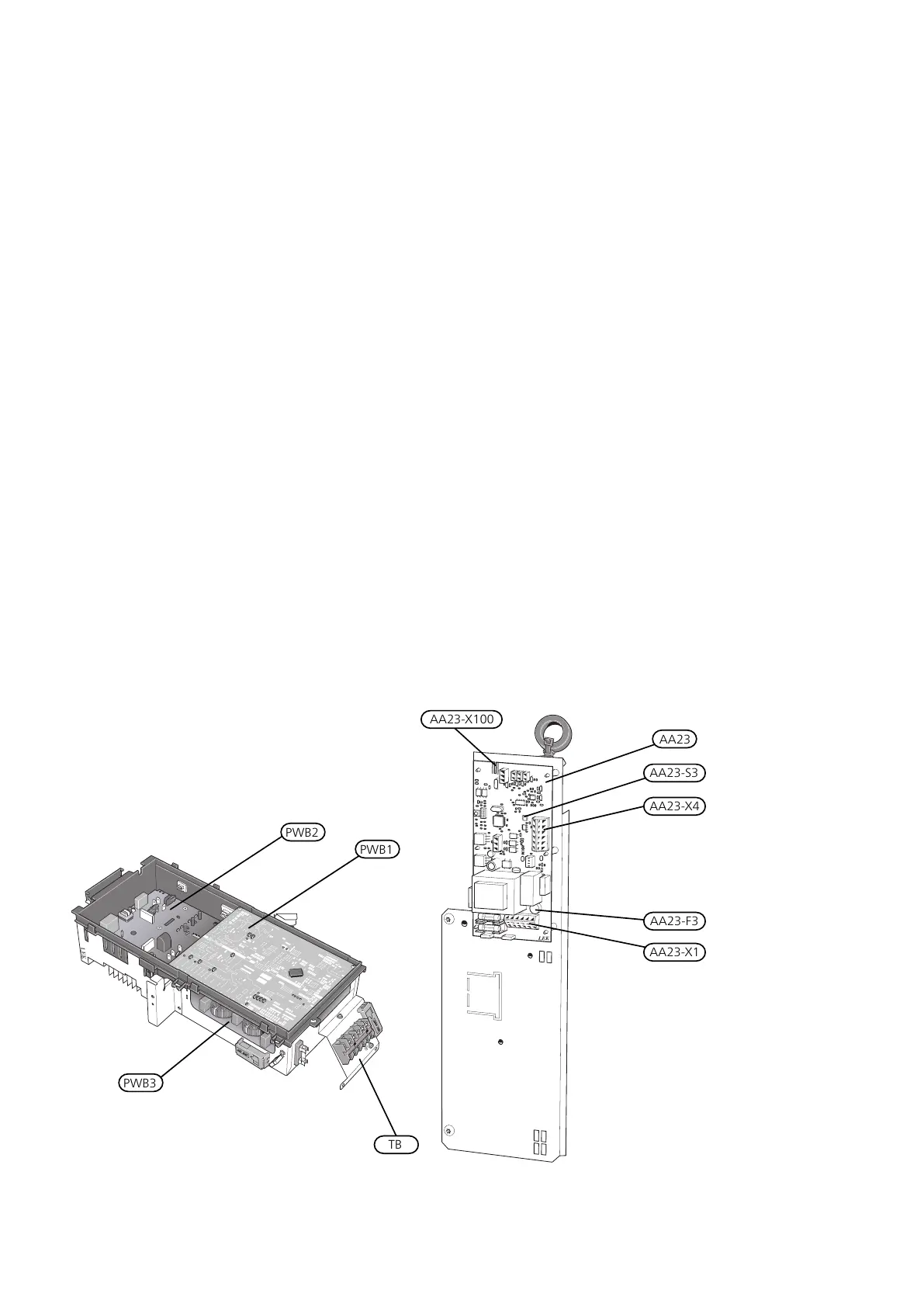

Electrical components
Communication boardAA23
Fuse for external heating cable (250 mA),
max 45 W.
AA23-F3
DIP switch, addressing of outdoor unitAA23-S3
Terminal block, KVRAA23-X1
Terminal block, communication from indoor
module
AA23-X4
Communication with TBAA23-
X100
Compressor heaterEB10 (CH)
Drip tray heaterEB11 (DH)
Main fuse compressor unitF
FanGQ1
(FM01)
FanGQ2
(FM02)
Control boardPWB1
Inverter boardPWB2
Filter boardPWB3
Terminal block, incoming supply and com-
munication with board AA23
TB
F2040-8
LEK
LEK
AA23
AA23-F3
AA23-X4
AA23-X1
AA23-S3
PWB2
PWB1
PWB3
AA23-X100
TB
11Chapter 2 | The heat pump designNIBE™ F2040

Nibe F2040 Specifications

General

Type	Air/water heat pump
Refrigerant	R410A
Operating Temperature Range Heating	-20°C to 35°C
Operating Temperature Range Cooling	10°C to 46°C
Sound Power Level	56-62 dB(A) (depending on model)
