Nibe F2040 Technical Manual

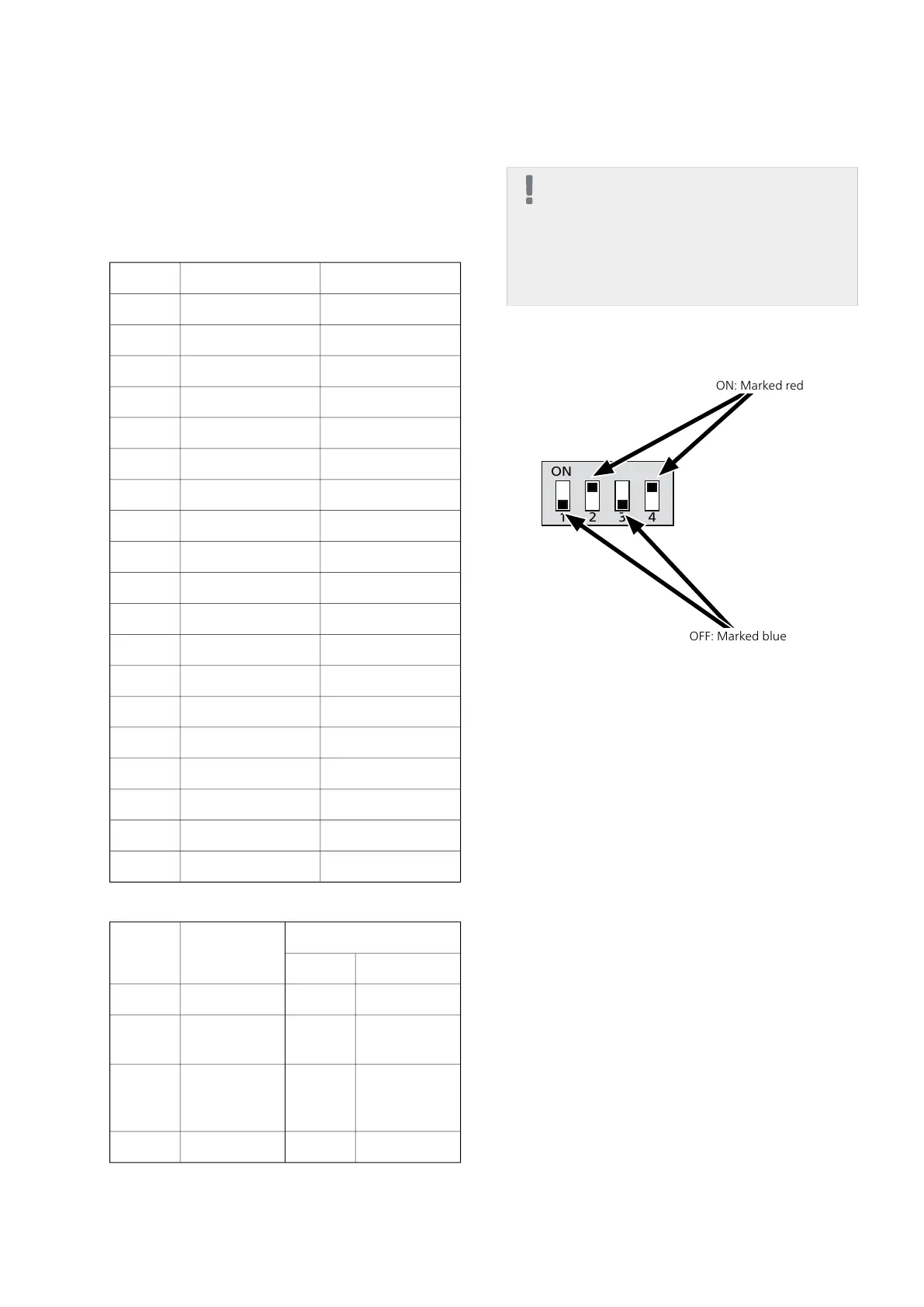

Settings DIP Switch
8kW
Control board
NotesFactory settingSwitches
*See the table belowOFFSW3-1*
*See the table belowOFFSW3-2*
OFFSW3-3
ONSW3-4
ONSW4-1
ONSW4-2
OFFSW4-3
OFFSW4-4
OFFSW5-1
OFFSW5-2
OFFSW5-3
OFFSW5-4
OFFSW7-1
OFFSW7-2
OFFSW7-3
OFFSW8-1
OFFSW8-2
*See the table belowOFFSW8-3*
PushbuttonOFFSW9*
*DIP-Switch Function
SettingFunctionSwitch
ONOFF
Cold regionNormalDefrostingSW3-1
Snow guardNormalSnow guard
monitor
SW3-2
5 minutes30
minutes
Short com-
pressor start
delay
SW8-3
Pump downSW9
NOTE DIP-Switch markings-Only on original board
The voltage to the outdoor unit must always
be switched off before the DIP switches' set-
tings are changed. When replacing the control
board, set the DIP switches in the same posi-
tion as the previous setting or according to
factory settings.
ON
1
2 3 4
ON: Marked red
OFF: Marked blue
NIBE™ F2040Chapter 5 | Component description42

Nibe F2040 Specifications

General

Type	Air/water heat pump
Refrigerant	R410A
Operating Temperature Range Heating	-20°C to 35°C
Operating Temperature Range Cooling	10°C to 46°C
Sound Power Level	56-62 dB(A) (depending on model)
