Compressor (GQ10)
Max operating currentWinding resistance*TypeSize
15 A1.154 ΩTwin Rotary8 kW
22 A0.293 ΩTwin Rotary12 kW
25 A0.293 ΩTwin Rotary16 kW
* at 20 °C +/- 10 %
Oil volumeType of oilSize
0.68 lMA688 kW
0.9 lMA6812 kW
0.9 lMA6816 kW
Automatic reset temp. alarm High hotgasCut-out value high hot gas
85 °C115 °C

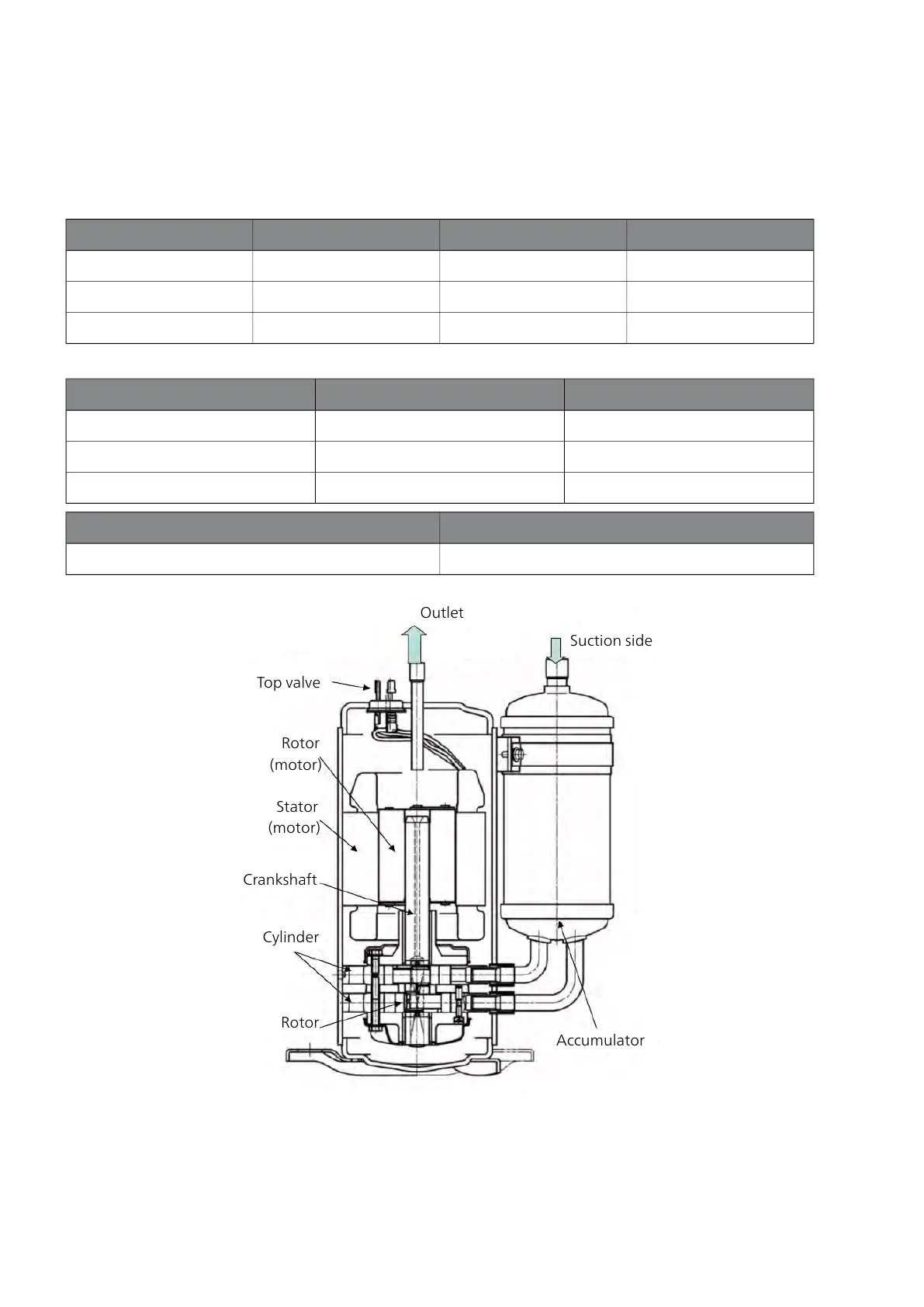

Suction side
Accumulator
Rotor
Cylinder
Crankshaft
Stator
(motor)
Rotor
(motor)
Top valve
Outlet
