Electrical connection
13
For the Installer
FIGHTER 1220
FIGHTER 1220 must be installed via an isolator
switch with a minimum breaking gap of 3 mm. Other
electrical equipment, except the outdoor sensor and
the current sensors, are connected at the factory.
Disconnect the heat pump before insulation testing
the house wiring.

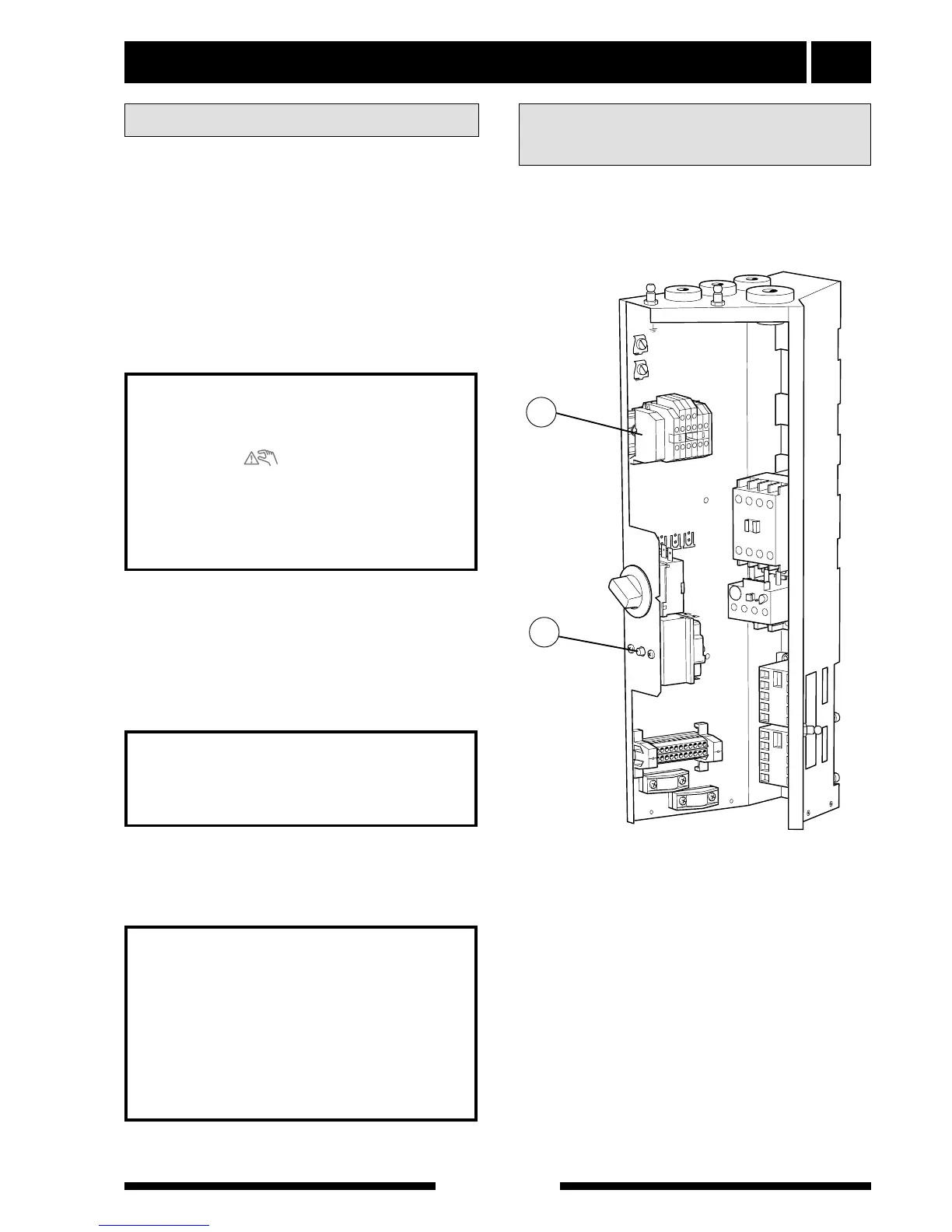

The heat pump is connected on terminal block (9) to
3 x 400V + N + PE via the junction box with fuses.
If a miniature circuit breaker is used this should have
motor characteristic “D” (compressor operation). For
fuse ratings, see Technical data.
Connection
NOTE!
Reset the temperature limiter,
it may have tripped during transport.
NOTE!
The switch (8) must not be moved
from 1 or “ ” until the boiler has
been filled with water. Otherwise the
temperature limiter, thermostat,
compressor or the immersion heater
can be damaged.
The automatic heating control system, circulation
pumps and their wiring, are internally fuse protected
with a miniature circuit breaker (1).
NOTE!
Electrical installation and service must
be carried out under the supervision of
a qualified electrician. Electrical
installation and wiring must be carried
out in accordance with the stipulations
in force.
Connection must not be carried out without the per-
mission of the electricity supplier and under the super-
vision of a qualified electrician.
The temperature limiter (25) cuts off the supply to the
immersion heater if the temperature rises to between
90 and 100 °C; it can be manually reset by pressing
the button on the temperature limiter.
The temperature limiter (25) is accessible behind the
upper service cover. The temperature limiter is reset
by firmly pressing in its button.
Resetting
the temperature limiter
9
