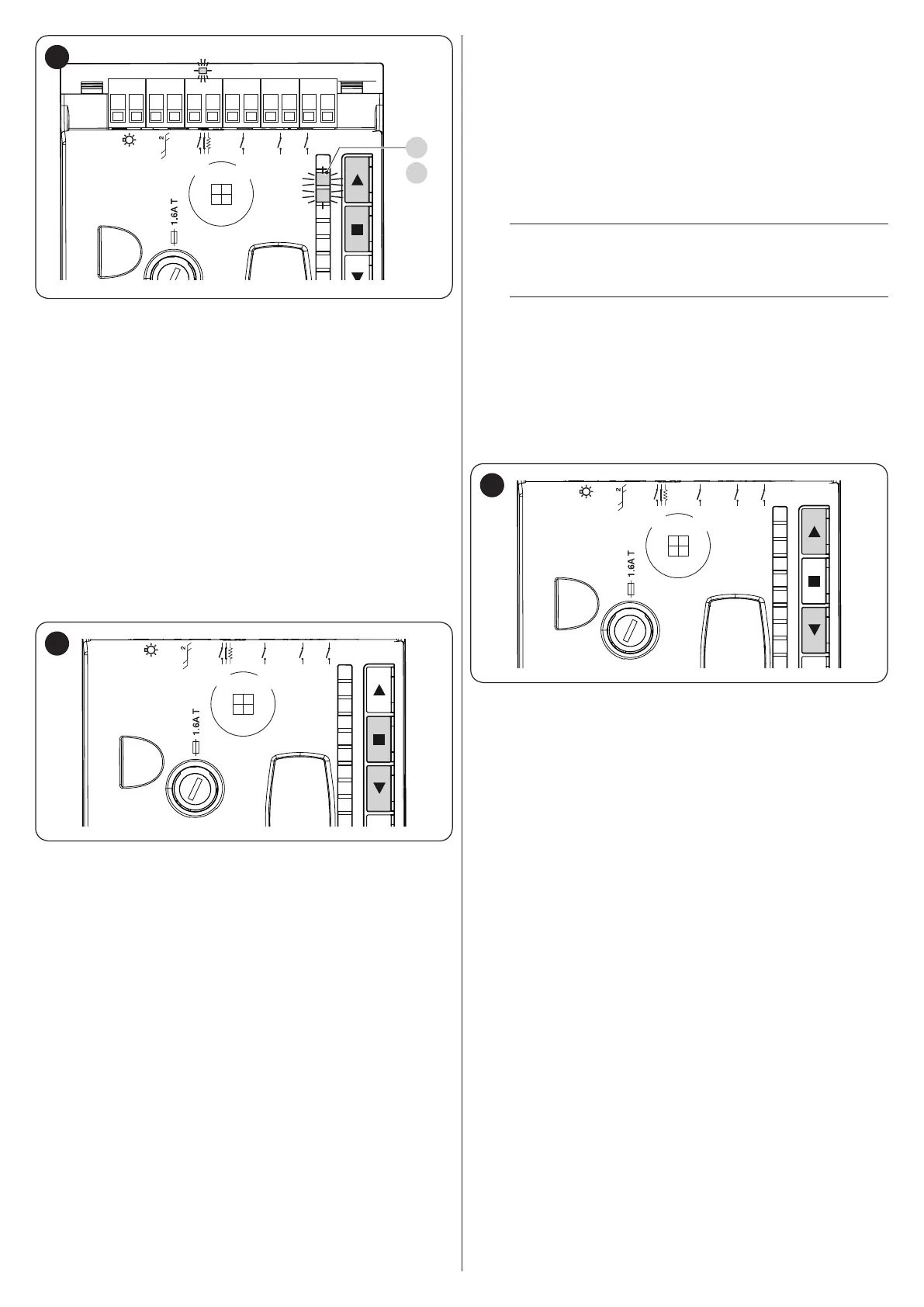

ENGLISH – 15
L1L2L3L4L5L6
L7
Flash
Bluebus
Stop
Sbs
Open
Close
Flash
Bluebus
Stop Sbs Open Close
L1
L2
30
To do this:
1. simultaneously press and hold the
p
and
o
buttons
2. release the buttons when LEDs “L1” and “L2” start ash-
ing quickly (after roughly 3 seconds)
3. wait a few seconds until the control unit has completed the
device learning phase
4. once this phase terminates, the “Stop” LED must be lit
and LEDs “L1” and “L2” must switch off (LEDs “L3” and
L4” could start ashing).
The self-learning phase of the connected devices can be re-
peated at any time also after the installation, for example when-
ever a device must be added.
5.3 LEARNING OF THE MECHANICAL STOP
POSITIONS
Once the connected devices have been learned, the mechani-
cal stop positions must be learned (maximum opening and max-
imum closing).
L1L2L3L4L5L6L7L8
Flash
Bluebus
Stop
Sbs
Open
Close
31
To do this:
1. unlock the gearmotor with the relevant key provided (refer
to the “Manually unlocking and locking the gearmotor
paragraph)
2. manually move the boom to about half-way (45°) and
leave it stationary
3. lock the gearmotor
4. simultaneously press and hold the
q
and
o
buttons
5. release the buttons when the manoeuvre starts (after
roughly 3 seconds)
6. wait for the control unit to complete the learning phase:
boom closing, opening and closing
7. press the
p
button to perform a complete boom opening
manoeuvre
8. press the
q
button to perform a complete boom closing
manoeuvre
9. while the manoeuvres are being executed, make sure that
the boom’s balancing lever strikes the mechanical stops
of the limit switch. If this does not occur, stop the proce-
dure, adjust the mechanical stops of the limit switch and
repeat the procedure from the beginning.
During the execution of these procedures, the control unit mem-
orises the force required to perform these manoeuvres.
a
Do not interrupt the execution of the manoeuvres: if
this occurs, the entire procedure must be repeated
from the beginning.
a
If case of changes to the speed, motor direction and
long/short slowdown, the entire procedure must be
repeated again.
5.4 CHECKING THE BOOM’S MOVEMENT
Once the devices have been learned, it is advisable to carry out
a few manoeuvres in order to verify that the gate moves prop-
erly.
L1L2L3L4L5L6L7L8
Flash
Bluebus
Stop
Sbs
Open
Close
32
To do this:
1. press the
p
button to command an “Open” manoeuvre;
check that the boom starts slowing down before reaching
the open position
2. press the
q
button to command a “Close” manoeuvre;
check that the boom starts slowing down before reaching
the closed position
3. during the manoeuvre, check that the LED warning light, if
present, ashes alternatively on and off every 0.5 seconds
4. open and close the gate several times to make sure that
there are no points of excessive friction and that there are
no defects in the assembly or adjustments.
After the initial opening and closing manoeuvres, the values of
parameters “L5and L6” of the Level 2 programming menu will
be automatically modied by the control unit to optimally adapt
to the installation.
