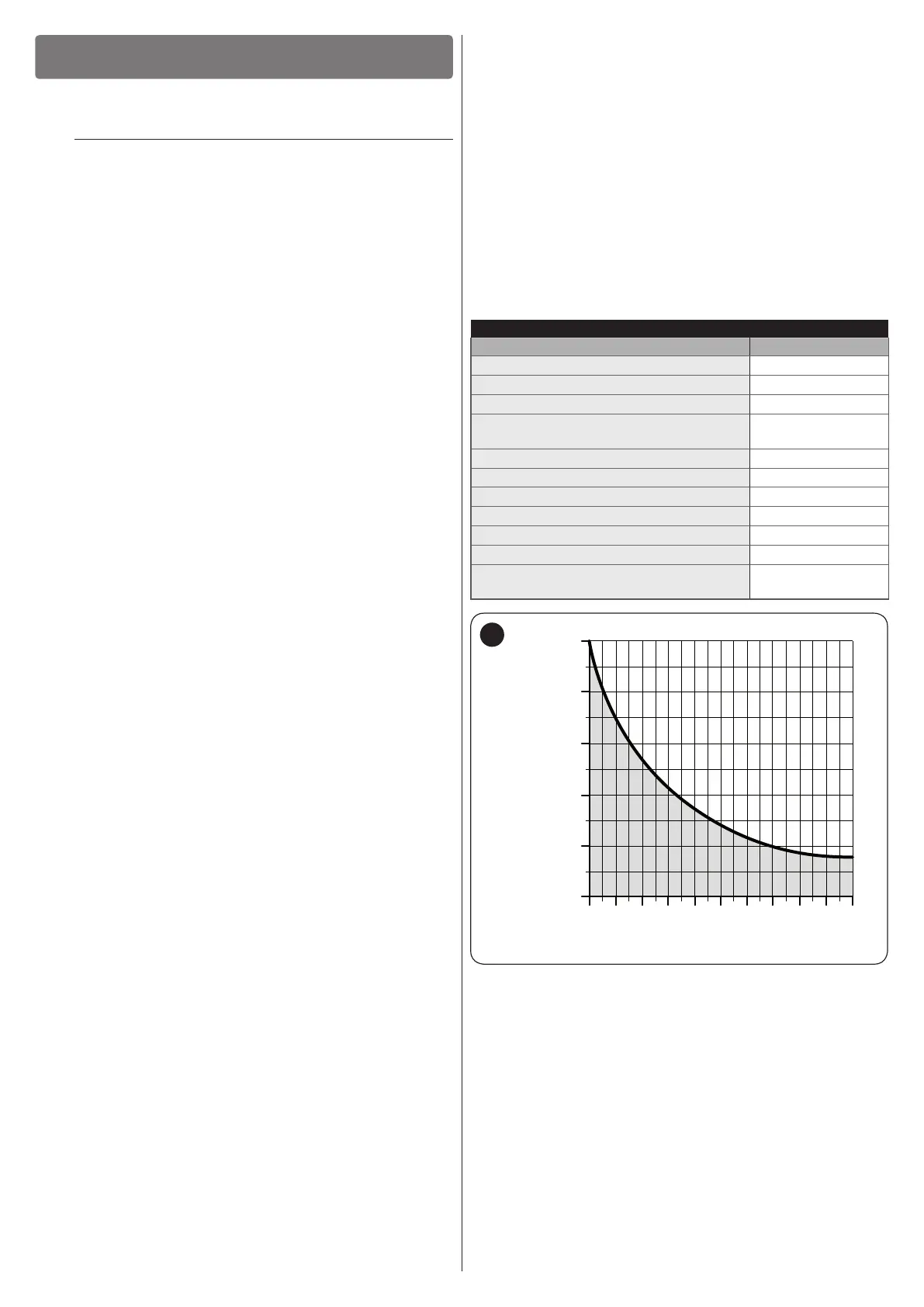

4 – ENGLISH
INSTALLATION
3
3 INSTALLATION
3.1 PRE-INSTALLATION CHECKS
a
The installation must be carried out by qualied
personnel in compliance with the current legisla-
tion, standards and regulations, and with the in-
structions provided in this manual.
Before proceeding with the product’s installation, it is necessary
to:
check the integrity of the supply
check that all the materials are in good working order and
suited to the intended use
check whether it is possible to observe the operating limits
specied in the paragraph “Product usage limits
check that the installation location is compatible with the over-
all clearance of the product (see “Figure 3“)
check that the surface chosen for installing the boom gate is
solid and can ensure stable anchorage
make sure that the installation area is not subject to ooding; if
necessary, the product must be installed appropriately raised
above ground level
check that the space surrounding the boom gate allows for
executing the manual manoeuvres easily and safely
check that there are no obstacles along the boom’s path ca-
pable of hampering the opening and closing manoeuvres
check that each device to be installed lies in a position that is
protected against the risk of accidental impact.
verify that the mounting positions of the various devices are
protected against impacts and that the mounting surfaces are
sufciently sturdy
prevent any parts of the automation from being immersed in
water or other liquids
keep the product away from heat sources and open ames
and acid, saline or potentially explosive atmospheres; these
may damage the product and cause malfunctions or danger-
ous situations
connect the control unit to an electricity supply line equipped
with a safety earthing system
3.2 PRODUCT USAGE LIMITS
Before proceeding with the product’s installation, it is necessary
to:
check that all the values appearing in the “TECHNICAL SPEC-
IFICATIONS” chapter are compatible with the intended use
check that the estimated durability (refer to the paragraph “
Product durability”) is compatible with the intended use
check that all limitations, conditions and warnings appearing
in this manual can be fully observed.
3.2.1 Product durability
The product’s durability is its average economic life value and is
strongly inuenced by the degree of severity of the manoeuvres:
in other words, the sum of all factors that contribute to product
wear.
To estimate the durability of your automated device, proceed
as follows:
1. add the values of the items in “Table 1 relative to the
system’s conditions
2. in the graph shown in “Figure 2”, from the value obtained
above, trace a vertical line until it intersects the curve;
from this point trace a horizontal line until it intersects the
line of the “manoeuvre cycles”. The value obtained is the
estimated lifetime of your product.
The durability values shown in the graph can only be obtained if
the maintenance schedule is strictly observed – see the “PROD-
UCT MAINTENANCEchapter. The durability is estimated on
the basis of the design calculations and the results of tests ef-
fected on prototypes. Being an estimate, therefore, it offers no
explicit guarantee of the product’s actual useful life.
Example of durability calculation: S4-BAR
Table 1shows the “severity indices” for this type of installation:
15% (“Boom with lights model XBA4”), 10% (“Presence of salt”).
These indicators must be added together to obtain the overall
severity index, which in this case is 25%. With the value calcu-
lated (25%), identify along the graph’s horizontal axis (“severity
index”) the value corresponding to the number of “manoeuvre
cycles” that the product can perform throughout its lifetime =
roughly 240.000 cycles.
Table 1
PRODUCT DURABILITY
Severity index
Boom with lights model XBA4
15
Speed levels 3 and 4
5
Speed level 5
20
Manoeuvre interrupted by photocell >
10%
15
Manoeuvre interrupted by Stop > 10%
25
Braking
10
Force equal to 5 or 6
10
Force equal to 7 or 8
10
Presence of salinity
10
Presence of dust and sand
10
Ambient temperature above 40°C and
below 0°C
15
100 20 30 40 50 60 70 80 90
100
Manoeuvre cycles (n°)
Severity index (%)
100.000
0
200.000
300.000
400.000
500.000
2
