PROGRAMMING
7
7 PROGRAMMING

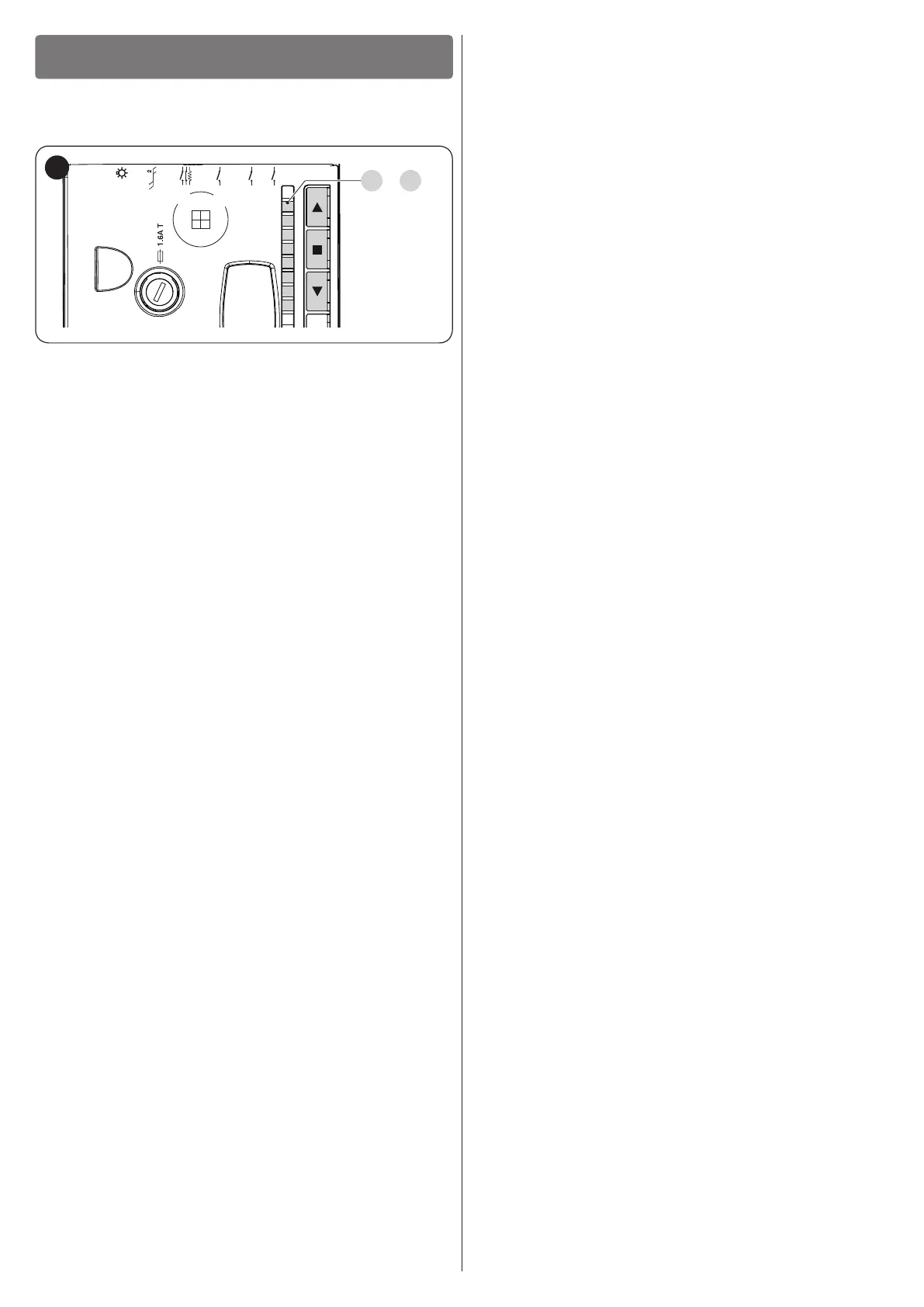

There are 3 buttons on the control unit:
p
,
o
and
q
(“Figure
38”) which can be used both to command the control unit during
the testing phase and to programme the available functions.
L1L2L3L4L5L6L7L8
Flash
Bluebus
Stop
Sbs
Open
Close
L1 ... L8
38
The available programmable functions are grouped into two
levels and their operating status is signalled by eight LEDs “L1
... L8” located on the control unit (LED lit = function enabled;
LED off = function disabled).
7.1 USING THE PROGRAMMING BUTTONS
p
Button for commanding the boom gate opening
Selection button during the programming phase.
o
Button used to stop a manoeuvre
If pressed for more than 5 seconds, it allows for entering
the programming mode.
q
Button for commanding the boom gate closing
Selection button during the programming phase.
