ENGLISH – 7

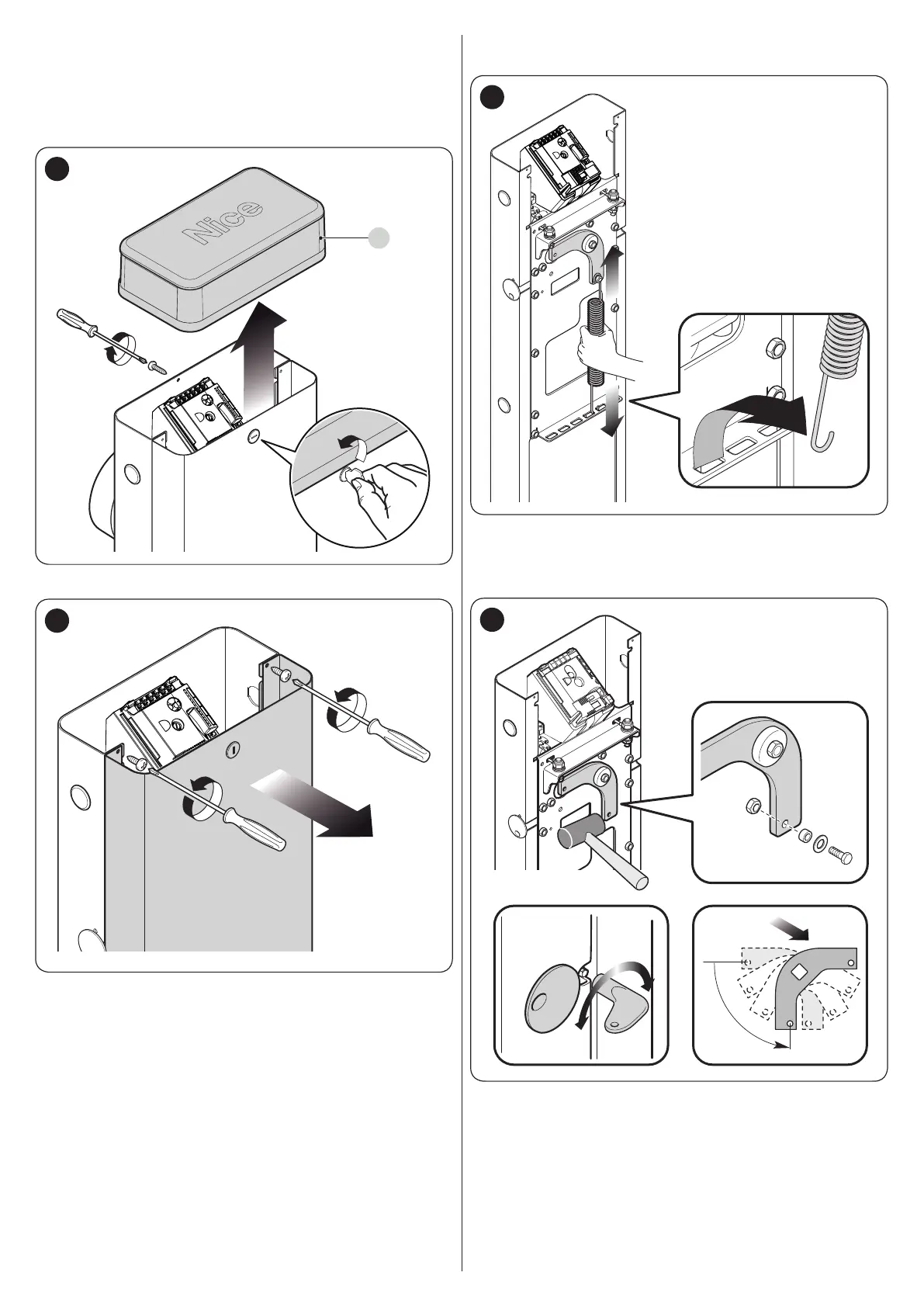

3.6 ADJUSTING THE BOOM GATE
The boom gate leaves the factory with the boom closing ma-
noeuvre set towards the left.
To set the closing manoeuvre towards the right, proceed as fol-
lows:
1. remove the upper cover (A) of the boom gate cubicle
A
6
2. loosen the two screws fastening the cubicle panel
7
3. remove the balancing spring, by detaching it from the bal-
ancing lever
8
4. loosen the bolt fastening the balancing spring
5. unlock the gearmotor (refer to the “Manually unlocking
and locking the gearmotor” paragraph) and turn the bal-
ancing lever by 90°
90°
9
