ENGLISH – 5

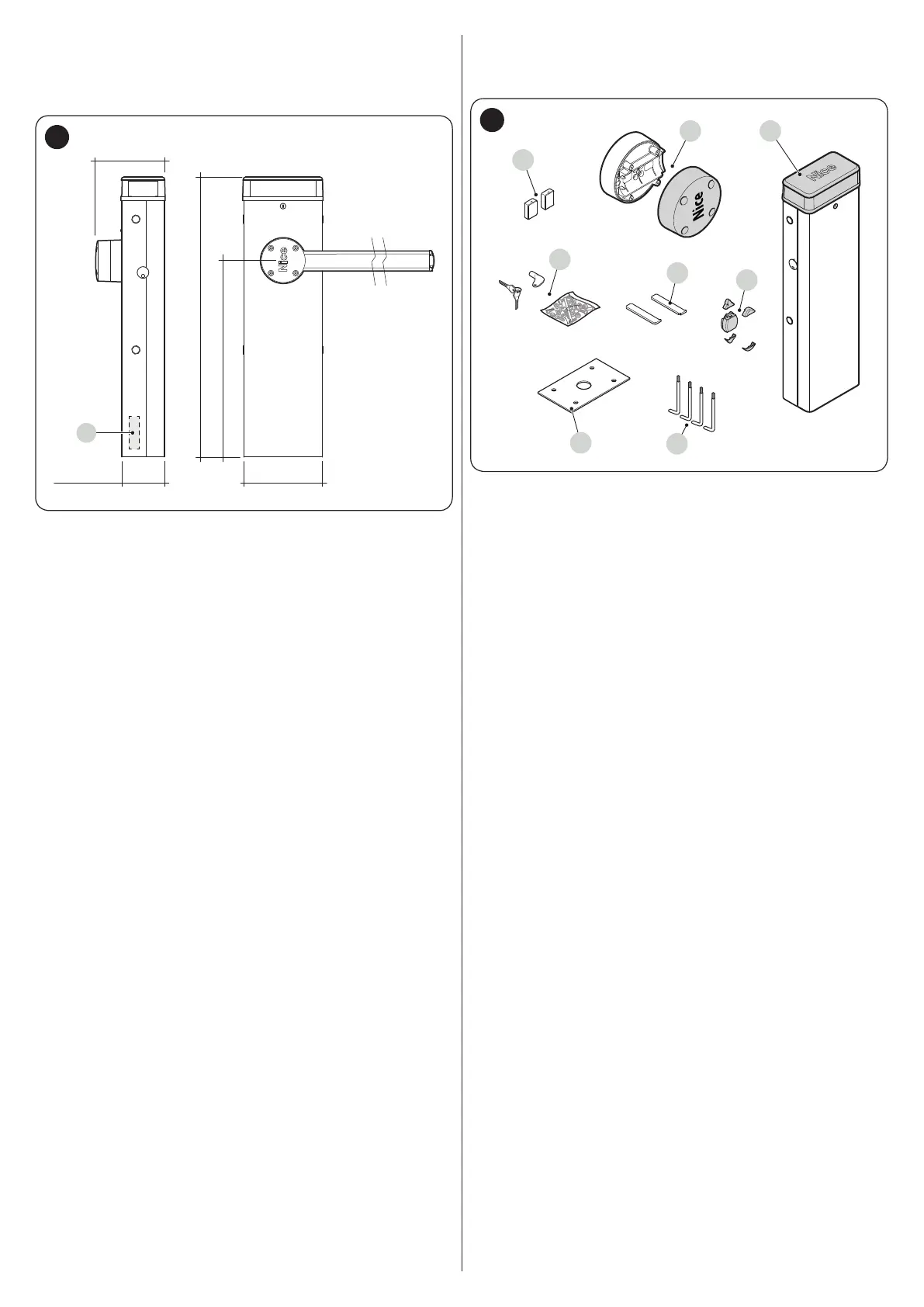

3.3 PRODUCT IDENTIFICATION AND OVERALL
DIMENSIONS
The overall dimensions and the label (A), which allows for iden-
tifying the product, are shown in “Figure 3”.
295 mm
179,5 mm
1146 mm
826 mm
330 mm
A
3
3.4 RECEIPT OF THE PRODUCT
All the components contained in the product’s packaging are
illustrated and listed below.
AB
C
F
G
H
E
D
4
A Boom gate with integrated control unit
B Boom cover and support
C 2 photocell boxes
D 2 boom supporting brackets
E Fixed boom cap; 2 connectors for rubber impact protec-
tors; 2 connectors without rubber impact protectors
F Keys for manually locking and unlocking the boom; key
for the cover lock; metal smallware (screws, washers,
etc.)
G Foundation plate
H 4 anchor bolts
