4. Connections
Digitax SF Instruction Manual
3. Velocity Control Mode
General-Purpose Input General-Purpose Output
Encoder Output RS-485 Communication
2. Internal Velocity Command
Pin
No.
Signal
Description
1
24V
Control power 24V
2
G24V
Control power GND
3
COM+
I/O Power 24V
4
SVON
Servo ON
5
RESET
Alarm reset
6
VCRUN1
Start 1 (CCW rotation)
7
VCRUN2
Start 2 (CW rotation)
8
VCSEL1
Speed Select 1
9
VCSEL2
Speed Select 2
10
VCSEL3
Speed Select 3
11
TLSEL1
Torque Limit
Pin
No.
Signal
Description
12
COM －
I/O power GND
13
MBRK
Motor Brake release
14
SERVO
Servo status
17
T-LIMIT
Torque limiting
18
OCZ
Encoder Z-phase (open collector)
19
SRDY+
Servo ready+
20
SRDY －
Servo ready－
21
ALM+
Alarm status+
22
ALM －
Alarm status－
Pin
No.
Signal
Description
36
OUT_A
A-phase
37
/OUT_A
/A-phase
38
OUT_B
B-phase
39
/OUT_B
/B-phase
40
OUT_Z
Z-phase
41
/OUT_Z
/Z-phase
42
SG
Signal ground
Pin
No.
Signal
Description
44
/485
/Data
43
485
Data
45
SG
Signal ground

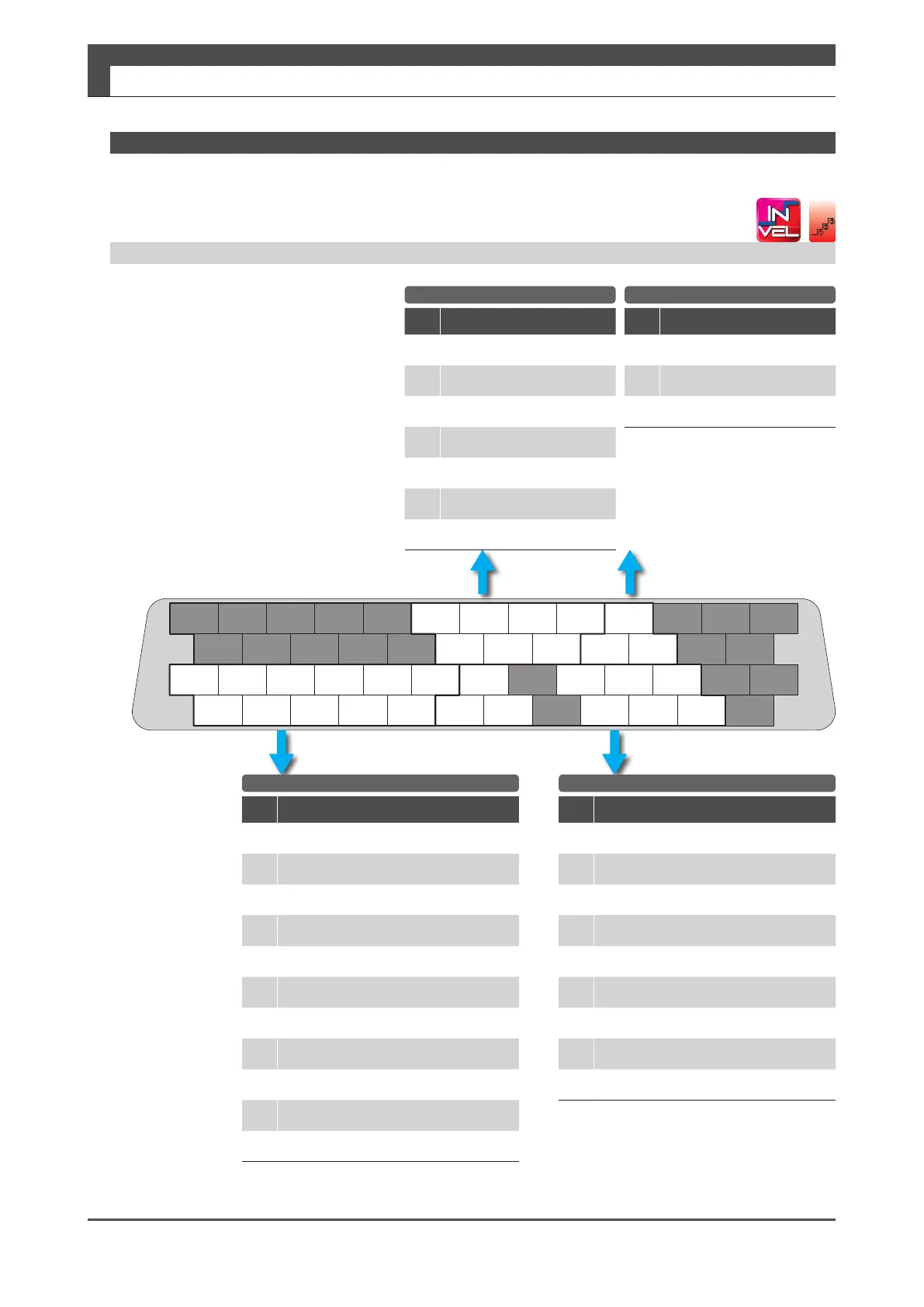

I/O Connector pinout looking at
the pin to be soldered
Pinout Diagram
