Safety information Introduction Product information System configuration
Mechanical
Installation
Electrical Installation
Unidrive M Modular Installation Guide 33
Issue Number: 2
5.5 Mounting methods
Unidrive M size 9, 10 and rectifier can be either surface or through-panel mounted using the appropriate brackets.
Surface mounting is where the drive is simply secured to the enclosure wall/backplate.
Through-panel mounting is where the drive is secured with the heatsink protruding through the enclosure panel to the external environment. This has
the effect of reducing the temperature within the enclosure.
The following drawings show the dimensions of the drive and mounting holes for each method to allow a back plate to be prepared.
5.5.1 Surface mounting

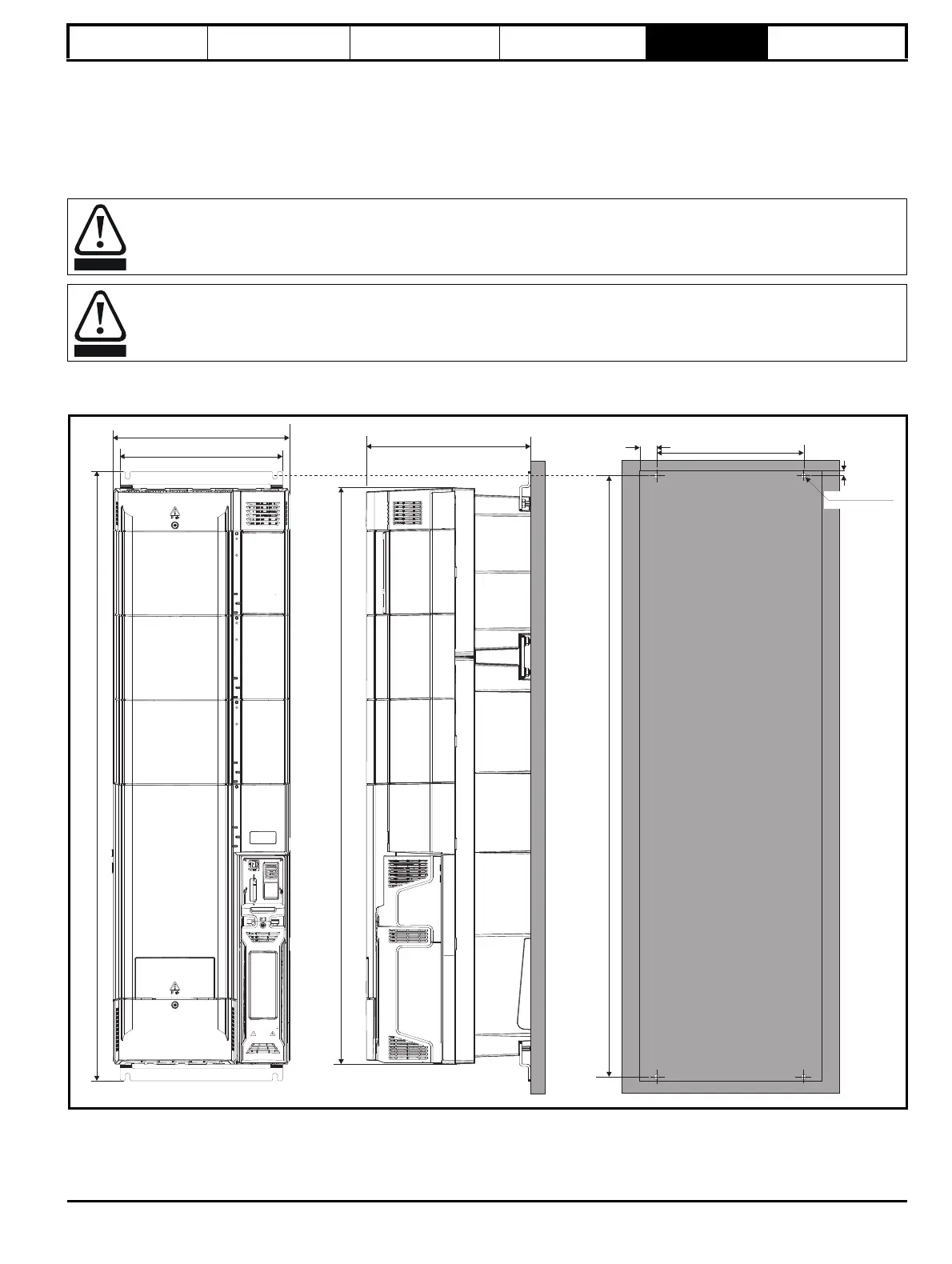

Figure 5-12 Surface mounting the Unidrive M size 9E/10E
If the drive has been used at high load levels for a period of time, the heatsink can reach temperatures in excess of 70°C (158°F). Human
contact with the heatsink should be prevented.
Many of the drives in this product range weigh in excess of 15 kg (33 lb). Use appropriate safeguards when lifting these models.
259 mm (10.20 in)
Æ9.0 mm (0.35 in)
x 4 holes
1051 mm (41.38 in)
290 mm (11.42 in)
1010 mm (39.76 in)
310 mm (12.21 in)
285 mm (11.22 in)
1069 mm (42.09 in)
9mm
(0.35 in)
26 mm
(1.02 in)
