Safety information Introduction Product information System configuration
Mechanical
Installation
Electrical Installation
10 Unidrive M Modular Installation Guide
Issue Number: 2
2.5 Input line reactor
The INL line reactor must be used in conjunction with the Unidrive M
rectifiers. See section 6.2.2 Input line reactor specifications on page 59
for further information.

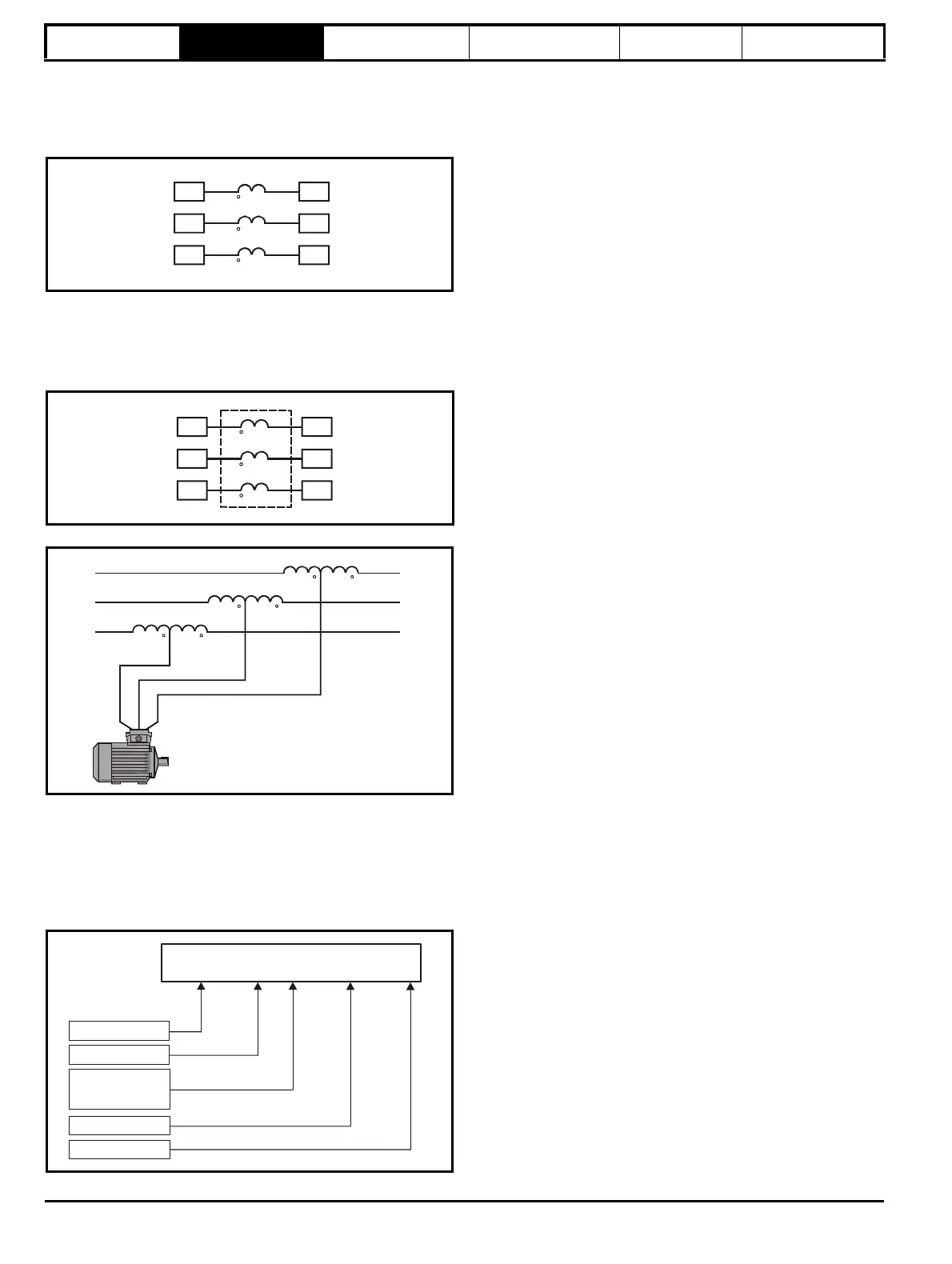

Figure 2-5 Single input line reactor (INLX0X)/force cooled (INLX0XW)
2.6 Output sharing choke
The OTL output sharing choke must be used on the output of Unidrive M
when more than one module is paralleled together.
Figure 2-6 Single output sharing choke (OTLX0X)
Figure 2-7 Dual output sharing choke (OTLX1X)
For a physical representation of the input line reactors and output
sharing chokes, see section 2.5 and section 2.6 Output sharing
choke on page 10.
2.7 Model number
The way in which the model numbers for the Unidrive M range are
formed is illustrated below.
Figure 2-8 Rectifier model number
UVW
U1 U2
V1 V2
W1 W2
Drive 1 Drive 2
RECT
10 6 02480
A
Model
Frame size
Voltage 2=200 V
4=400 V
6=690 V
Current rating
Rectifier format
