Unidrive M Modular Installation Guide 49
Issue Number: 2

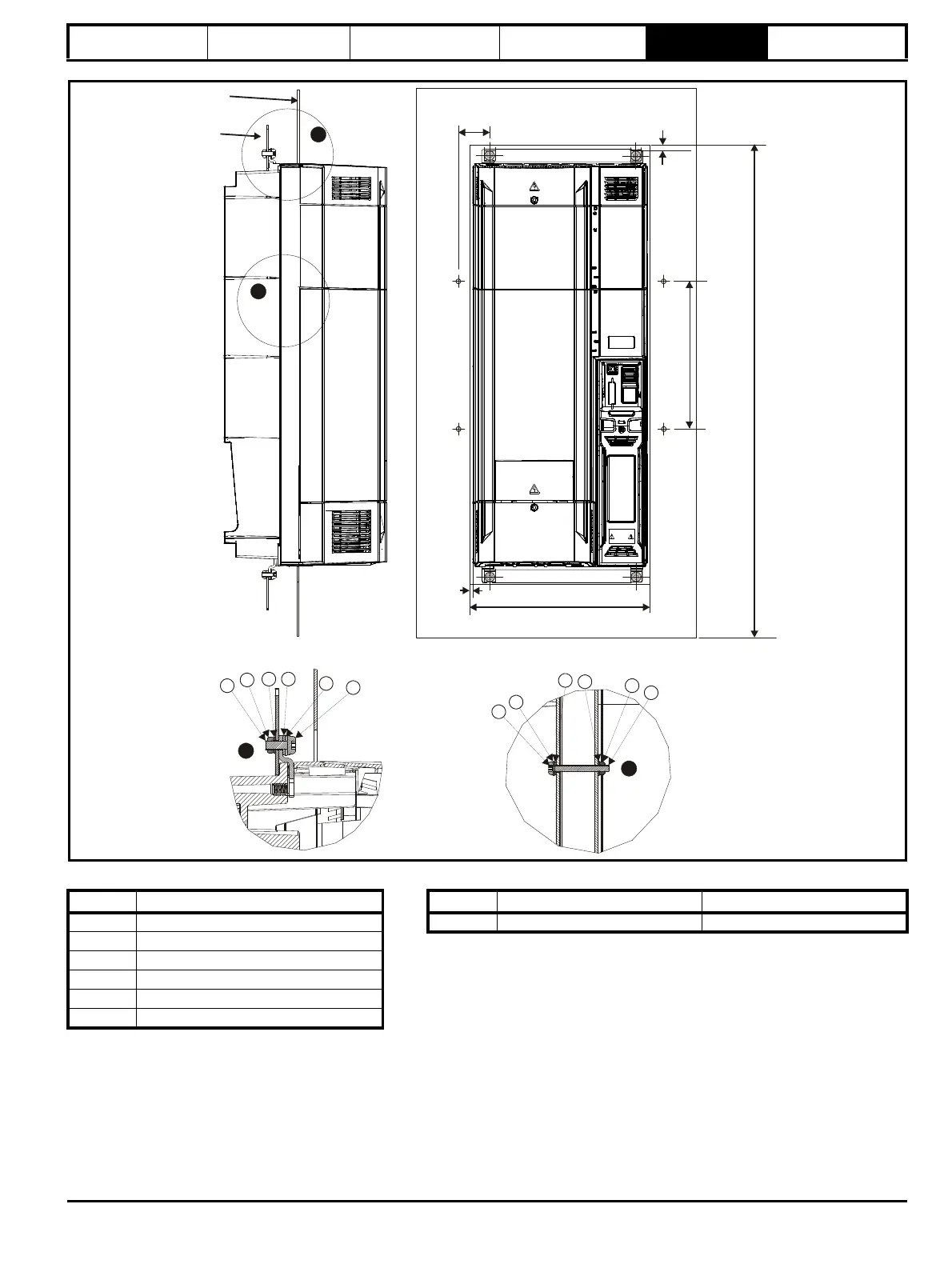

Figure 5-33 Option 2 for achieving IP55 (NEMA 12) through-panel mounting
50 mm max
(1.97 in max)
5 mm
(0.2 in)
253 mm
(9.96 in)
placed
centrally
along
length
817 mm
(32.17 in)
5 mm
(0.2 in)
817 mm (32.17 in)
Backplate
Enclosure
rear wall
A
B
A
Table 5-6 Description of fixings Table 5-7 Quantity of nylon washers included in the kit boxes
Item Description Size Quantity of M8 (A) Quantity of M6 (B)
1Bolt All 4 4
2Flat washer
3 Nylon washer (from kitbox)
4Flat washer
5 Spring washer
6Nut
