Digistart D3: User Guide 27
Issue: G
4.3 Power connections
4.3.1 Motor Connection
The Digistart D3 can be connected to the motor in-line or inside delta (also called three-wire and six-wire connection).
When connecting in inside delta, enter the motor full load current (FLC) for Pr 1A. The Digistart D3 will automatically
detect whether the motor is connected in-line or inside delta and will calculate the correct inside delta current level.
NOTE
For personnel safety, the power terminals on models up to D3-0105-B are protected by snap-off tabs.
When using large cables, it may be necessary to break off these tabs.
Models which are internally bypassed do not require an external bypass contactor.
Internally bypassed models:
D3-0023-B, D3-0043-B, D3-0050-B, D3-0053-B, D3-0076-B, D3-0097-B, D3-0100-B, D3-0105-B, D3-0145-B,
D3-0170-B, D3-0200-B, D3-0220-B, D3-0255-B, D3-0350-B, D3-0425-B, D3-0500-B, D3-0580-B, D3-0700-B,
D3-0820-B, D3-0920-B, D3-1000-B
Non-bypassed models:
D3-0255-N, D3-0360-N, D3-0380-N, D3-0430-N, D3-0620-N, D3-0650-N, D3-0790-N, D3-0930-N, D3-1200-N,
D3-1410-N, D3-1600-N
4.3.2 In-line installation

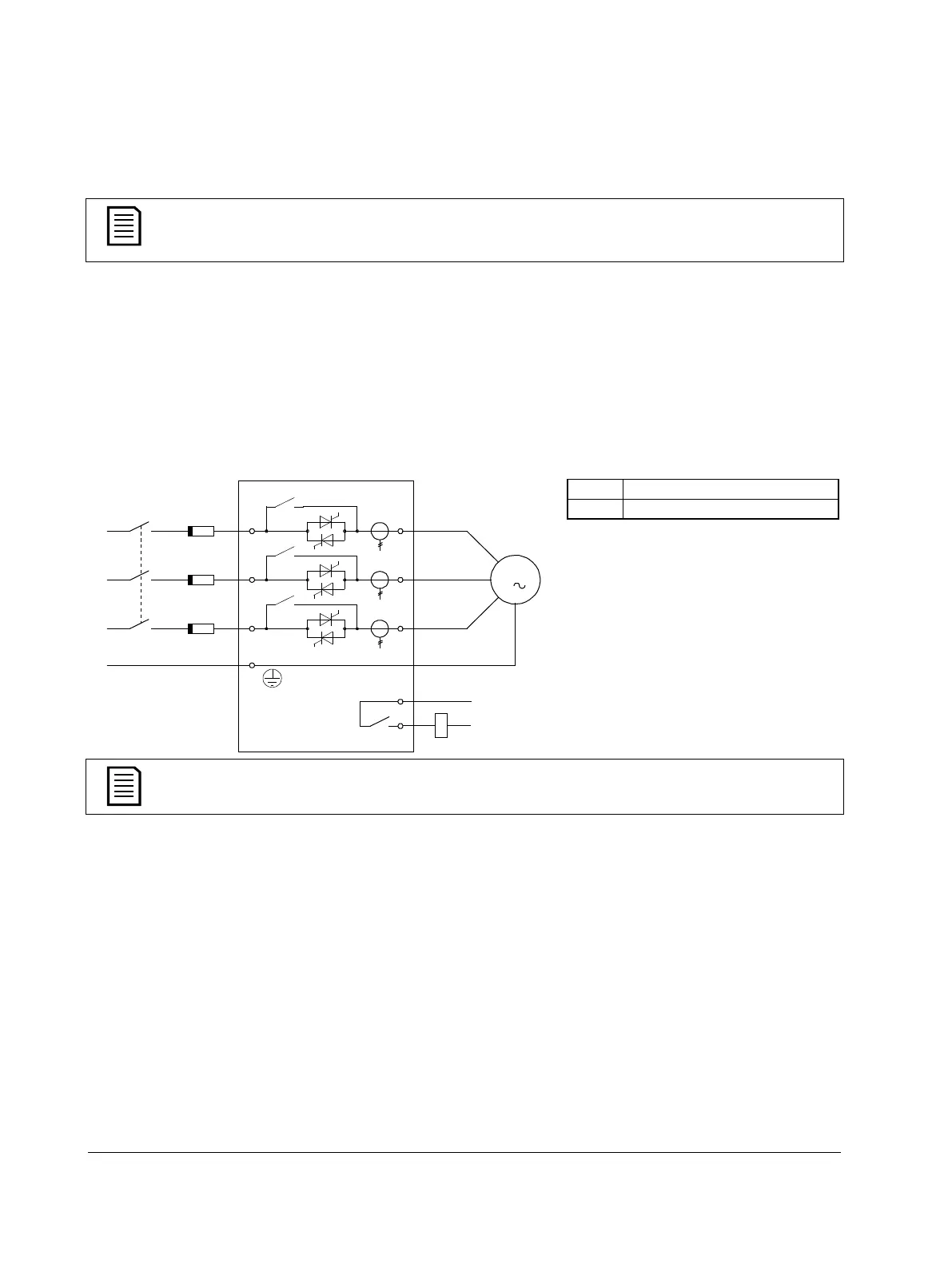

In-line installation, internally bypassed
6/T3
2/T1
5/L3
3/L2
1/L1
COM1
RLO1
4/T2
E
K1
K1 F1
M
3
08341.B
K1
Main contactor
F1
Semiconductor fuses (optional)
NOTE
Main contactor is the default setting for Pr 4A Relay A Action (COM1, RLO1).
