Nidec Digistart D3 User Manual

Digistart D3: User Guide 29
Issue: G

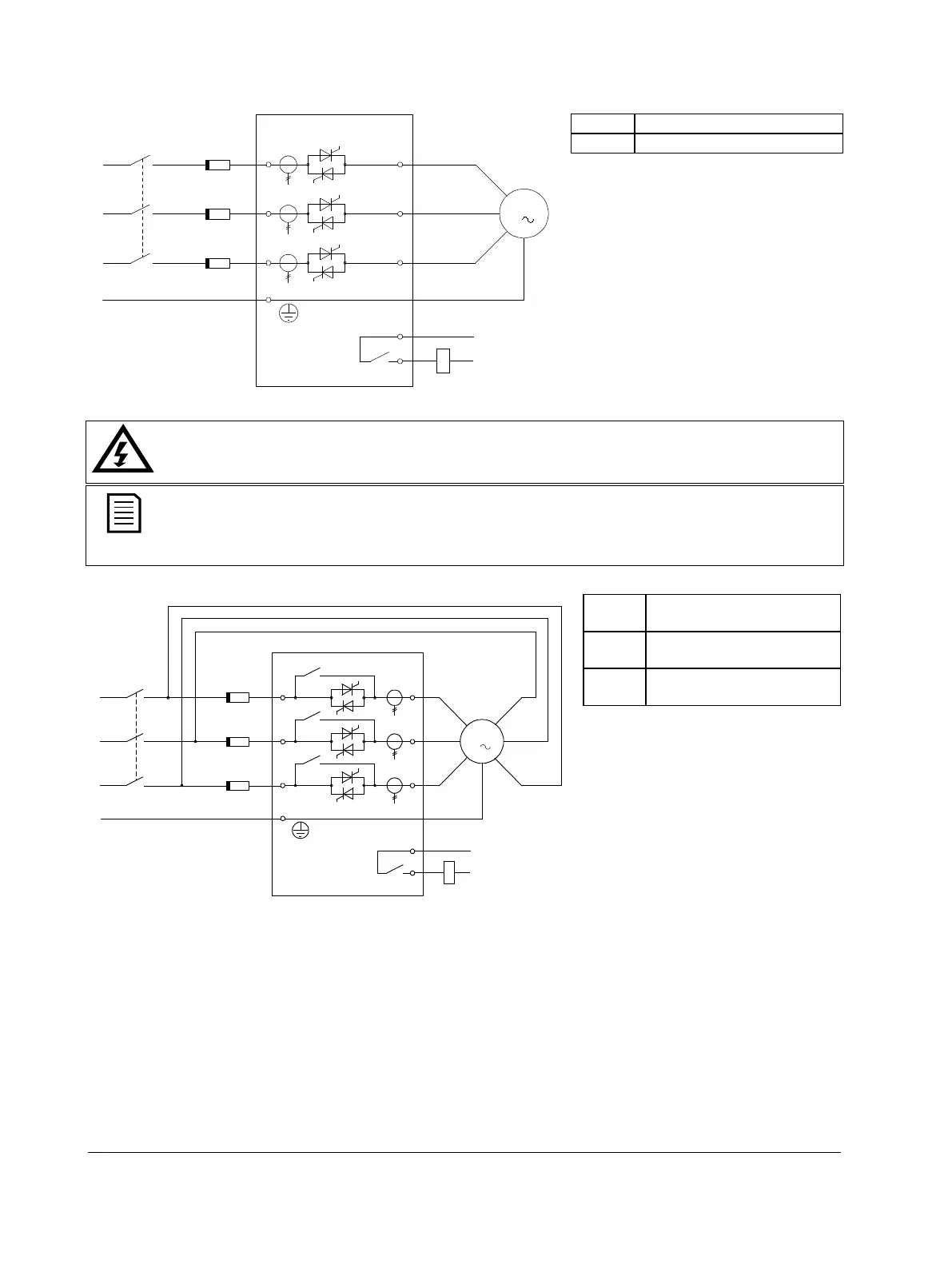

In-line installation, non-bypassed
T3
T1
L3
L2
L1
COM1
RLO1
T2
E
K1
K1 F1
M
3
08343.B
K1
Main contactor
F1
Semiconductor fuses (optional)
4.3.3 Inside delta installation
WARNING
When connecting the Digistart D3 in inside delta configuration, always install a main contactor or shunt trip
circuit breaker.
NOTE
When connecting in inside delta, enter the motor full load current (FLC) for Pr 1A. The Digistart D3 will
automatically detect whether the motor is connected in-line or inside delta and will calculate the correct
inside delta current level.
Inside delta installation, internally bypassed
08344.B
M
3
6/T3
2/T1
COM1
RLO1
4/T2
K1
U1(1) U2(4)
V1(2)
V2(5)
W1(3) W2(6)
5/L3
3/L2
1/L1
E
K1 F1
K1
Main contactor (strongly
recommended)
F1
Semiconductor fuses
(optional)
COM1,
RLO1
Relay output A (= Main
Contactor, default)
