Nidec Digistart D3 User Manual

Digistart D3: User Guide 49
Issue: G

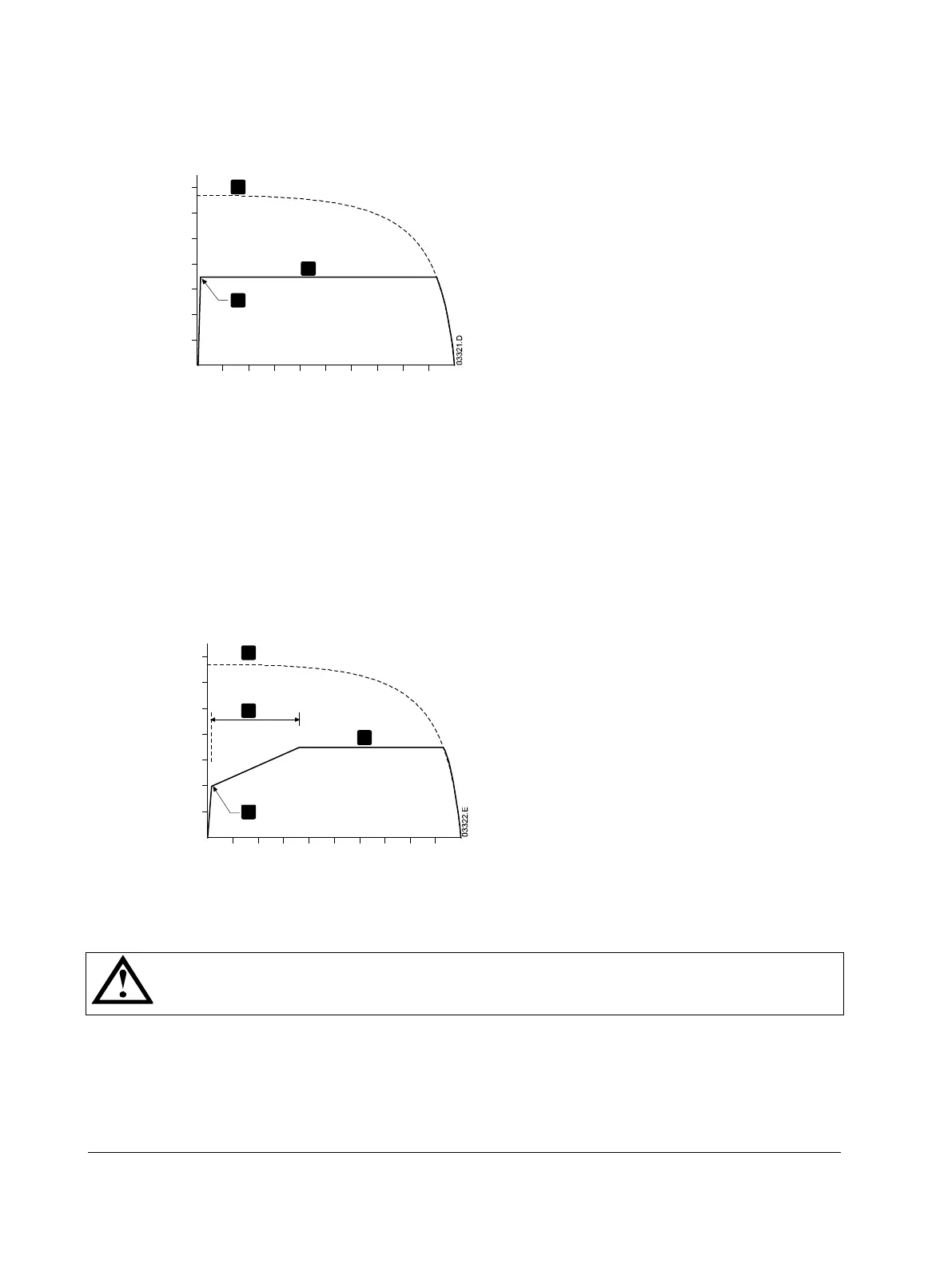

7.2.1 Constant Current
Constant current is the traditional form of soft starting, which raises the current from zero to a specified level and
keeps the current stable at that level until the motor has accelerated.
Constant current starting is ideal for applications where the start current must be kept below a particular level.
Current
(%motor full load current)
700%
600%
500%
300%
100%
400%
200%
10% 20% 30% 40% 50% 60% 70% 80% 90% 100%
1
3
2
1: Initial Current (Pr 2C)
2: Current Limit (Pr 2B)
3: Full voltage current
Rotor speed (% full speed)
7.2.2 Current Ramp
Current ramp soft starting raises the current from a specified starting level (1) to a maximum limit (3), over an
extended period of time (2).
Current ramp starting can be useful for applications where:
• the load can vary between starts (for example a conveyor which may start loaded or unloaded). Set the
initial current (Pr 2C) to a level that will start the motor with a light load, and the current limit (Pr 2B) to a
level that will start the motor with a heavy load.
• the load breaks away easily, but starting time needs to be extended (for example a centrifugal pump where
pipeline pressure needs to build up slowly).
• the electricity supply is limited (for example a generator set), and a slower application of load will allow
greater time for the supply to respond.
Current
(%motor full load current)
700%
600%
500%
300%
100%
400%
200%
1
4
3
2
1: Initial Current (Pr 2C)
2: Start Ramp Time (Pr 2D)
3: Current Limit (Pr 2B)
4: Full voltage current
Time
7.2.3 Adaptive Control for Starting
In an adaptive control soft start, the Digistart D3 adjusts the current in order to start the motor within a specified time
and using a selected acceleration profile.
CAUTION
Adaptive Control cannot start the motor faster than a direct on-line (DOL) start. If the start ramp time (Pr
2D) is shorter than the motor's DOL start time, starting current may reach DOL levels.
Every application has a particular starting profile, based on characteristics of the load and the motor. Adaptive Control
offers three different starting profiles, to suit the requirements of different applications. Selecting a profile that
matches the inherent profile of the application can help smooth out acceleration across the full start time. Selecting a
dramatically different Adaptive Control profile can somewhat neutralise the inherent profile.
The Digistart D3 monitors the motor's performance during each start, to improve control for future soft starts.
