Nidec Digitax HD M751 Base - Page 15

Safety information Product information Mechanical installation Electrical installation Multi axis system design Technical data
Digitax HD M75X Series Installation and Technical Guide 15
Issue Number: 5
2.8.2 Compatible option modules
All standard option modules are color-coded in order to make identification easy. All modules have an identification label on top of the module.
Standard option modules can be installed to any of the available option slots on the drive. The following tables shows the color-code key and gives
further details on their function.
* Additional SI option mounting kit required when connecting option modules where not already fitted.
9500-1049 Compact brake resistor kit, 70 50W (Drive mountable)
1220-2201 External brake resistor - DBR 100 W, 20 
1220-2401 External brake resistor - DBR 100 W, 40 
1220-2801 External brake resistor - DBR 100 W, 80 
Option Part number Description

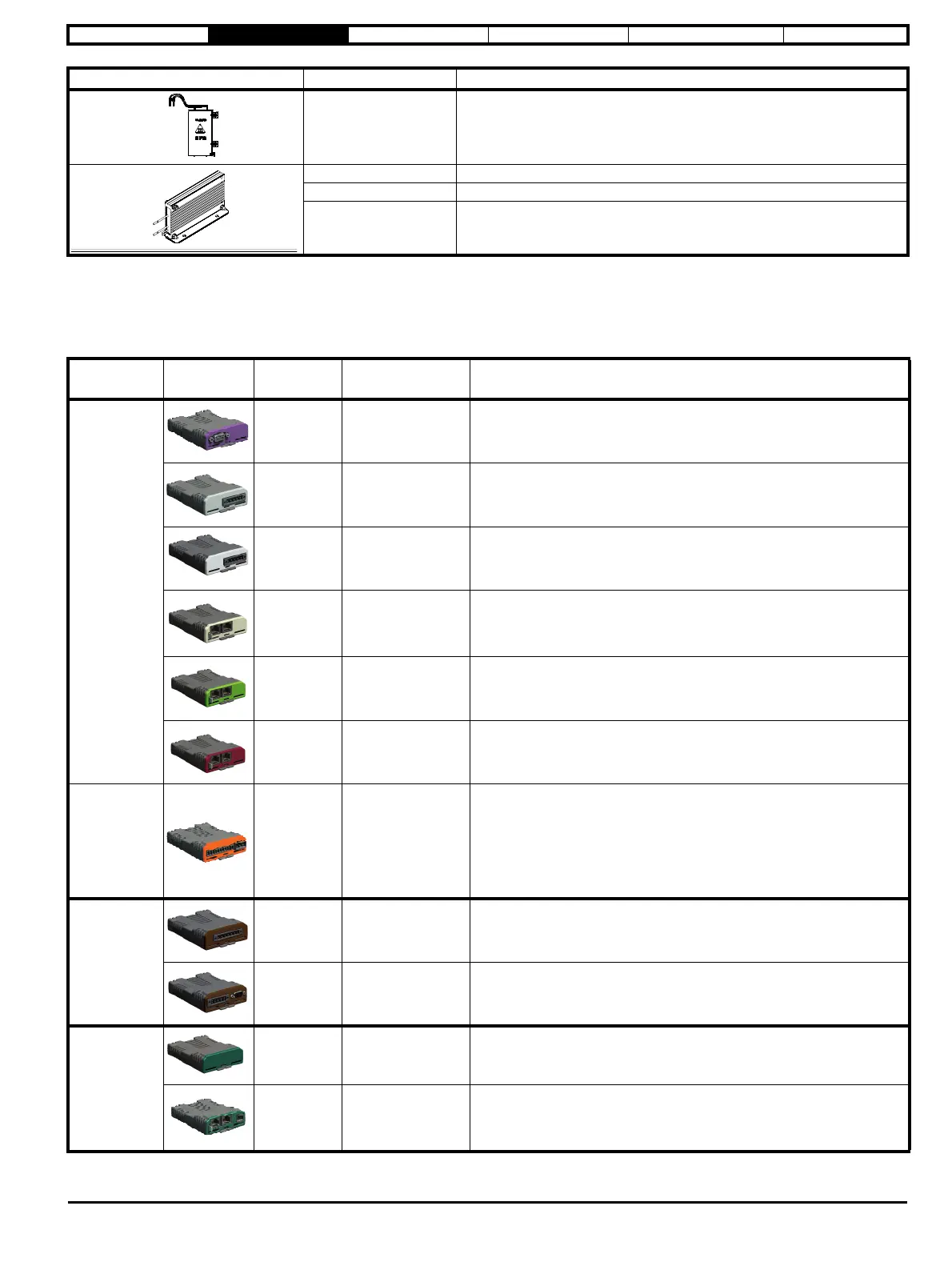

Table 2-5 Option module identification
Type
Option
module
*
Color Name Further Details
Fieldbus
Purple SI-PROFIBUS
PROFIBUS option
PROFIBUS adapter for communications with the drive
Medium Grey SI-DeviceNet
DeviceNet option
DeviceNet adapter for communications with the drive
Light Grey SI-CANopen
CANopen option
CANopen adapter for communications with the drive
Beige SI-Ethernet
External Ethernet module that supports EtherNet/IP, Modbus TCP/IP and
RTMoE. The module can be used to provide high speed drive access, global
connectivity and integration with IT network technologies, such as wireless
networking
Yellow Green SI-PROFINET V2
PROFINET V2 option
PROFINET V2 adapter for communications with the drive
Note: PROFINET V2 replaces PROFINET RT.
Brown Red SI-EtherCAT
EtherCAT option
EtherCAT adapter for communications with the drive
Automation
(I/O expansion)
Orange SI-I/O
Extended I/O
Increases the I/O capability by adding the following combinations:
• Digital I/O
• Digital Inputs
• Analog Inputs (differential or single ended)
• Analog Output
• Relays
Feedback
Light Brown SI-Encoder Incremental encoder input interface module.
Dark Brown SI-Universal Encoder
Additional combined encoder input and output interface supporting
Incremental, SinCos, HIPERFACE, EnDAT and SSI encoders.
Automation
(Applications)
Moss Green MCi200
Machine Control Studio Compatible Applications Processor
2nd processor for running pre-defined and/or customer created application
software.
Moss Green MCi210
Machine Control Studio Compatible Applications Processor (with
Ethernet communications)
2nd processor for running pre-defined and/or customer created application
software with Ethernet communications.
