5.7 Multi axis system installation
Direct side by side mounting is permissible between drives to minimize space requirement and allow for easy connectivity.
5.7.1 Multiple drive mounting

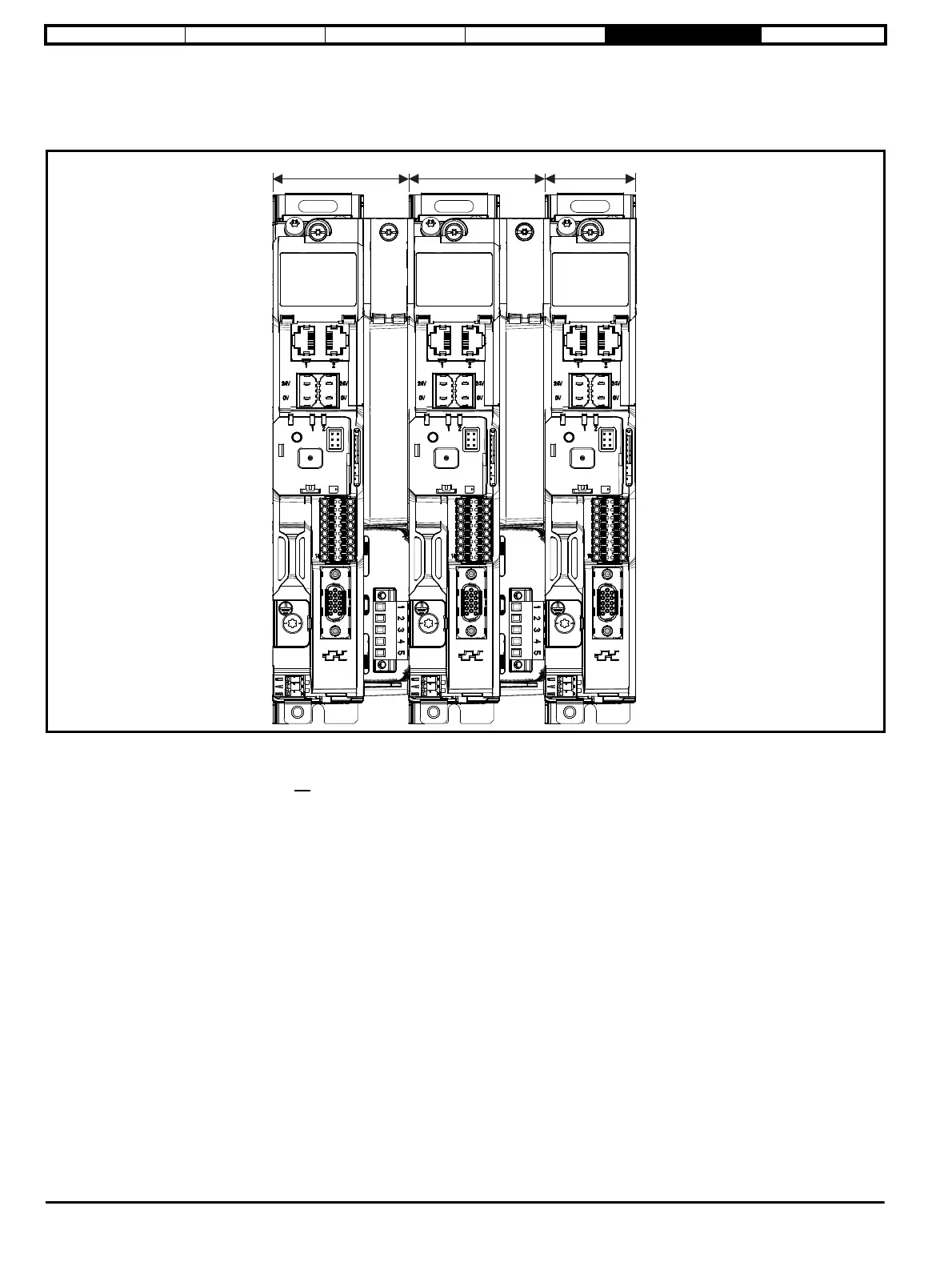

Figure 5-9 Multiple drive mounting
* Allow for up to +0.5 mm mechanical tolerance for each drive with option module support installed.
Mounting screws
For multi axis (side by side installation) with no
DIN rail attachment, one M5 screw is required in the top mounting position and one in the lower
mounting position for each drive.
62 mm (2.44 in)* 62 mm (2.44 in)*
40 mm (1.58 in)
