3.14 External EMC filter
3.14.1 Optional external EMC filter dimensions

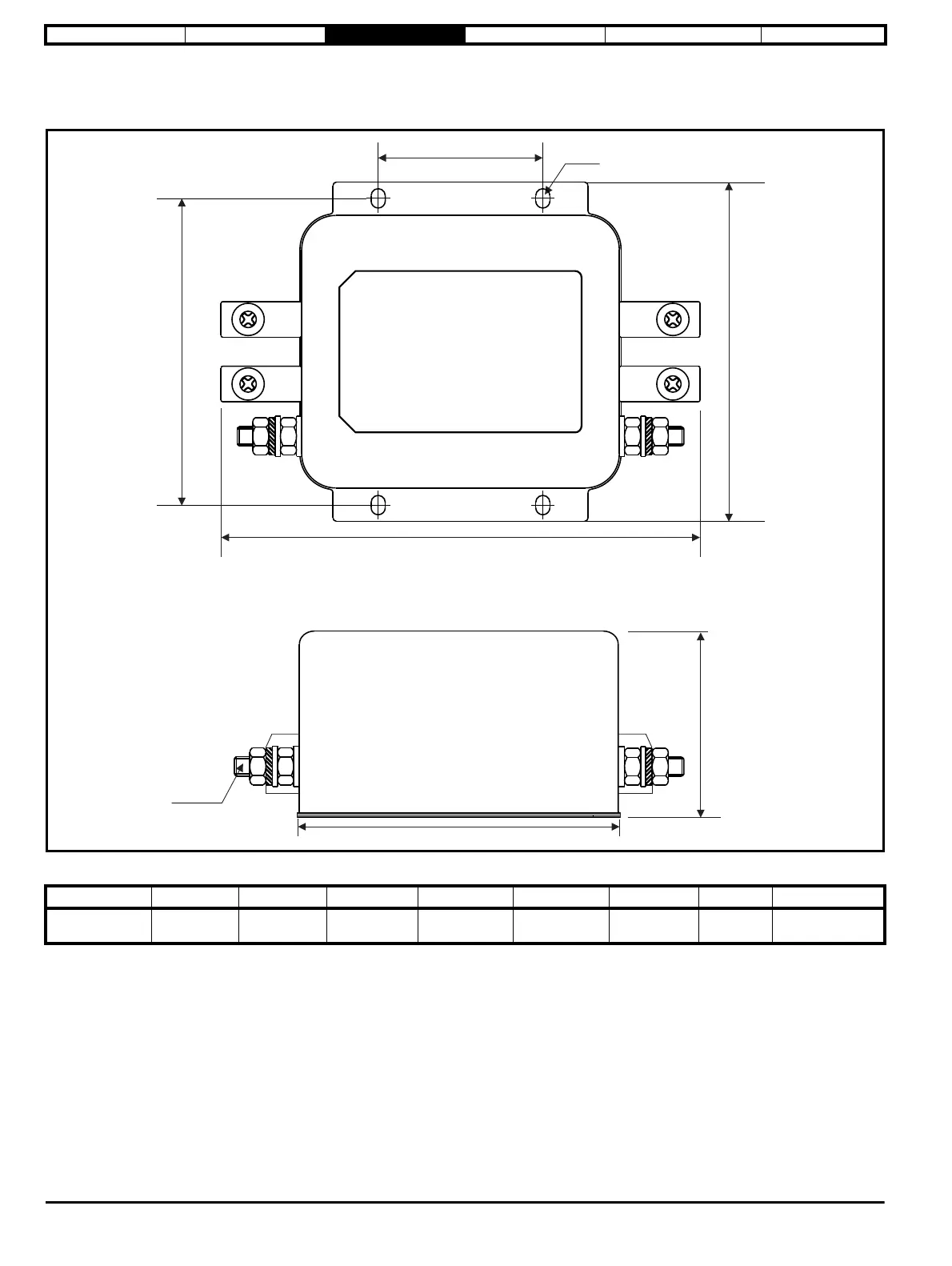

Figure 3-23 External EMC filter dimensions (4200-3503)
Table 3-3 External EMC filter dimensions (4200-3503)
Part number A B C D H W V Y
4200-3503
99.5 mm
(3.91 in)
51 mm
(2.01 in)
95 mm
(3.74 in)
57.6 mm
(2.27 in)
149.5 mm
(5.89 in)
105 mm
(4.13 in)
M6
6 mm x 4.4 mm
(0.24 x 0.17 in)
B
W
C
H
A
D
V
Y
