Safety information Product information Mechanical installation Electrical installation Multi axis system design Technical data
12 Digitax HD M75X Series Installation and Technical Guide
Issue Number: 5
2.6 Drive features

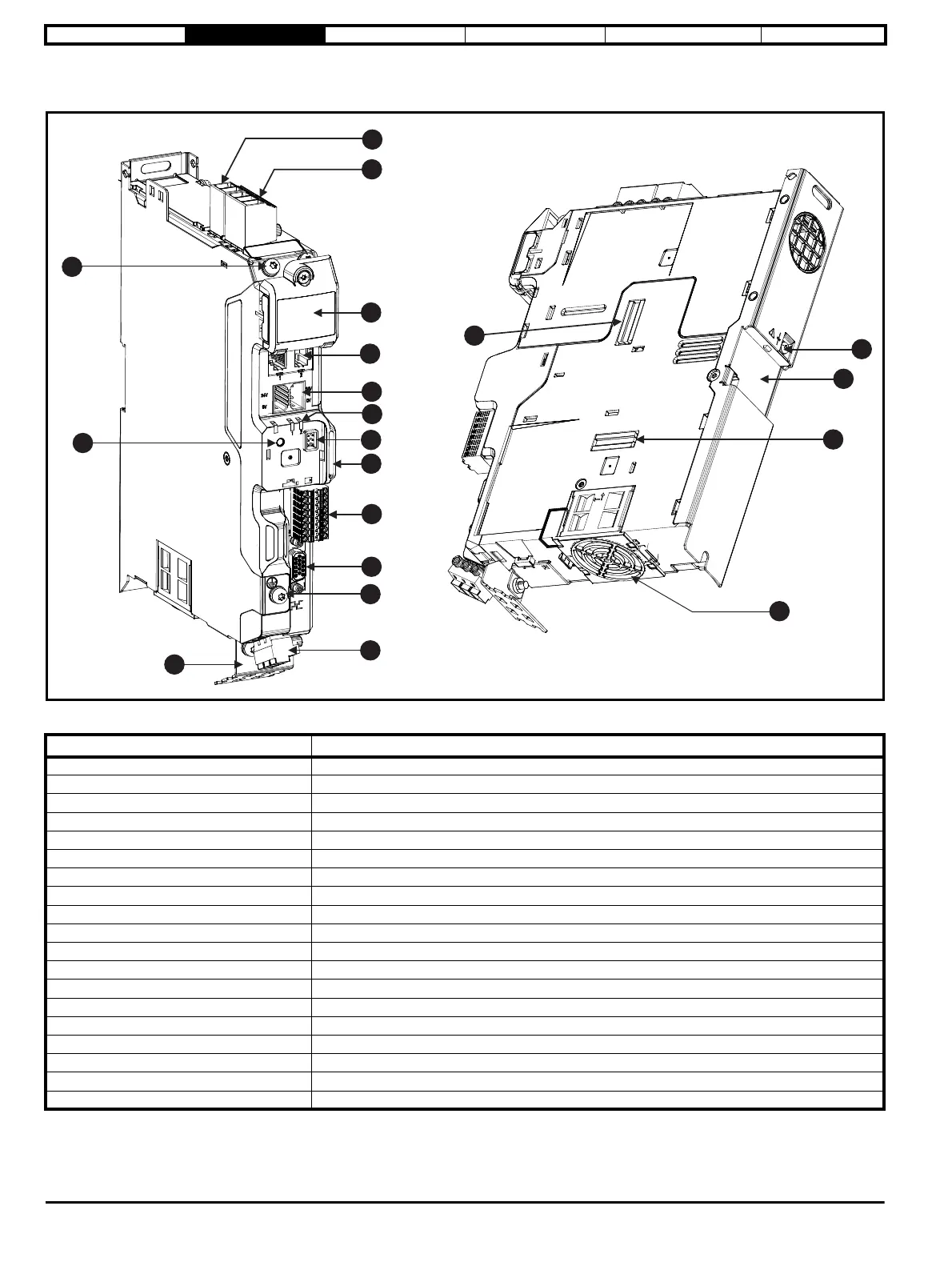

Figure 2-3 Features of the drive (Frame 1 illustrated)
Table 2-2 Key to features of the drive
* Additional mounting frame required when connecting option modules where not already installed.
1
2
3
7
5
6
8
9
10
11
12
14
13
15
16
17
18
19
4
12
Number Description
1 Braking terminals
2 AC supply terminals
3 DC bus terminal cover
4 Communication port connections
5 External 24 V supply terminals
6 Status and communication LEDS
7 Reset
8 Display connection
9 SD card slot
10 Control and holding brake terminals
11 Position feedback connection
12 Ground screw
13 Motor terminals
14 Cable screen bracket
15 Option module slot 1 cover*
16 Internal EMC filter screw (frame 1 and 2)
17 DIN rail alignment
18 Option module slot 2 cover*
19 Cooling fan
