Digitax HD M75X Series Installation and Technical Guide 35
Issue Number: 5

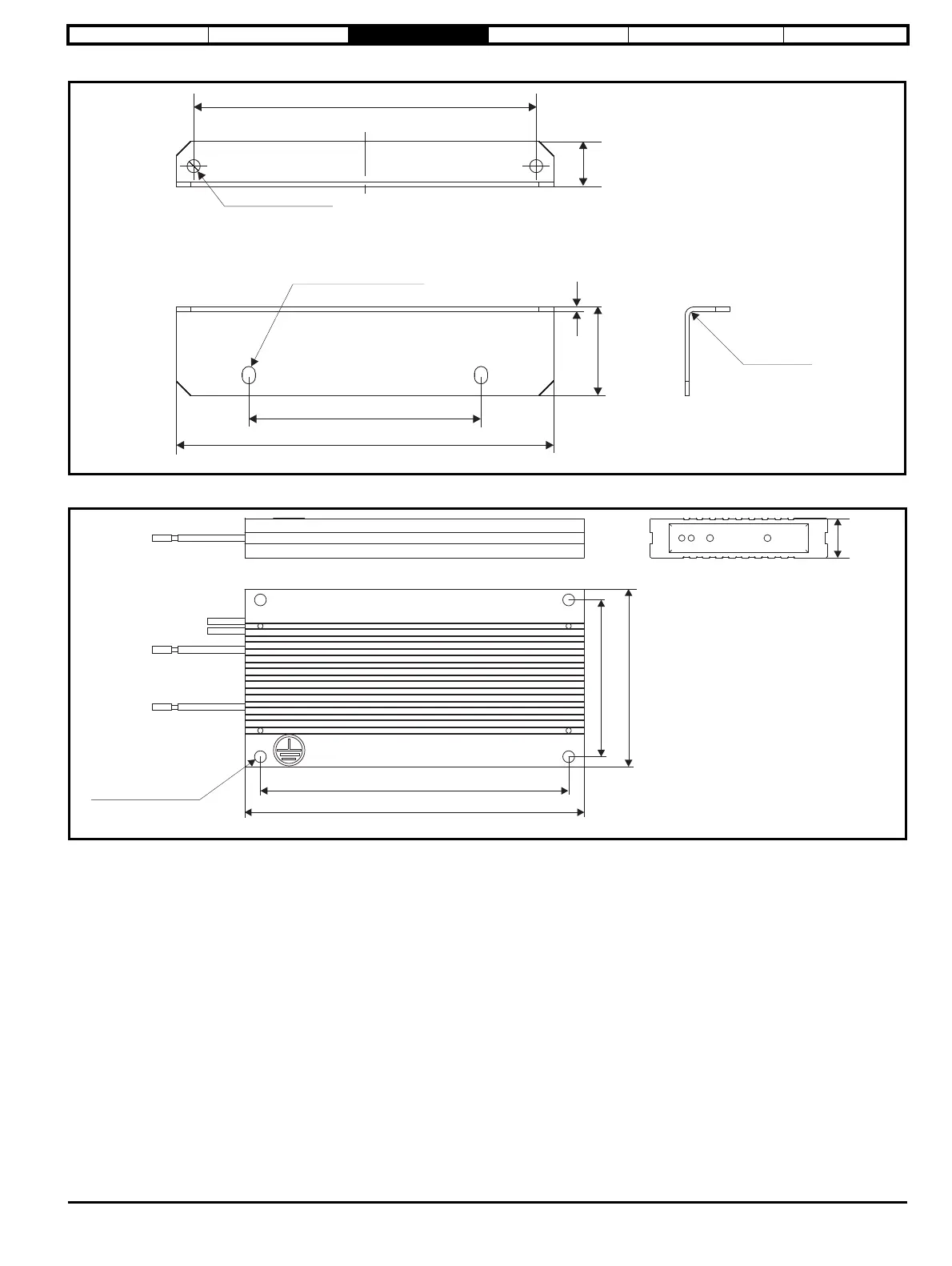

Figure 3-21 Mounting bracket dimensions
Figure 3-22 Brake resistor dimensions
118mm(4.65 in)
15.5mm
(0.61 in)
Æ 4.5mm(0.18 in)
x2holes
1.5mm
(0.06 in)
30.5mm
(1.20 in)
80 mm (3.15 in)
130 mm (5.12 in)
Æ 4.5x6mm(0.18 in)
x2holes
R = 1.5mm
(0.06)
60 mm (2.36 in)
68 mm (2.68 in)
118 mm (4.65 in)
130 mm (5.12 in)
Æ 4.5mm(0.18 in)
x4holes
15 mm
(0.59 in)
