5.7.2 DIN rail alignment
DIN rail assembly is recommended with multi axis systems to align the DC power and ground busbar links, 24 Vdc link and communication link.
Drives may be hooked onto the DIN rail, a recess is provided at the rear of the drive for this function. DIN rail should meet the following designation:
Top hat rail EN 50022-35x7.5.

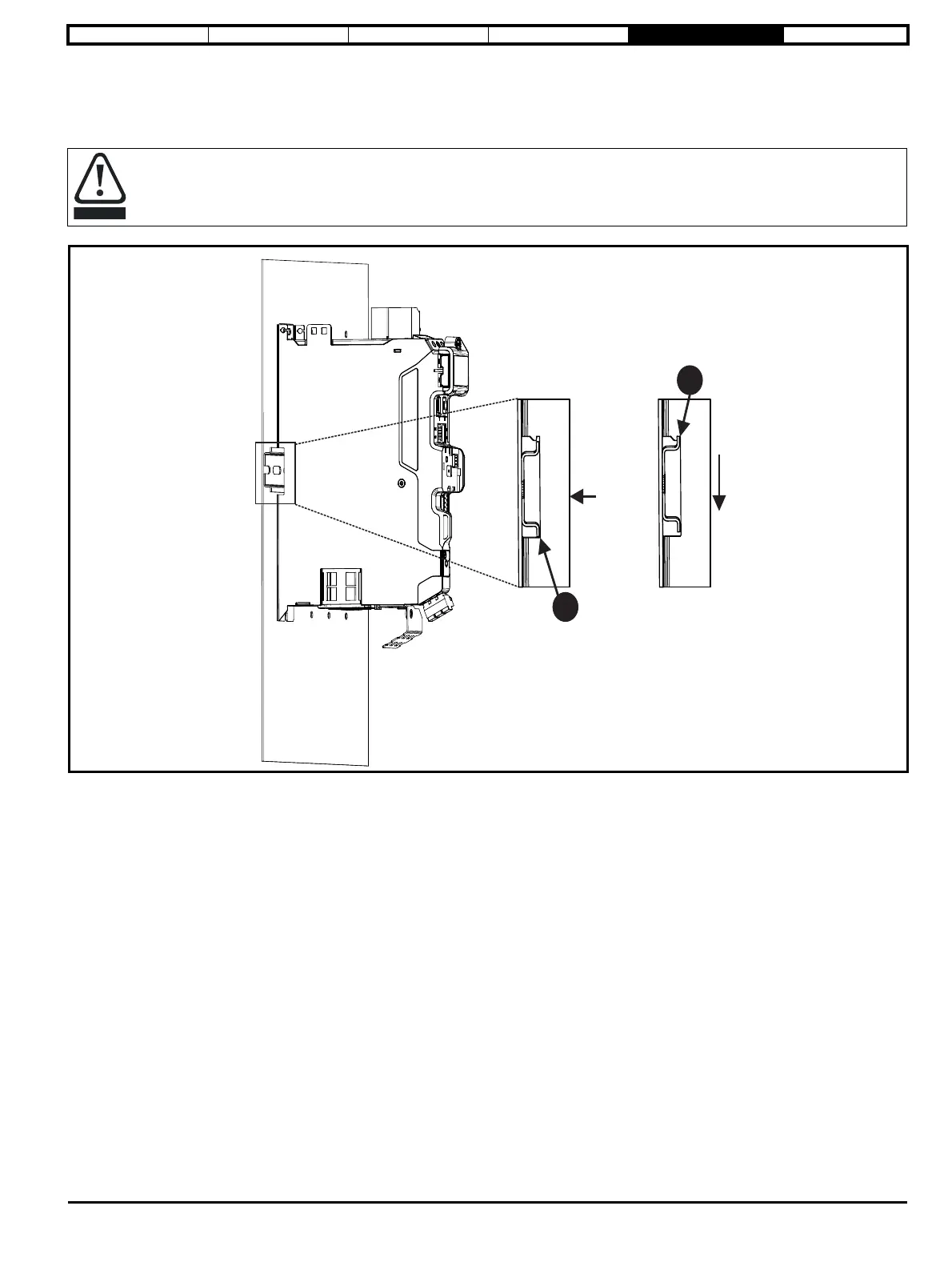

Figure 5-10 DIN rail alignment
• Fit the drive over the DIN rail with the bottom rail flush against the lower edge of the recess at the rear of the drive (1).
• Slide the drive down so that the top rail sits into the channel at the upper edge of the recess at the rear of the drive (2).
Mounting screws
For multi axis (side by side installation) with DIN rail attachment one M5 screw in the top mounting position is sufficient to fix the drive to the
backplate.
The DIN rail attachment is for alignment only and must not be used alone for drive mounting. Refer to Section 5.7.3 Drive mounting
dimensions with DIN rail alignment.
