5.7.3 Drive mounting dimensions with DIN rail alignment
Directly side by side mounting is permissible with no space required between drives.

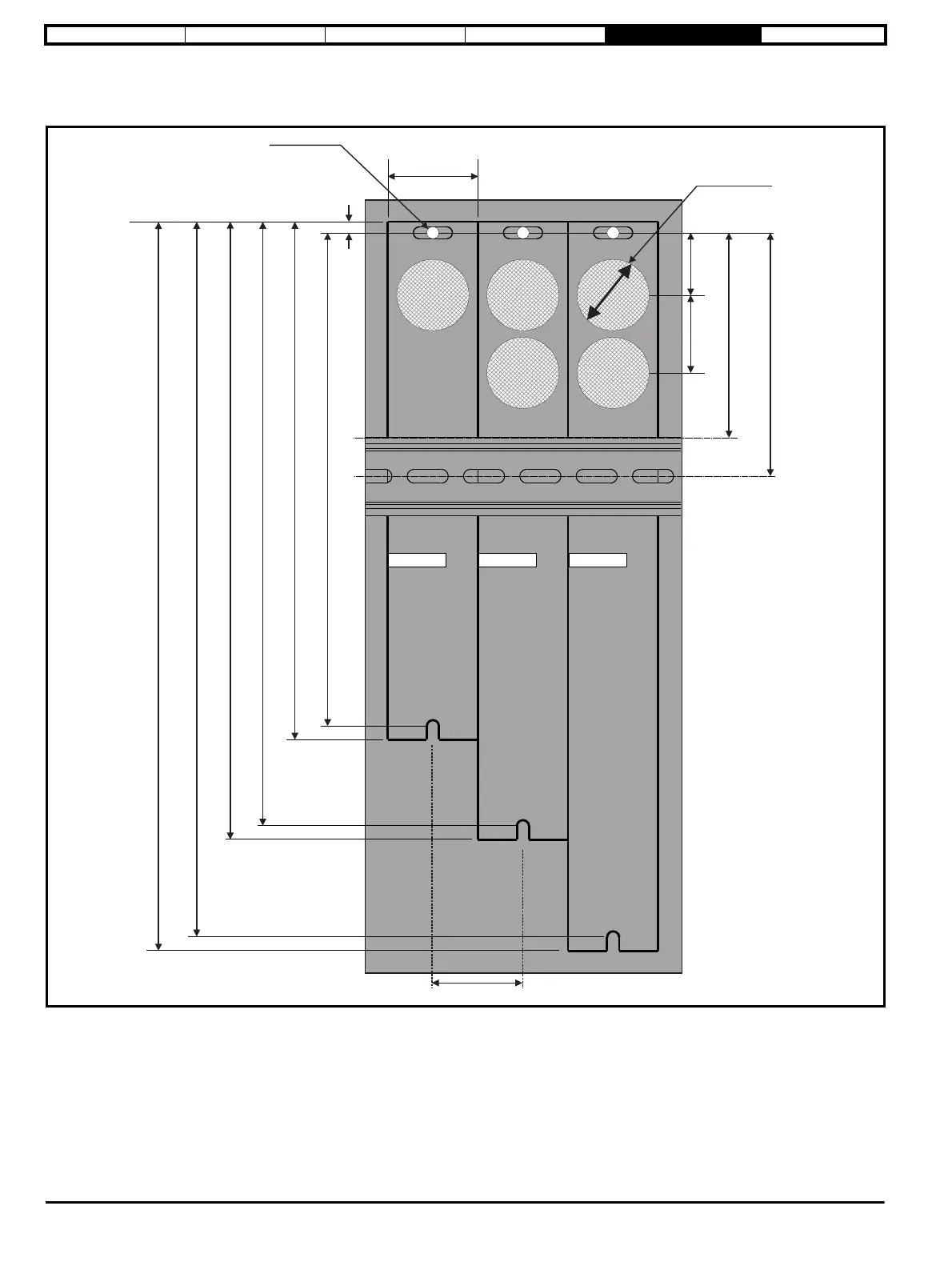

Figure 5-11 Drive mounting dimensions with DIN rail alignment (no option module support)
* Cut outs only required for rear venting; refer to Section 3.9 Rear venting.
40 mm (1.58 in)
Æ5.4 mm (0.21 in)
(M5)
Æ32 mm (1.26 in)
*
28 mm (1.10 in)
35 mm (1.38 in)
5.0 mm
(0.20 in)
222 mm (8.74 in)
233 mm (9.17 in)
272 mm (10.71 in)
278 mm (10.95 in)
322 mm (12.68 in)
328 mm (12.91 in)
92 mm (3.62 in)
109 mm (4.29 in)
40 mm (1.58 in)
Frame 1 Frame 2 Frame 3
